Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface
Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface
Sale
Sold out
Pre-order
Regular price
R 379.00
Regular price
Sale price
R 379.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: Raspberry Pi, Arduino
• Material: Electronic components
• Key feature: SPI/I2C interface
• Color/Variant: White
• Intended use: Everyday use
• Category: Consumer Electronics

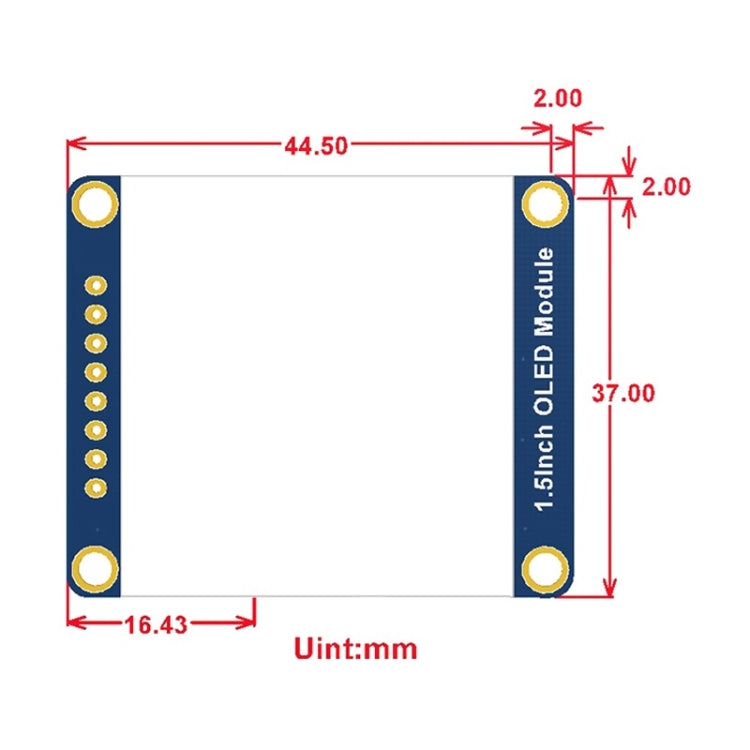

1.5inch OLED display Module, 128x128 pixels, 16 gray scale, SPI/I2C interfaceOverviewThis is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.Features1. 128x128 high resolution2. 16 gray scale, better display effect3. Support SPI or I2C interface, configured via onboard resistor4. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Driver: SSD13272. Interface: SPI / I2C3. Display color: White4. Gray scale: 165. Resolution: 128x128 (most other competitive products are typically 128x64)6. Viewing angle: >160 degree7. Operating voltage: 3.3V / 5V8. Dimension: 44.5 x 37 (mm)Package Contents1. 1.5 inch OLED Module x12. PH2.0 7Pin x1
• Brand: Waveshare
• Compatibility: Raspberry Pi, Arduino
• Material: Electronic components
• Key feature: SPI/I2C interface
• Color/Variant: White
• Intended use: Everyday use
• Category: Consumer Electronics
1.5inch OLED display Module, 128x128 pixels, 16 gray scale, SPI/I2C interfaceOverviewThis is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.Features1. 128x128 high resolution2. 16 gray scale, better display effect3. Support SPI or I2C interface, configured via onboard resistor4. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Driver: SSD13272. Interface: SPI / I2C3. Display color: White4. Gray scale: 165. Resolution: 128x128 (most other competitive products are typically 128x64)6. Viewing angle: >160 degree7. Operating voltage: 3.3V / 5V8. Dimension: 44.5 x 37 (mm)Package Contents1. 1.5 inch OLED Module x12. PH2.0 7Pin x1
