Waveshare

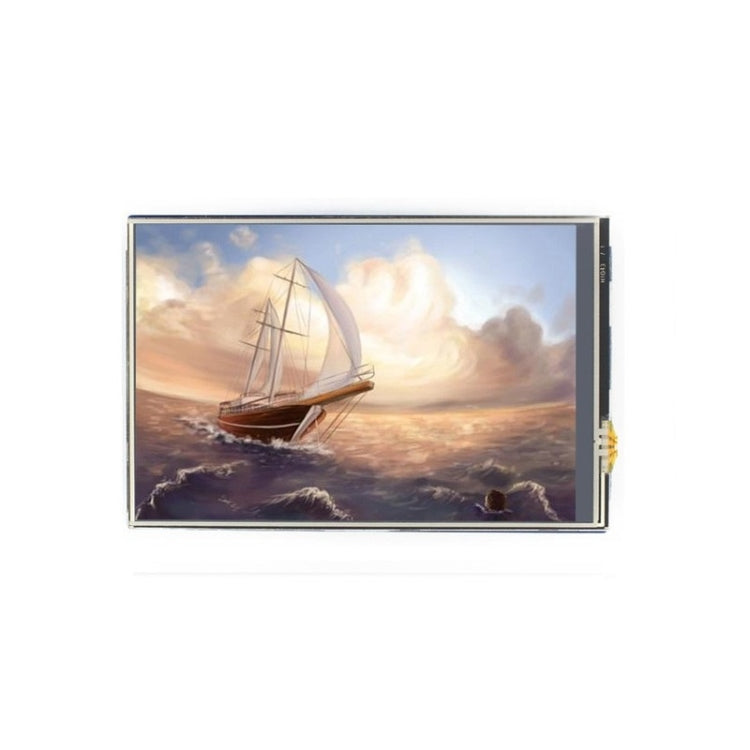

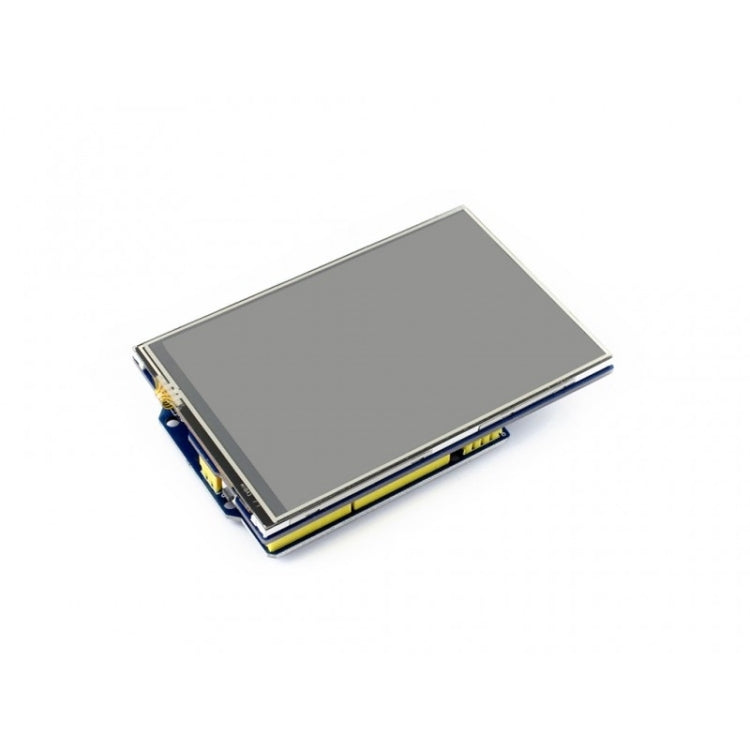

4 inch Touch LCD Shield for Arduino

4 inch Touch LCD Shield for Arduino

سعر عادي R 729.00
سعر عادي سعر البيع R 729.00
أُوكَازيُون نفذ
التوصيل مجاني لجميع الطلبات.

hurry! almost sold out...

ًالشحن مجانا

الشحن مجانا على جميع أوامر . مؤمنة بالكامل.

وقت المناولة 1 - 3 أيام عمل. (يتعين على شركة PMC معالجة طلبك وإخضاع جميع العناصر الخاصة بك لاختبارات مراقبة الجودة الصارمة.)

وقت العبور 7 - 15 يوم عمل.

احصل عليه الآن، وادفع لاحقًا

الدفع باستخدام Mobicred. ما عليك سوى اختيار الدفع Peach >> Mobicred عند الدفع، وسنقوم بشحنه بمجرد الموافقة على الطلب.

ضمان العودة

لأي سبب من الأسباب، إذا لم تكن راضيًا عن طلبك خلال 7 أيام، فيمكنك إعادته إلينا في حالة جديدة واسترداد أموالك مطروحًا منها رسوم الشحن.

الدفع والأمن

تتم معالجة معلومات الدفع الخاصة بك بشكل آمن. نحن لا نقوم بتخزين تفاصيل بطاقة الائتمان ولا يمكننا الوصول إلى معلومات بطاقتك الائتمانية.

ضمان العناصر المفقودة/الخاطئة

إذا استلمت طردًا به عناصر تعبئة ثانوية مفقودة/غير صحيحة، فيرجى الاتصال بنا في غضون 7 أيام من التسليم وتقديم الدليل ذي الصلة. ستقوم شركة PMC بدفع تعويضات بناءً على حالة الضرر.

Features
1. Resistive touch screen TFT LCD, 4inch, 480x320 resolution
2. Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
3. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
4. PWM backlight control, allows to adjust the backlight to a comfortable level
5. Micro SD slot, provides an easy way to store photos for displaying
6. Controlled via SPI, only a few Arduino pins are used
7. Comes with STM32 and Arduino examples, convenient for porting

Key Parameters
1. LCD Type: TFT
2. LCD Interface: SPI
3. LCD Controller: ILI9486
4. Touch Screen Type: Resistive
5. Touch Screen Controller: XPT2046
6. Colors: RGB, 65K colors
7. Resolution: 480x320 (Pixel)
8. Aspect Ratio: 8:5
9. I/O Voltage: 3.3V/5V

Wiki : www.waveshare.com/wiki/4inch_TFT_Touch_Shield
