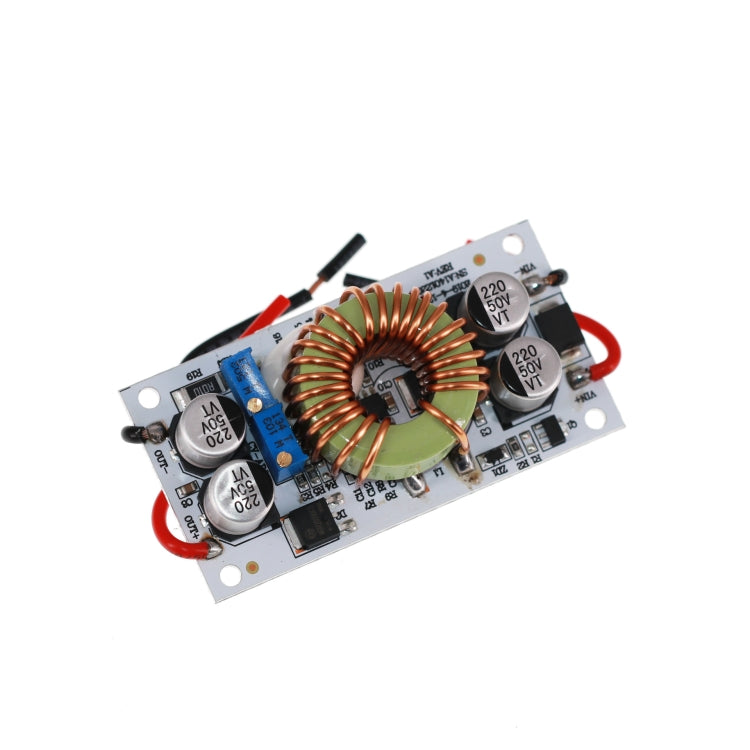

The 250W 10A Aluminum Substrate Power Supply LED Boost Constant Current Module is a non-isolated boost module designed for DIY power supply applications. It can be used to create a regulated power supply, power electronic devices, or stabilize solar panel voltage.
- Product Type: Modules Expansions Accessories
- Material: Aluminum
- Compatibility: LED Boost Constant Current Module
- Input Voltage: DC 8.5V - 48V
- Input Current: 10A (maximum); recommend heat dissipation if exceeding 8A
- Quiescent Current: 10mA (increases with higher output voltage)
- Output Voltage: 10V - 50V (continuously adjustable)
- Constant Current Range: 0.2A - 8A
- Operating Temperature: -40°C to +85°C
- Working Frequency: 150KHz
- Conversion Efficiency: up to 96%
- Overcurrent Protection: Yes
- Input Reverse Connection Protection: Yes
- Installation Method: 4 x 3mm screw holes
- Wiring Method: Wiring output
- Module Dimensions: 70mm (L) x 36mm (W) x 13mm (H)
- Weight: 50 grams
- Applications: DIY regulated power supply, powering electronic equipment, car power supply, high-power notebook mobile power supply, solar panel voltage stabilization, battery charging
