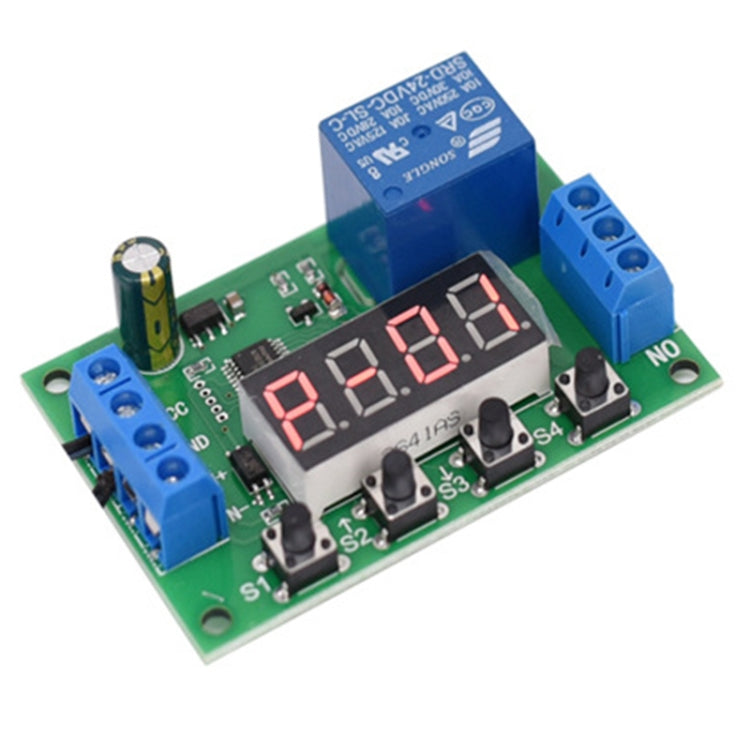

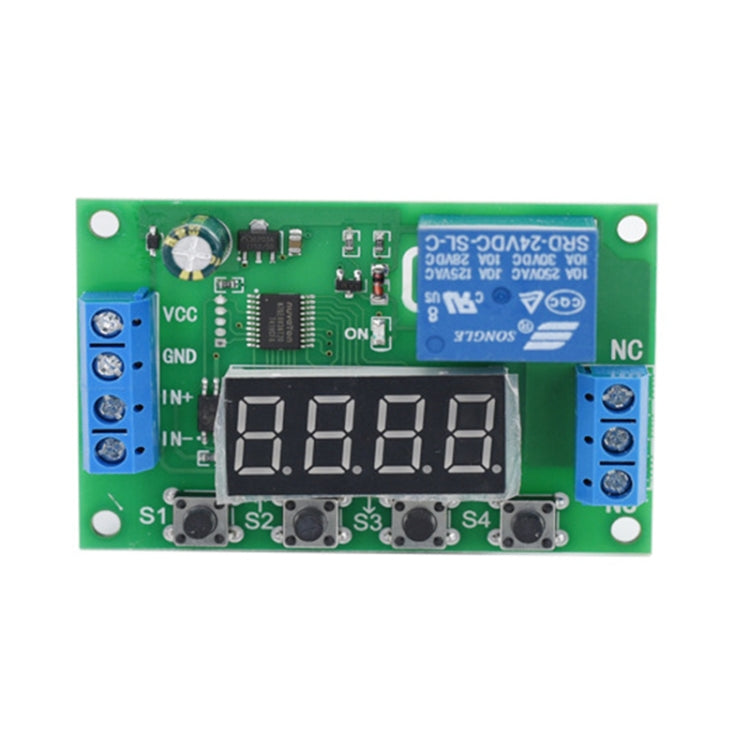

24V Time Relay Module Trigger OFF / ON Switch Cycle Timing Relay Board

• Product type: Relay Module
• Compatibility: 24V systems
• Material: Not specified
• Key feature: Multifunctional with various working modes
• Color/Variant: Not specified
• Intended use: Automatic control applications
• Category: Arduino & SCM Supplies

Specifications
1. Supply voltage: DC 24V
2. Trigger terminal voltage: DC 5~30V (can also be triggered by button)
3. Relay control current: 10A

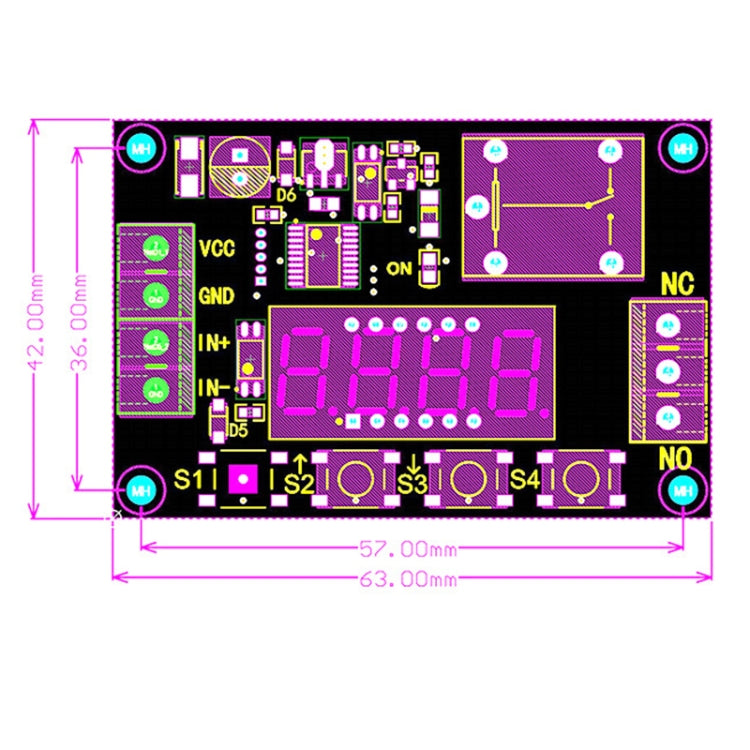

4. Module size: 63 x 42 x 20mm (length, width and height)

About The Product
1. Multifunctional time relay module, a variety of working voltages are optional, DC 24V

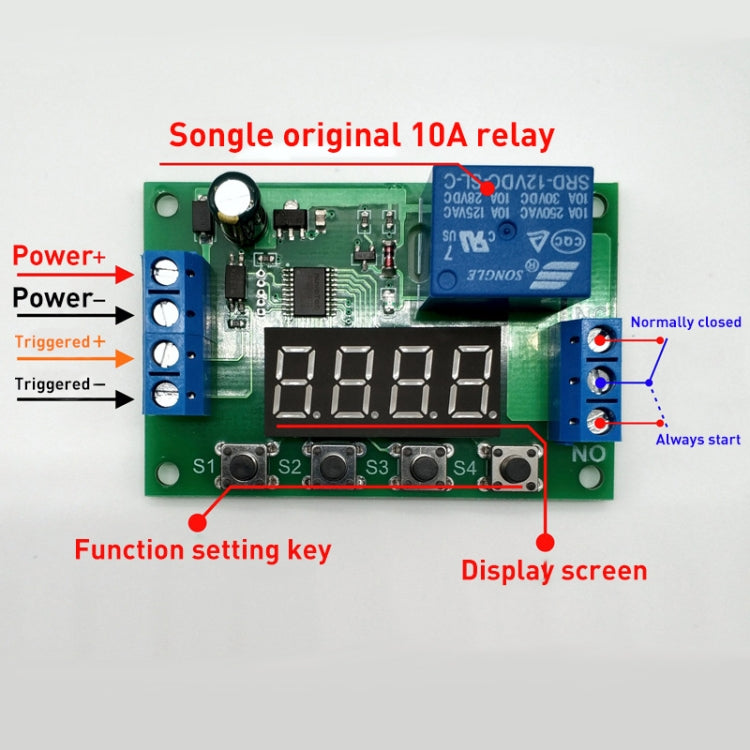

2. The output terminal is isolated from the circuit by a relay, which can control low-voltage electrical appliances and 220V lines, with a control capacity of up to 10A.
3. There are as many as 27 working modes to meet various testing and automatic control applications, and the delay time is adjustable from 0.01 seconds to 999 minutes.
4. The trigger port can be triggered by a voltage signal, or it can be triggered by a button.

Point Position
1. Ax.xx decimal point is in the hundreds place, the time range is 0.01~9.99 seconds
2. Axx.x decimal point is in ten place, time range is 0.1~99.9 seconds
3. Axxx. The decimal point is in the one place, the time range is 1~999 seconds
4. Axxx has no decimal point, the time range is 1~999 minutes
5. Turn off the display: In the non-setting state, press the S4 key to turn off the display, and press it again to turn it on again.
