Description

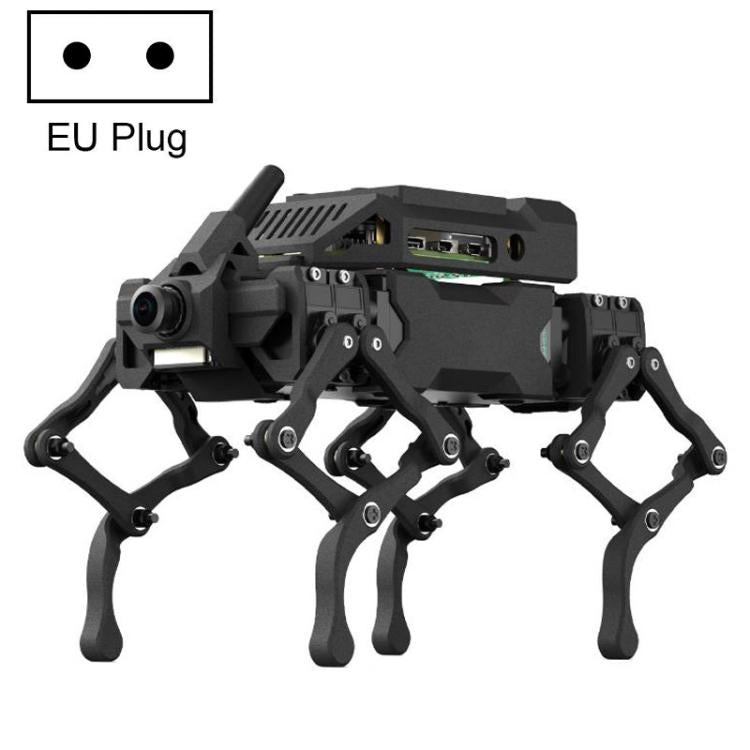

The Waveshare WAVEGO Pro 12-DOF Bionic Dog-Like Robot is designed for educational and research purposes. It can perform various actions such as walking, jumping, and self-balancing, making it suitable for robotics enthusiasts and developers.
- Degrees of freedom: 12
- Dimensions (Standing): Length 218mm, Width 116mm, Height 152mm
- Dimensions (Lying down): Length 228mm, Width 116mm, Height 127mm
- Total weight: 465g (Basic), 554g (EX / PI5 kit)
- Servo specifications: 2.3kg.cm stall torque, 0.1sec/60° no-load speed, 6V working voltage
- Operating system: FreeRTOS + Raspberry Pi OS
- Supported actions: handshake, stand, slow squat, diagonal gait, jump, self-balancing
- Maximum load capacity: 300g (Basic), 200g (EX / PI5 kit)
- Processor: Xtensa LX6 dual-core 240 MHz
- Memory: 520KB SRAM + 8MB Flash memory
- Wi-Fi standard: 802.11b/g/n
- Bluetooth standard: Bluetooth 4.2
- Battery type: 18650 lithium-ion, 2000mAh capacity, 7V - 8.4V voltage
- Power supply output: 5V for powering other devices
- Includes: WAVEGO Pro (pre-assembled), accessory kit, power supply, packaging box
- EX package includes Raspberry Pi expansion pack
- Pi 5 kit includes built-in 4GB Raspberry Pi 5
