Waveshare

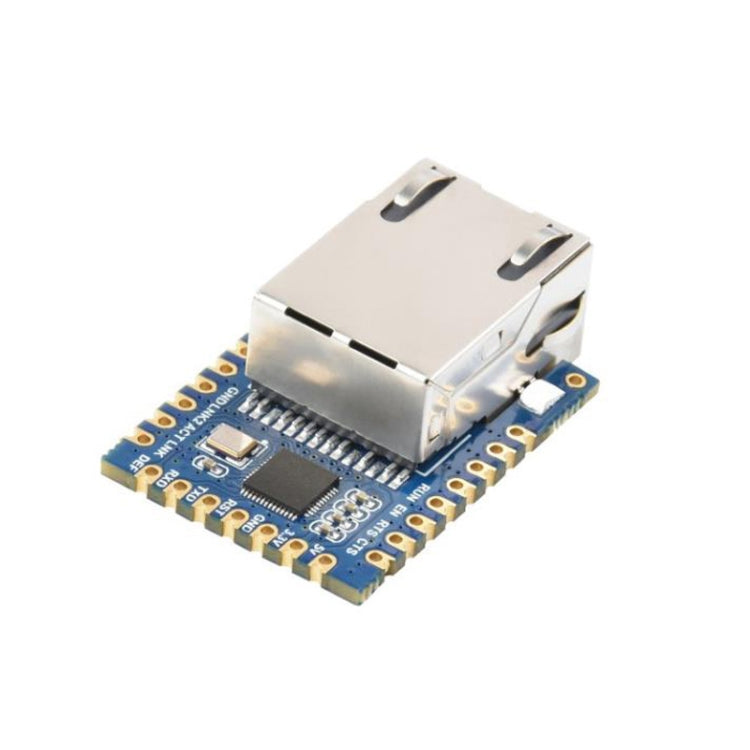

Waveshare UART TO ETH (B) TTL UART To Ethernet Mini Module

Name: Waveshare UART TO ETH (B) TTL UART To Ethernet Mini Module
Brand: Waveshare
SKU: TBD04144799
Price: 399.00 ZAR
Availability: InStock

R 399.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Basic function: realize the bi-directional transparent transmission function of serial port and Ethernet interface
2. Ethernet: common network port
3. Isolation protection: without isolation
4. Serial port: TTL
5. Power supply: DC 3.3V/5V
6. Power supply method: row of pins / pads
7. Application scenario: can be used as serial server, Modbus gateway, MQTT gateway, suitable for data acquisition, IoT gateway, security IoT and smart meter monitoring, etc.

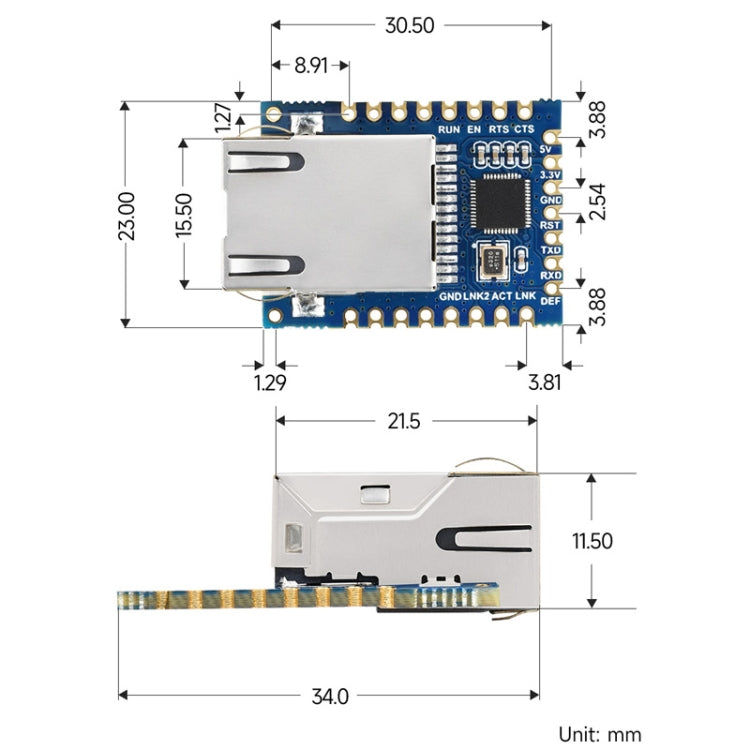

8. Size: about 34 x 23 x 11.5mm

Serial port parameters:
1. Baud rate: 300-115200bps
2. Data bits: 5-9 bits
3. Flow control: with flow control

Software:
1. Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
2. Configuration mode: host computer configuration, WEB browser, device management function library
3. Communication mode: TCP/IP direct communication, virtual serial port mode
4. Data transmission mode: TCP Server, TCP Client, UDP Group, UDP
5. Modbus gateway: Modbus TCP to RTU
6. Other functions: custom heartbeat packets/registration packets, custom web pages, etc.

Features:

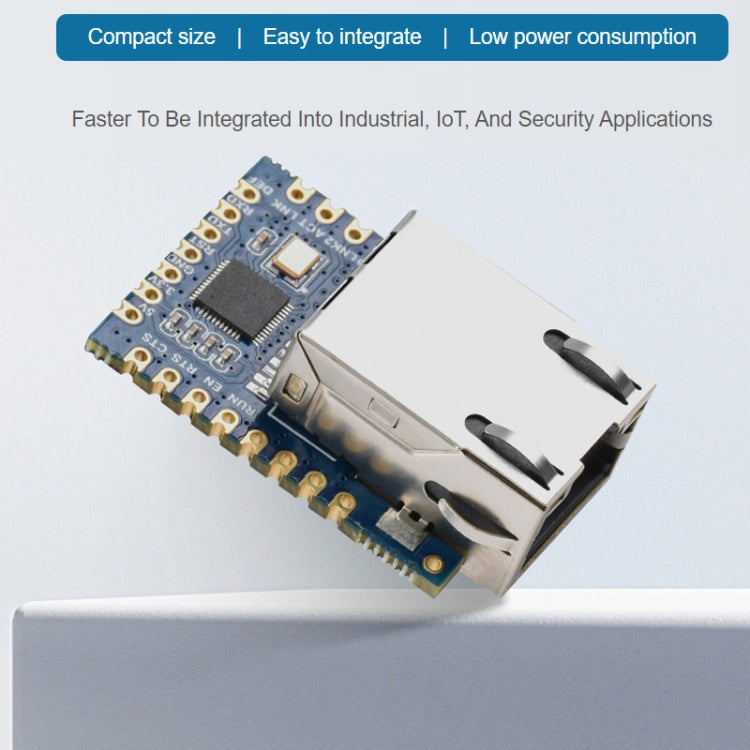

1. Compact size, easy integration, low power consumption
2. Can be quickly embedded into industrial, IoT and security and other areas of product applications

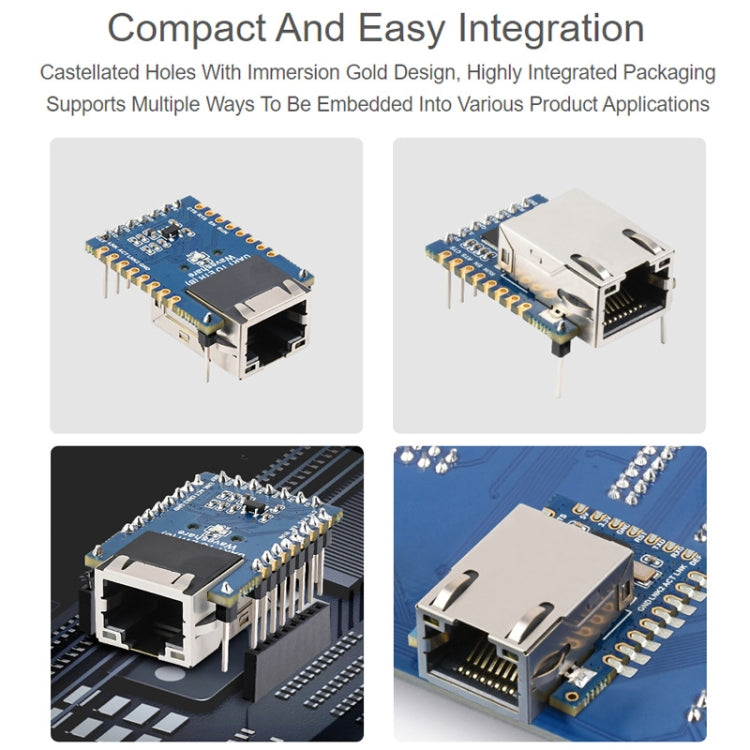

3. Designed with postage stamp hole sinker process, highly integrated package, supports multiple ways to embed into various product applications

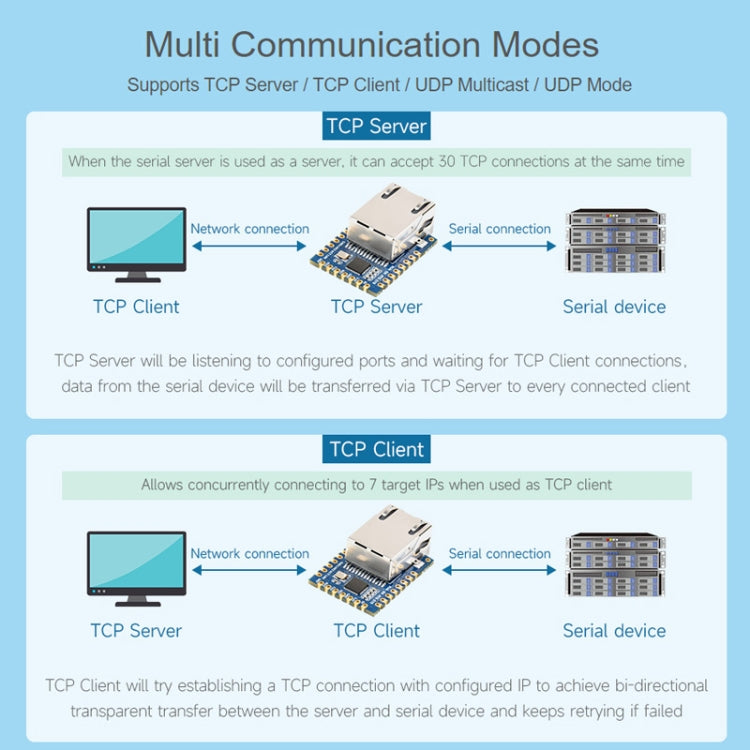

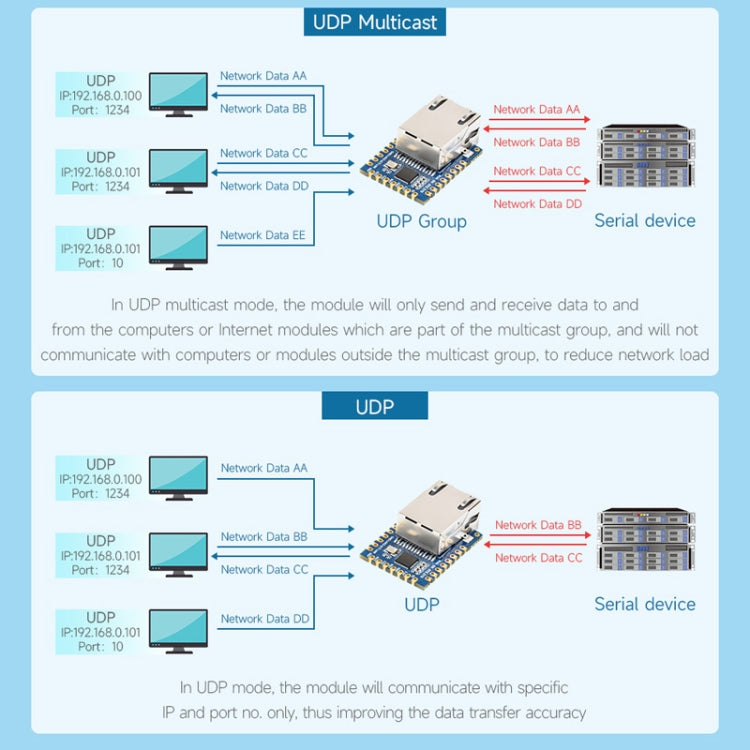

4. Support a variety of communication modes, support TCP server / TCP client / UDP multicast / UDP mode

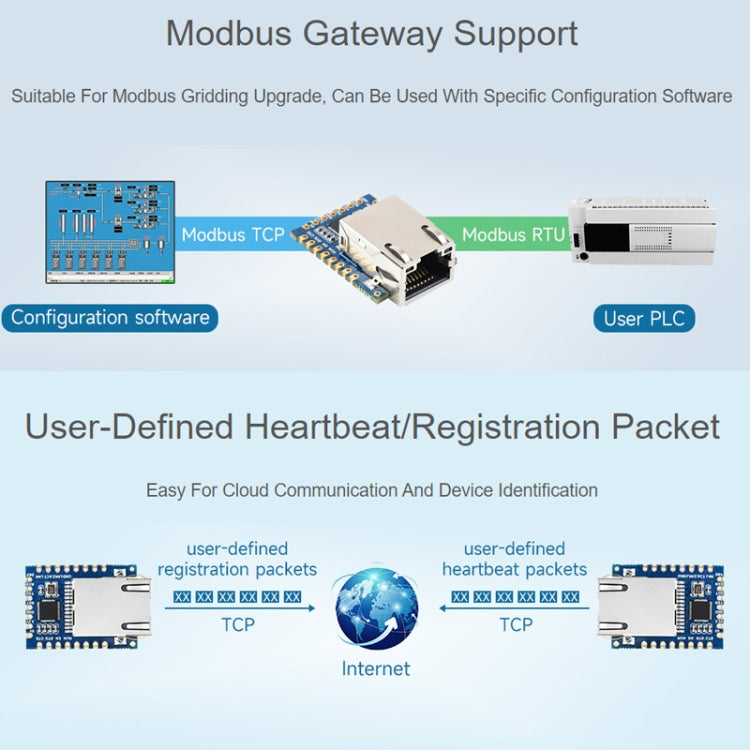

5. Support Modbus gateway, suitable for Modbus network upgrade, can cooperate with 3D force control modal components
6. Customized heartbeat packet and registration packet, convenient for communication and device identification with the cloud
7. Support NTP protocol, get network time for serial output or for protocol content upload
8. Support web page and upper computer configuration

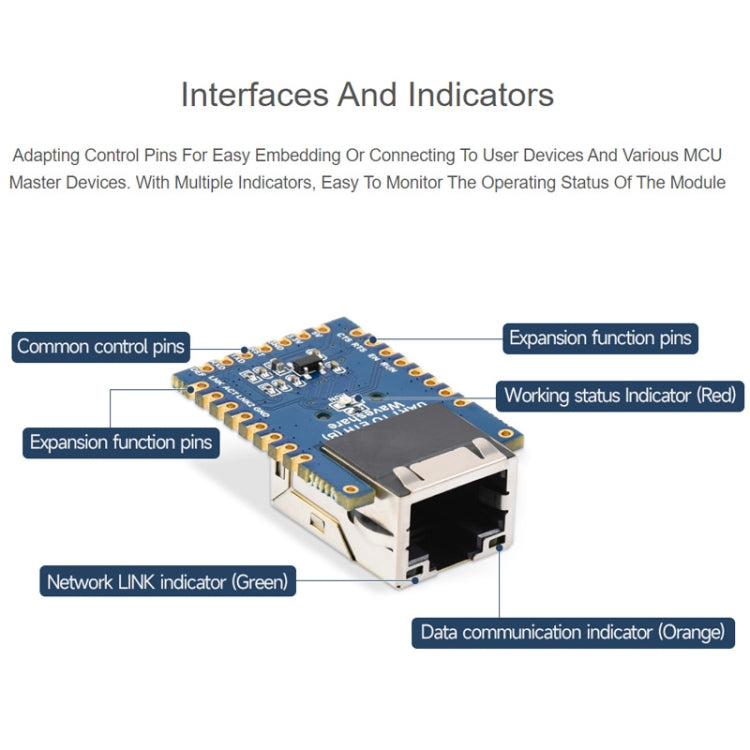

9. Pin out control pins, easy to embed or connect to user devices and various MCU master control devices
10. With a variety of indicators, easy to view the working status of the module
