WAVESHARE SIM8262E-M2 5G For Jetson Orin Module, Supports 5G NSA And SA Networking, GNSS Positioning
WAVESHARE SIM8262E-M2 5G For Jetson Orin Module, Supports 5G NSA And SA Networking, GNSS Positioning
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description

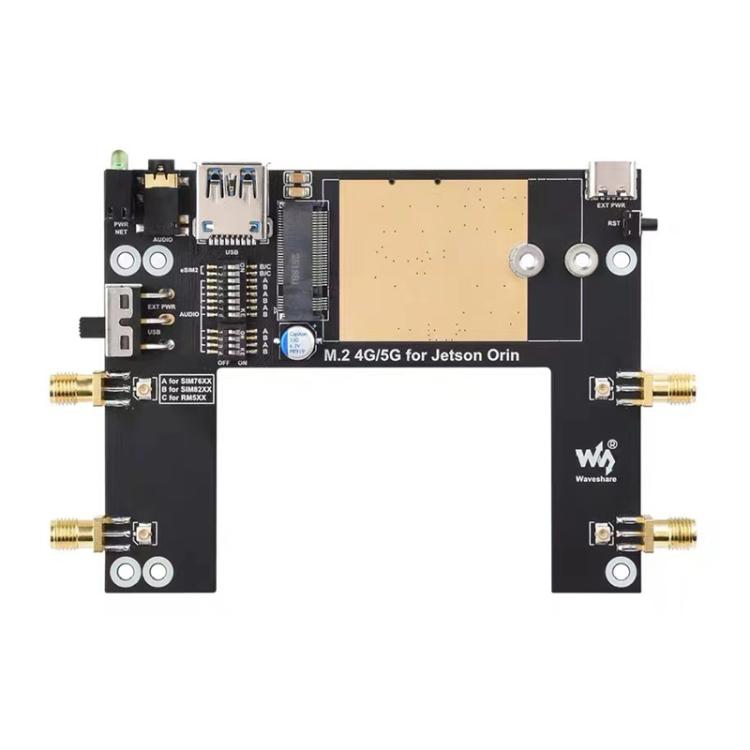

The WAVESHARE SIM8262E-M2 5G module is designed for high-speed 5G connectivity and GNSS positioning. It is suitable for applications requiring reliable internet access and precise location tracking.
- Product Type: Module Expansion Accessory
- Compatibility: Jetson Orin
- 5G Support: 5G NSA and SA networking
- 5G Standard: 3GPP R16
- Chip Solution: Qualcomm Snapdragon X625
- LTE Speed: 1.6Gbps (Download) / 200Mbps (Upload)
- HSPA+ Speed: 42Mbps (Download) / 5.76Mbps (Upload)
- Size: Approximately 10 x 7.9 cm
- Positioning: Dual-frequency with GPS, GLONASS, BeiDou, Galileo, and QZSS
- USB Interface: Onboard USB 3.1, backward compatible with USB 2.0
- M.2B KEY Standard Interface: Yes
- Antenna Interfaces: 4 SMA to IPEX conversion interfaces
- UART Pad Interface: Reserved for data transmission
- SIM Card Slots: 1 Nano SIM and 1 QFN-8 (5×6) eSIM, dual card single standby
- Audio Interface: Onboard audio interface and audio decoder chip
- Power Supply: High-efficiency circuit, outputs up to 3A current
- Control Features: Onboard power switch, reset button, and LED indicator

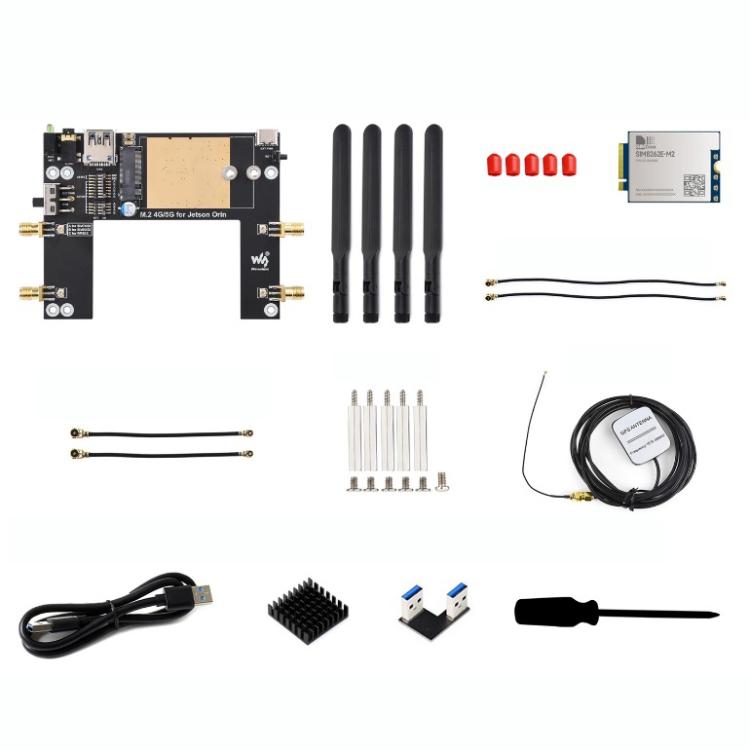

- Packing List: Expansion board, module, 5G antennas (4), SMA dust protection caps (5), IPEX cables (2 of 13cm, 2 of 5cm), screw kit, GPS antenna, dual USB cable, cooler, USB converter, screwdriver
