Waveshare RPi Relay Board
Waveshare RPi Relay Board
Sale
Sold out
Pre-order
Regular price
R 419.00
Regular price
Sale price
R 419.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Compatibility: Raspberry Pi A+/B+/2B/3B/3B+
• Material: Electronic components
• Key feature: High-quality relays for controlling devices
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module

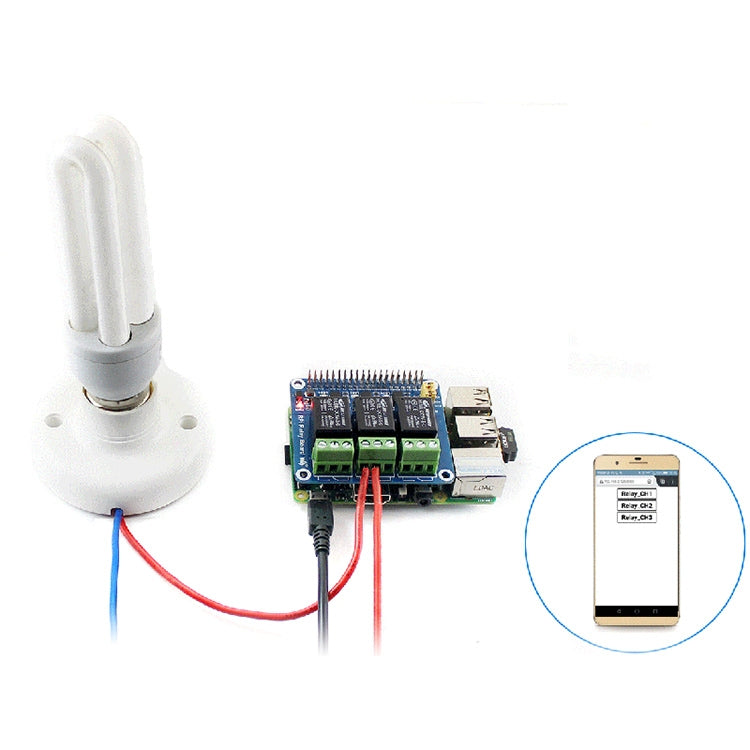

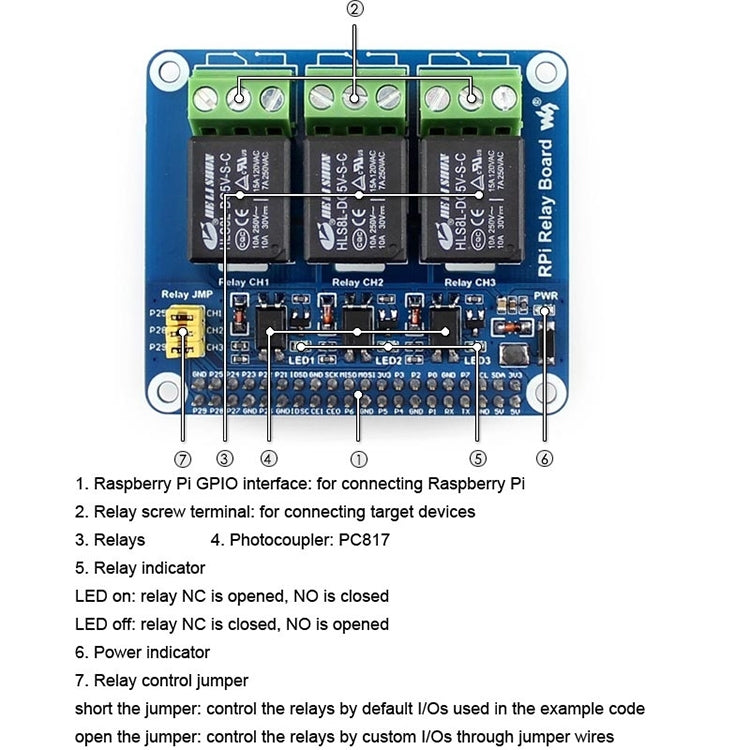

OverviewThe RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.RPi Relay Board Features1. Supports Raspberry Pi A+/B+/2B/3B/3B+2. High quality relays, loads up to 5A 250V AC or 5A 30V DC3. Photo coupling isolation, prevent interference from high voltage circuit4. Onboard LEDs for indicating relays status5. Relay control jumper, allows to control the relays by custom pins other than the default pins6. Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835What is on the RPi Relay Board1. Raspberry Pi GPIO interface: for connecting Raspberry Pi2. Relay screw terminal: for connecting target devices3. Relays4. Photocoupler: PC8175. Relay indicator- LED on: relay NC is opened, NO is closed- LED off: relay NC is closed, NO is opened6. Power indicator7. Relay control jumper- Short the jumper: control the relays by default I/Os used in the example code- Open the jumper: control the relays by custom I/Os through jumper wiresPackage include- RPi Relay Board x 1- RPi screws pack (2pcs) x 1
• Compatibility: Raspberry Pi A+/B+/2B/3B/3B+
• Material: Electronic components
• Key feature: High-quality relays for controlling devices
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module
OverviewThe RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.RPi Relay Board Features1. Supports Raspberry Pi A+/B+/2B/3B/3B+2. High quality relays, loads up to 5A 250V AC or 5A 30V DC3. Photo coupling isolation, prevent interference from high voltage circuit4. Onboard LEDs for indicating relays status5. Relay control jumper, allows to control the relays by custom pins other than the default pins6. Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835What is on the RPi Relay Board1. Raspberry Pi GPIO interface: for connecting Raspberry Pi2. Relay screw terminal: for connecting target devices3. Relays4. Photocoupler: PC8175. Relay indicator- LED on: relay NC is opened, NO is closed- LED off: relay NC is closed, NO is opened6. Power indicator7. Relay control jumper- Short the jumper: control the relays by default I/Os used in the example code- Open the jumper: control the relays by custom I/Os through jumper wiresPackage include- RPi Relay Board x 1- RPi screws pack (2pcs) x 1
