Description

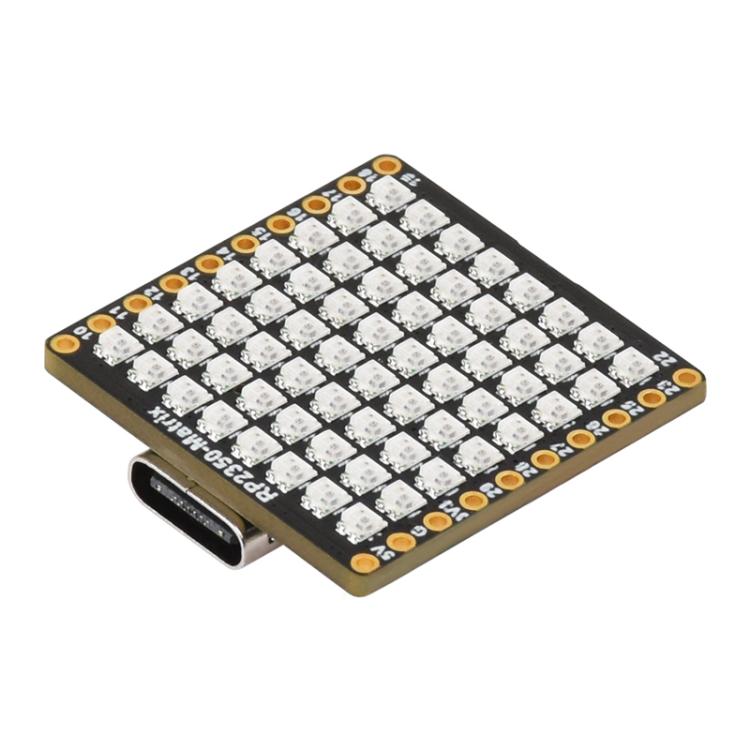

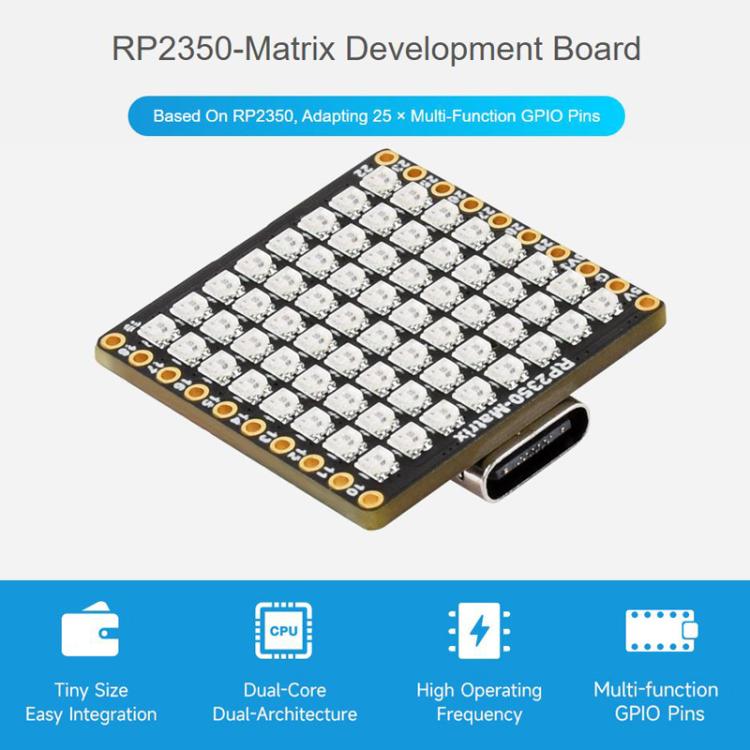

The WAVESHARE RP2350 Matrix Microcontroller Development Board is designed for development use with Raspberry Pi. It features a dual-core architecture that allows users to switch between ARM Cortex-M33 and RISC-V processors for flexible programming.
- Product Type: Arduino Nucleo Accessories
- Compatibility: Raspberry Pi
- Material: Not specified
- Key Feature: Dual-core, dual architecture
- Processor: Dual-core ARM Cortex-M33 and dual-core Hazard3 RISC-V
- Clock Frequency: Up to 150MHz
- Memory: 520KB SRAM and 16MB on-chip Flash
- Interface: Type-C, supports forward and reverse plugging

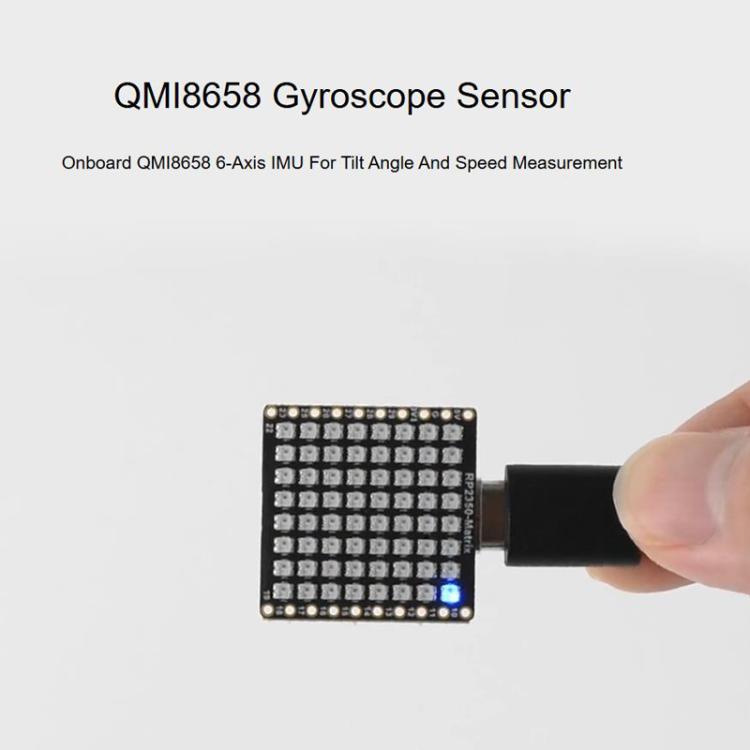

- Inertial Measurement Unit: Built-in QM18658 6-axis (3-axis acceleration, 3-axis gyroscope)

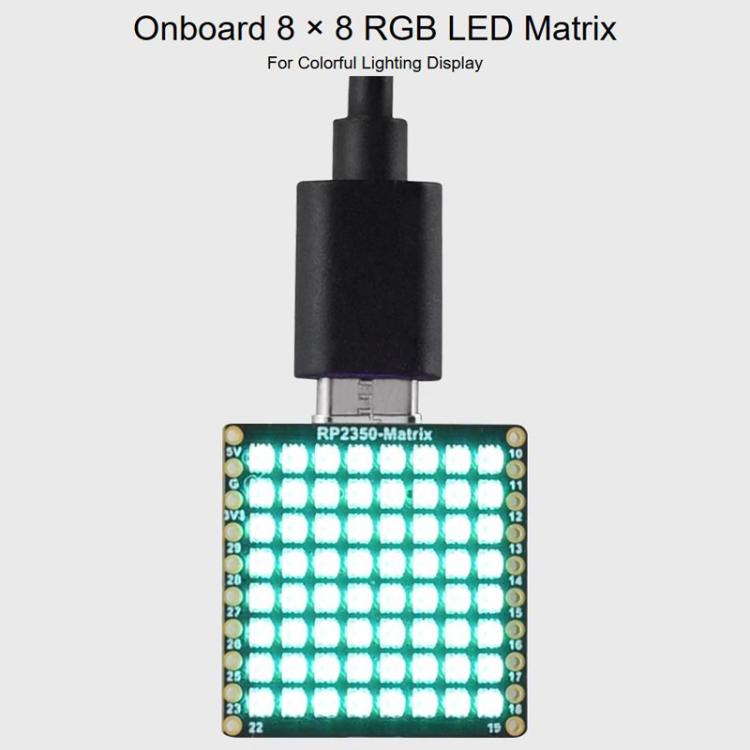

- LED Matrix: 8 x 8 RGB LED matrix for lighting effects
- Expansion: Dout pin for RGB matrix expansion
- USB Support: USB1.1 host and slave
- Power Modes: Low power sleep and hibernation modes
- Programming: Drag-and-drop program download via USB recognized as mass memory

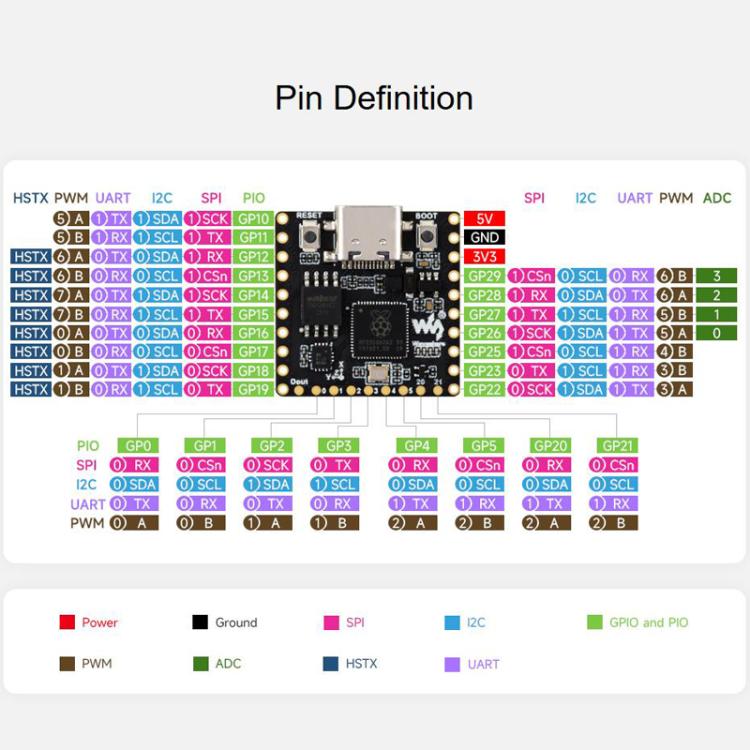

- GPIO Pins: 25 multi-function GPIO pins
- Communication Interfaces: 1 HSTX, 2 SPI, 2 I2C, 2 UART
- ADC: 4 12-bit ADC channels
- PWM: 16 controllable PWM channels
- Clocks and Timers: Precision on-chip clocks and timers
- Temperature Sensors: Integrated temperature sensors
- Floating Point Library: On-chip accelerated floating point library
- PIO State Machines: 12 programmable I/O state machines for custom peripheral support

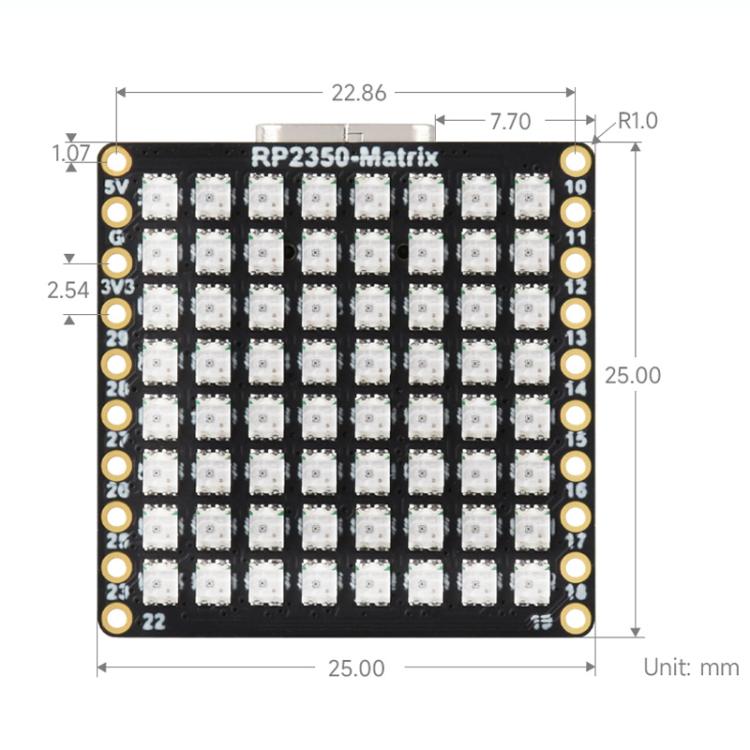

- Dimensions: Approximately 2.5 x 2.5 cm
