Description

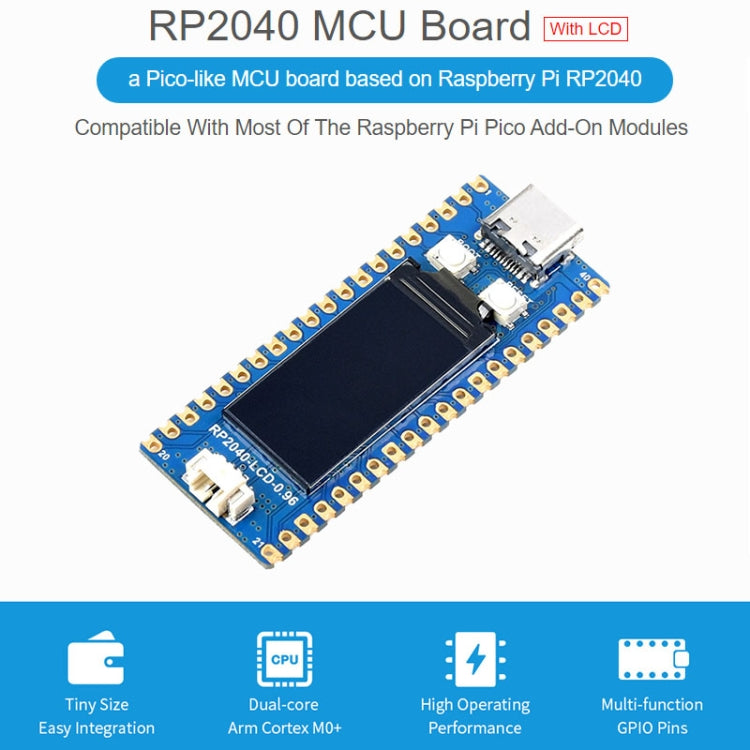

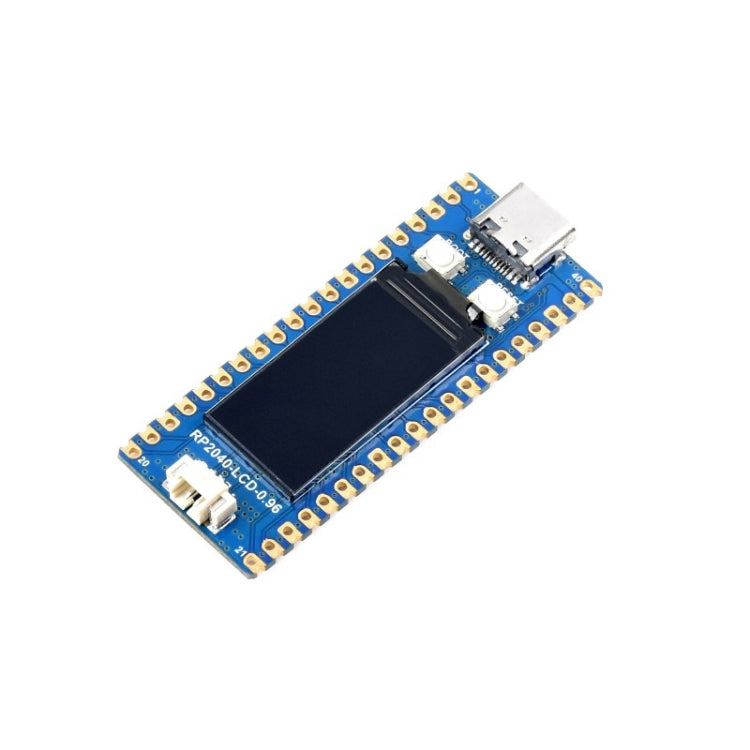

The RP2040-LCD-0.96 is a Pico-like MCU board designed for electronics projects. It features an onboard 0.96 inch IPS display, making it suitable for various applications including mobile device integration.
- Product Type: Modules Expansions Accessories
- Compatibility: Raspberry Pi Pico
- Material: Not specified

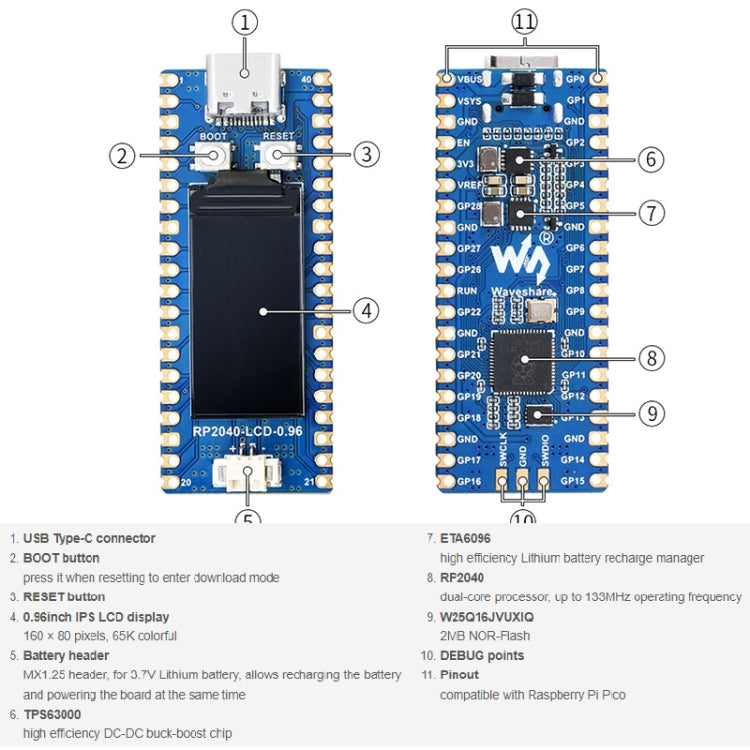

- Key Feature: Onboard 0.96 inch IPS display
- Processor: Dual-core Arm Cortex M0+ running up to 133 MHz
- Microcontroller: RP2040 microcontroller chip
- SRAM: 264KB
- Flash Memory: 2MB onboard
- USB Connector: USB-C
- Display: 0.96 inch, 160x80 pixels, 65K colors IPS LCD
- Battery Header: Lithium battery recharge/discharge header
- DC-DC Chip: TPS63000, high efficiency buck-boost chip, 1.8A current switch

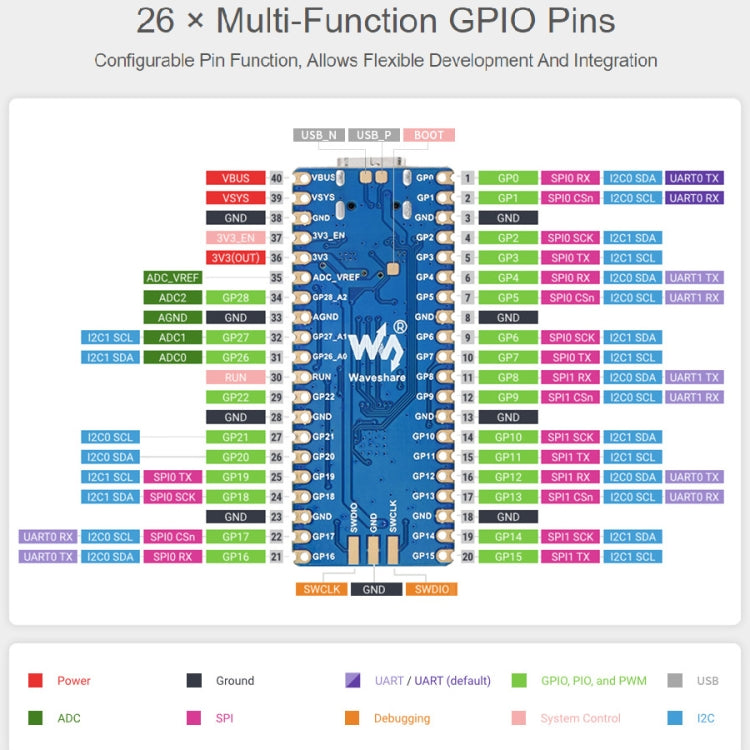

- GPIO Pins: 26 multi-function GPIO pins
- Communication Interfaces: 2 x SPI, 2 x I2C, 2 x UART
- ADC: 3 x 12-bit ADC
- PWM Channels: 16 controllable PWM channels

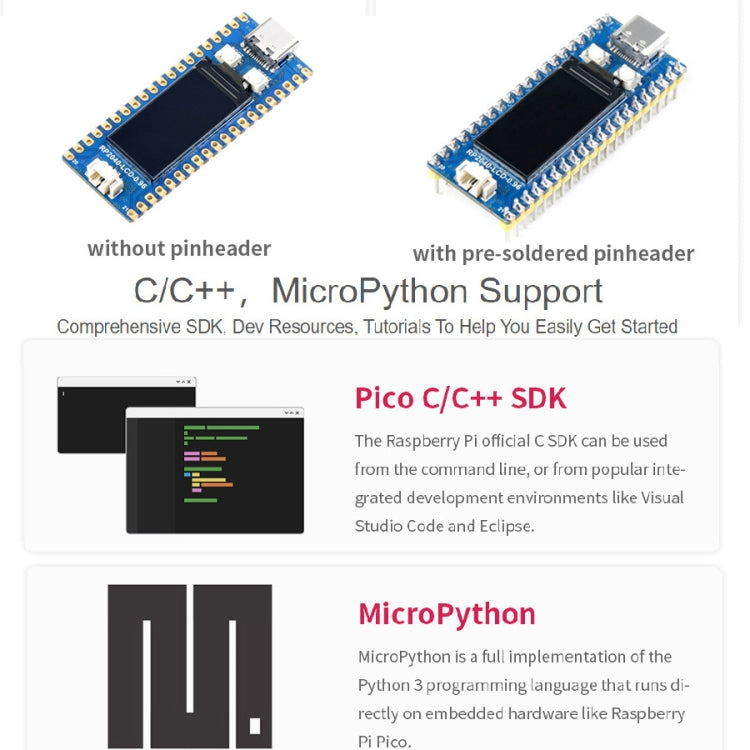

- Programming: Drag-and-drop programming via USB mass storage
- Low-Power Modes: Low-power sleep and dormant modes
- Clock and Timer: Accurate clock and timer on-chip
- Temperature Sensor: Integrated temperature sensor
- Floating-Point Libraries: Accelerated floating-point libraries on-chip
- Programmable I/O: 8 x PIO state machines for custom peripheral support
- USB Support: USB 1.1 with device and host support
- Castellated Module: Allows soldering direct to carrier boards
