Description

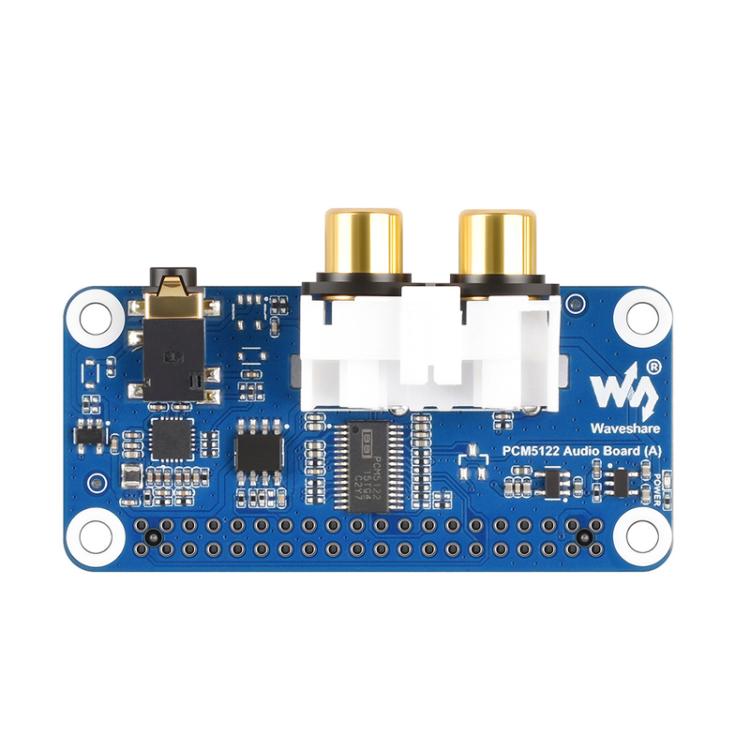

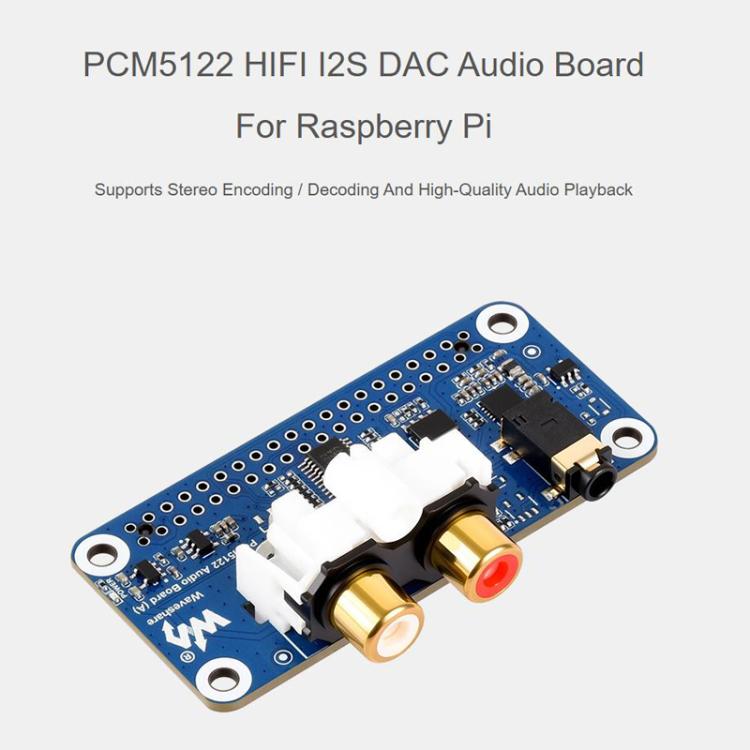

The WAVESHARE PCM5122 is a HiFi I2S DAC audio sound card designed for Raspberry Pi. It enables high-quality audio playback through various output options, including headphones and speakers.
- Product Type: Raspberry Pi Accessories

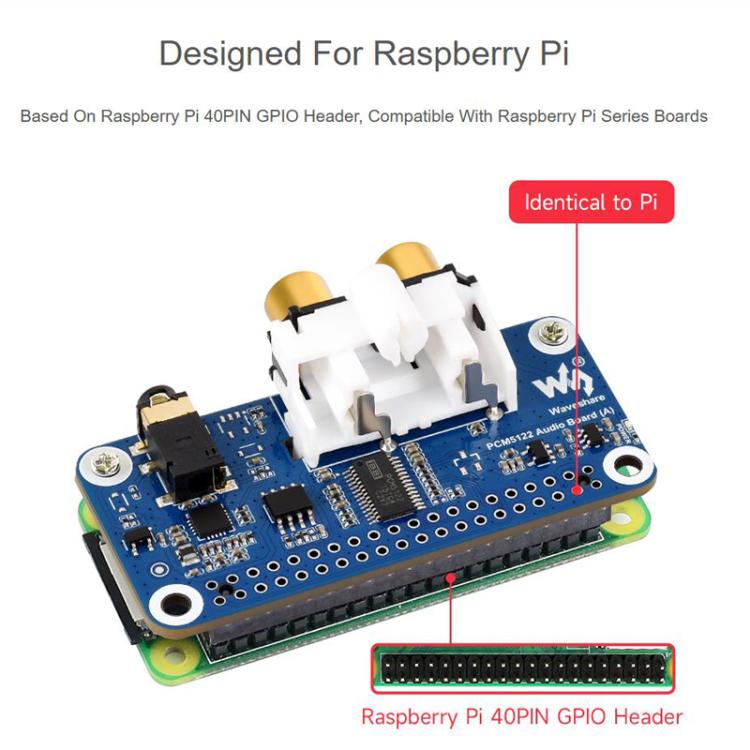

- Compatibility: Raspberry Pi series motherboards

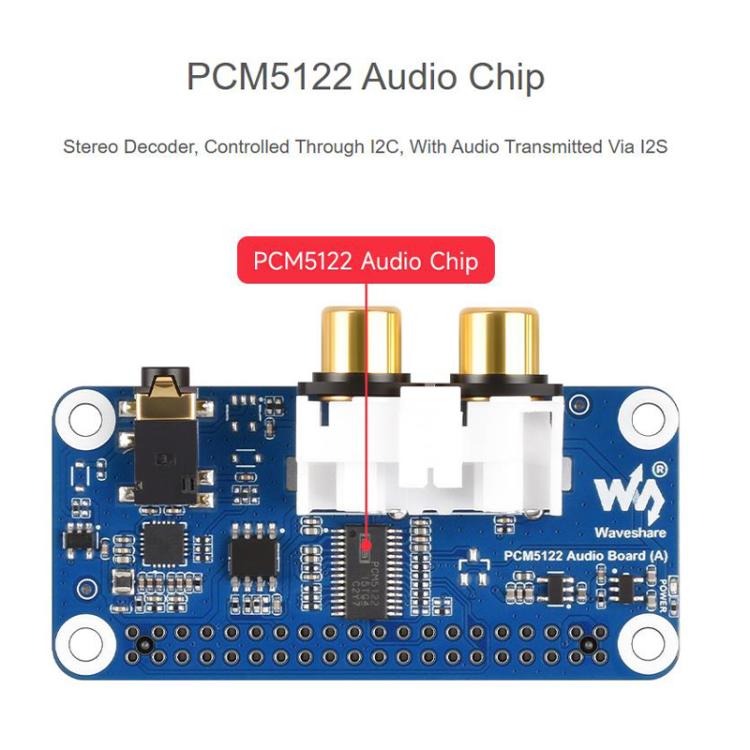

- Audio Codec Chip: PCM5122 professional stereo audio codec
- Control Interface: I2C
- Audio Transmission: I2S interface

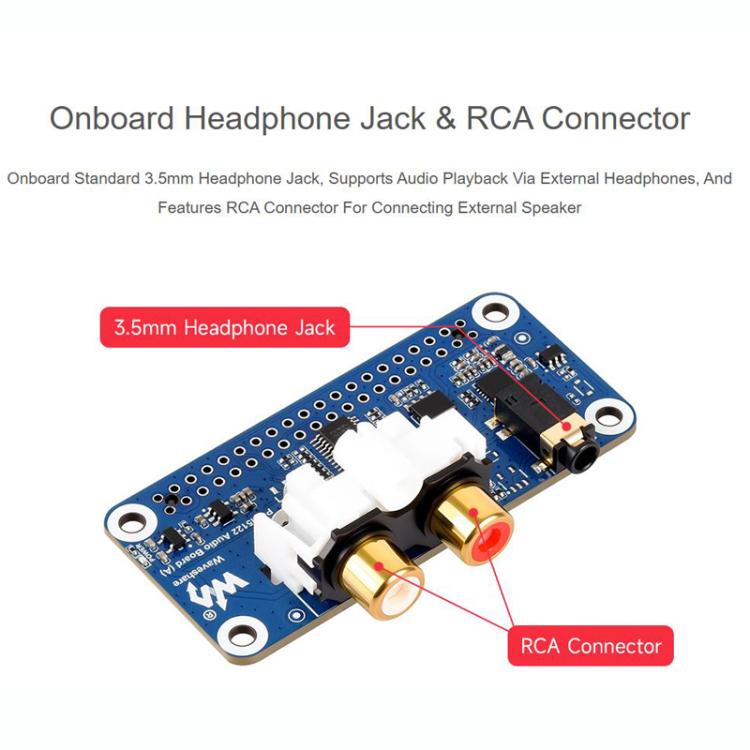

- Output Options: 3.5mm headphone connector, RCA port
- Maximum Sampling Frequency: 384KHz
- Maximum Resolution: 32-bit
- Size: 6.5 x 3 cm

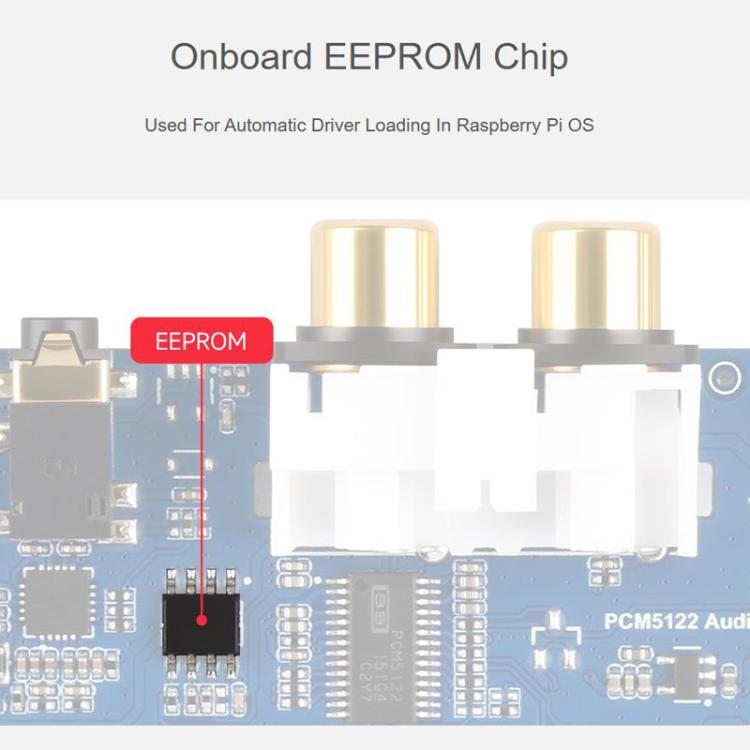

- Firmware: Built-in EEPROM for automatic driver loading on Raspberry Pi OS
