Description

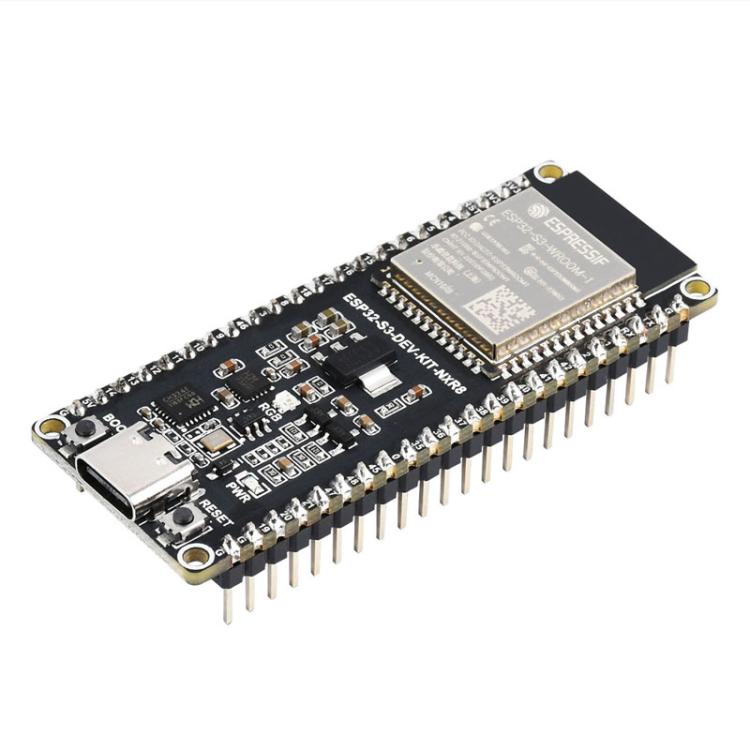

The WAVESHARE ESP32-S3-DEV-KIT-N16R8-M is a microcontroller development board designed for Wi-Fi and Bluetooth applications. It is suitable for development use in various consumer electronics projects.
- Product Type: Microcontroller Development Board
- Compatibility: ESP32-S3-DEV-KIT-N16R8-M
- Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz
- Memory: 512KB SRAM, 384KB ROM, PSRAM and Flash memory versions available
- Wireless Communication: Integrated 2.4GHz Wi-Fi and Bluetooth LE
- Interface: Type-C, reversible connection
- Onboard Chips: CH343 and CH334 for USB and UART development

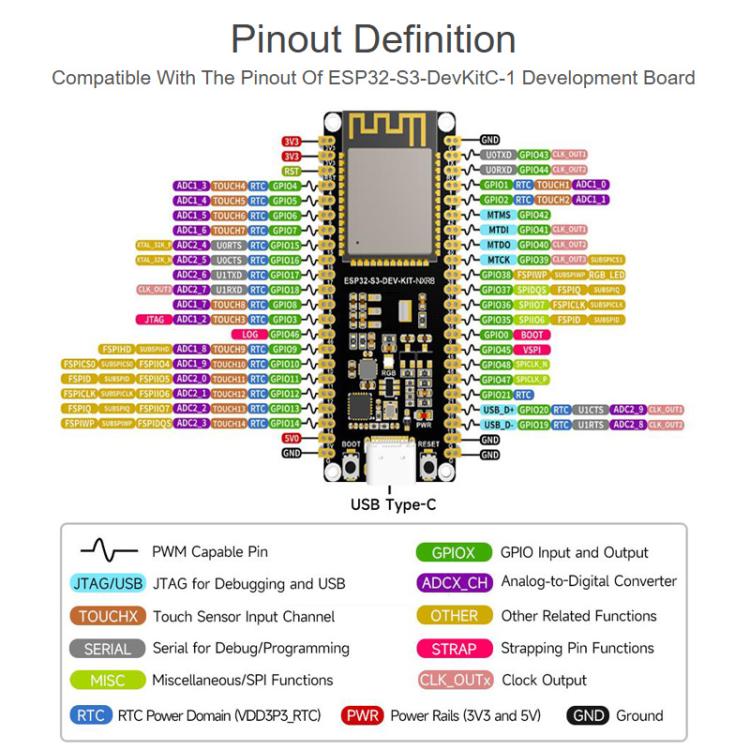

- Peripheral Interfaces: Compatible with ESP32-S3-DevKitC-1 development board
- Design: Stamp hole design for direct soldering to base plates
- Power Management: Supports various low-power operating states
- Size: Approximately 6.33 x 2.54 cm
