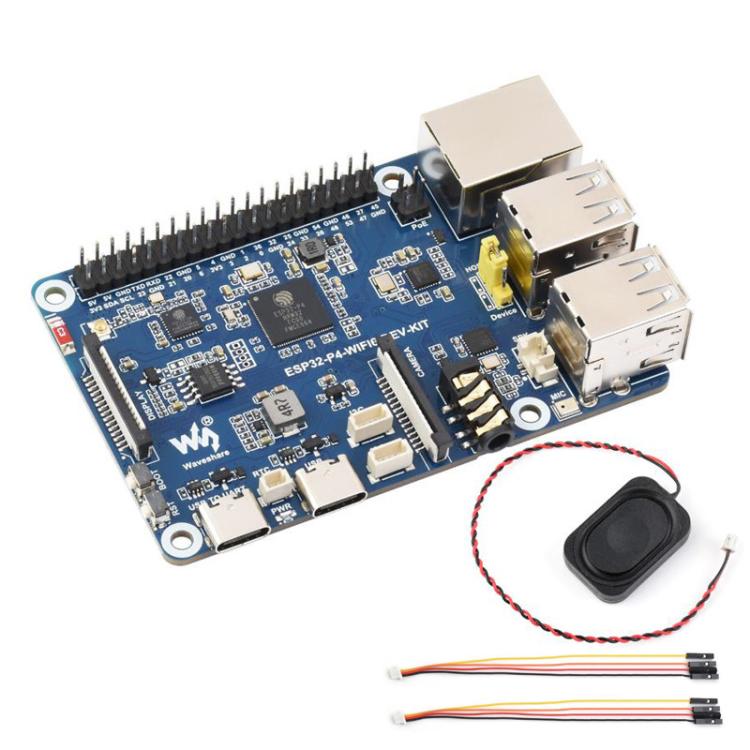

WAVESHARE ESP32-P4-WIFI6-DEV-KIT High-Performance Development Board Supports Wi-Fi 6 And Bluetooth 5 / BLE 5
WAVESHARE ESP32-P4-WIFI6-DEV-KIT High-Performance Development Board Supports Wi-Fi 6 And Bluetooth 5 / BLE 5
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description
The WAVESHARE ESP32-P4-WIFI6-DEV-KIT is a high-performance development board designed for Wi-Fi 6 and Bluetooth 5 applications. It is suitable for projects requiring advanced image and voice processing capabilities, such as AI integration and multimedia applications.
- MCU: RISC-V 32-bit dual-core and single-core processors
- Memory: 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
- Image and voice processing: JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), H.264 video encoder
- Memory: 32MB PSRAM (chip-on-chip stacked), 16MB NOR Flash
- On-board interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminals, RTC battery terminal
- GPIO: 28 additional programmable GPIO pins via 2 × 20 pin headers
- Security features: Secure boot, Flash encryption, hardware encryption accelerator, hardware random number generator, Access Permission Management (APM)
- Wireless capabilities: 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) via onboard ESP32-C6 chip
- Power supply: Reserved PoE module interface
- AI platform support: Compatible with online large-model platforms like Doubao and DeepSeek AI models
- Package contents (ESP32-P4-WIFI6-DEV-KIT-B): ESP32-P4-WIFI6-DEV-KIT x 1, 7-DSI-TOUCH-A touchscreen x 1, RPi Camera (B) x 1, 8 ohms 2W speaker x 1, FFC 15-pin cable x 1, MIPI-DSI cable (12cm) x 1, FFC 22-pin cable x 2, MX1.25 2-pin to SH1.0 2-pin cable (about 80mm) x 1, MX1.25 2-pin to 2.54mm 3-pin cable (about 110mm) x 1, MX1.25 2-pin to MX1.25 4-pin cable (about 150mm) x 1, USB Type-A dual male cable x 1, USB Type-A to Type-C cable (about 1m) x 1, SH1.0 4-Pin connector cable (about 150mm) x 2, copper pillar pack x 1, screw pack x 1
- Package contents (ESP32-P4-WIFI6-DEV-KIT-C): ESP32-P4-WIFI6-DEV-KIT x 1, 10.1-DSI-TOUCH-A x 1, RPi Camera (B) x 1, 8 ohms 2W speaker x 1, FFC 15-pin cable x 1, MIPI-DSI cable (12cm) x 1, FFC 22PIN flex cable x 2, MX1.25 2PIN to SH1.0 2PIN adapter cable (about 80mm) x 1, MX1.25 2PIN to 2.54 3PIN adapter cable (about 110mm) x 1, USB Type-A dual male cable x 1, USB Type-A to Type-C cable (about 1m) x 1, SH1.0 4-Pin cable (about 150mm) x 2, copper pillar pack x 1, screw pack x 1
