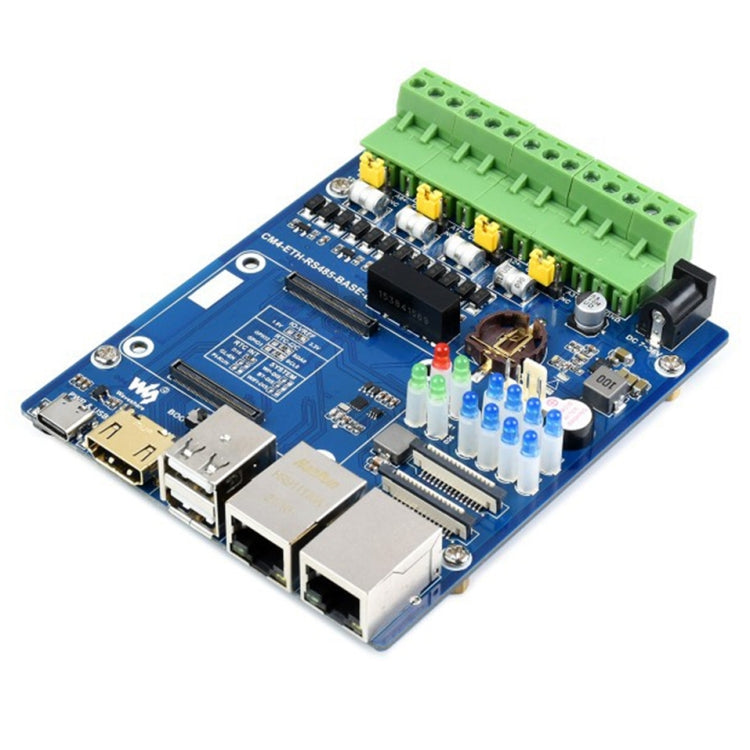

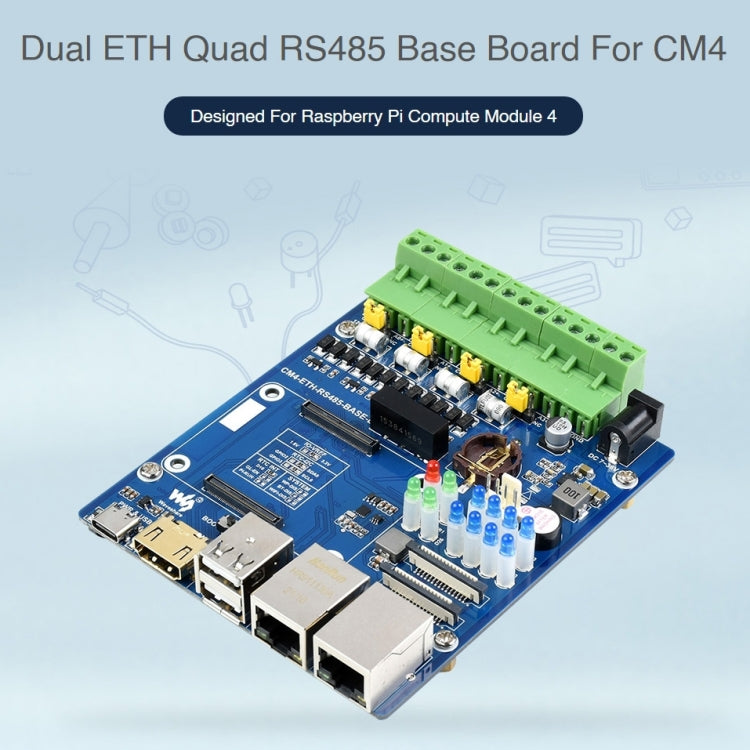

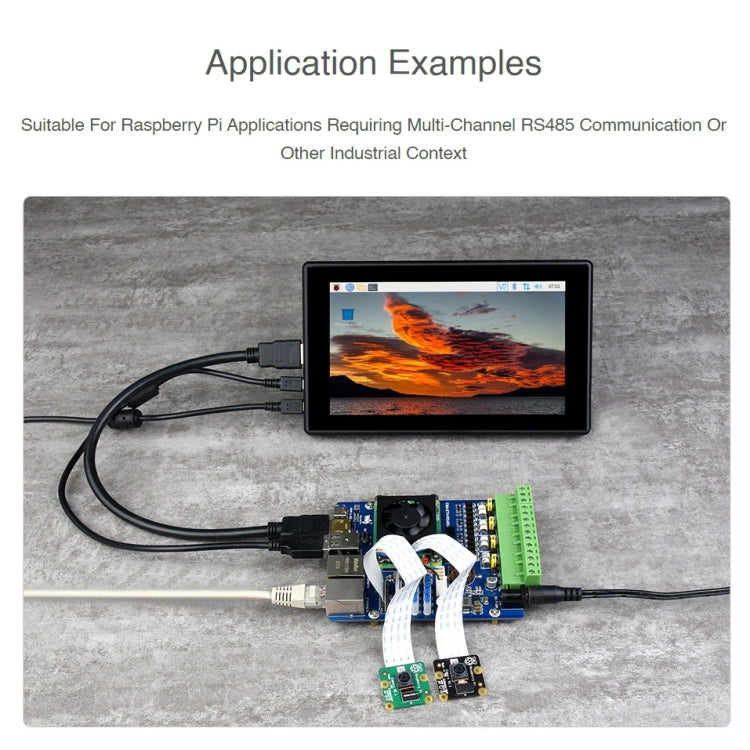

The Waveshare Dual ETH Quad RS485 Base Board B is a base board designed for the Raspberry Pi Compute Module 4 (CM4). It provides multiple connectivity options, making it suitable for various applications such as industrial automation and IoT projects.

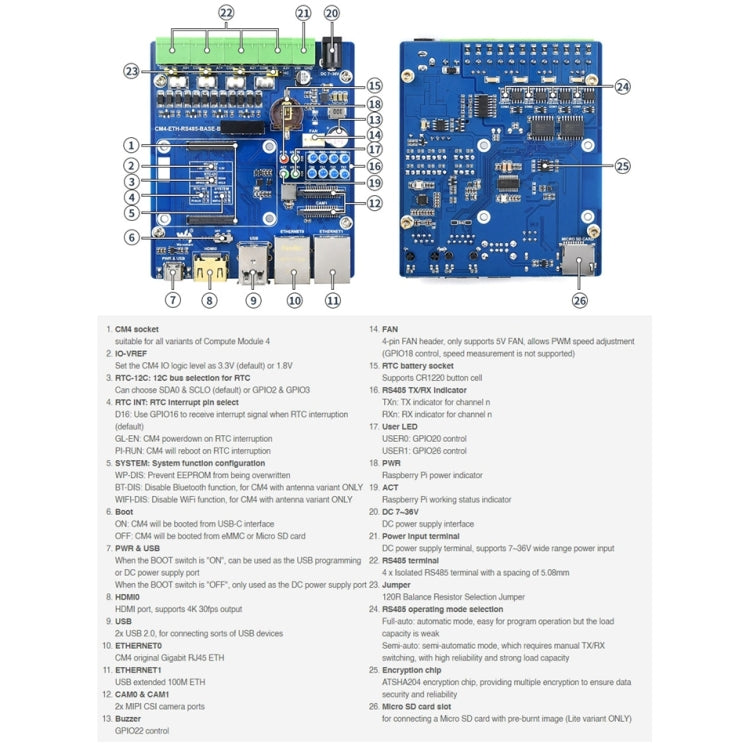

- Product Type: Base Board

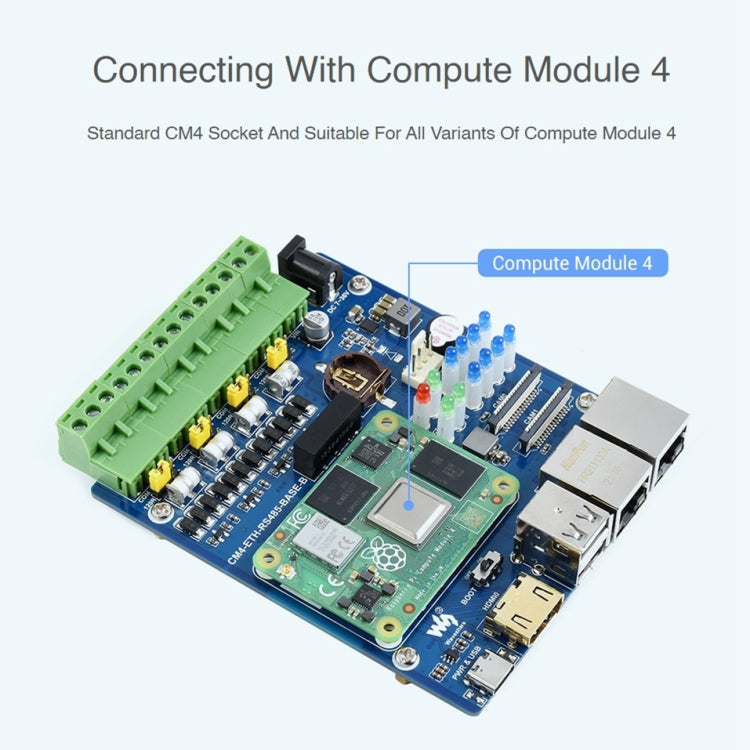

- Compatibility: Raspberry Pi Compute Module 4 (all variants)
- Networking: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector

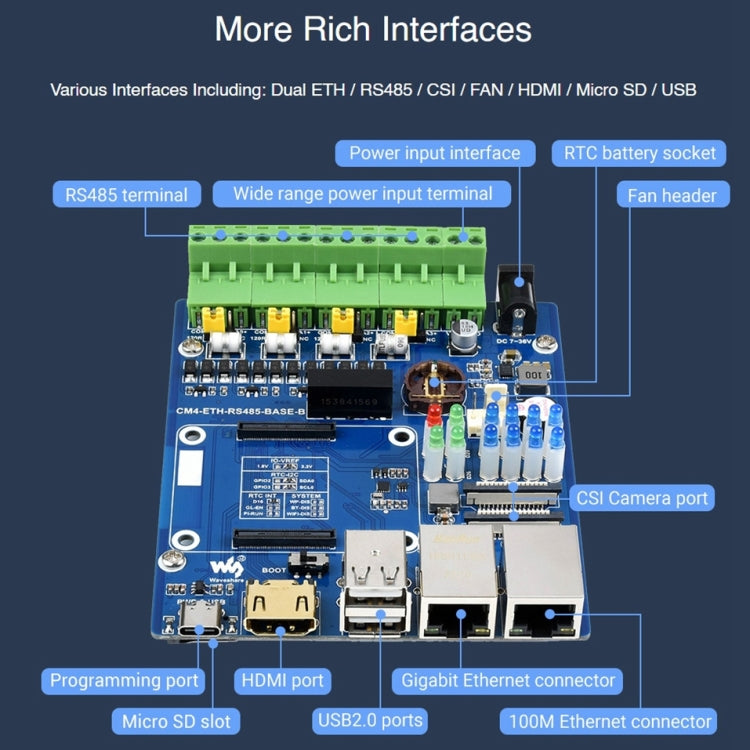

- Connectors: Isolated RS485 x 4, Power screw terminal x 14, USB 2.0 Type A x 2
- Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
- Video: HDMI port x 1, supports 4K 30fps output
- RTC: Real-time clock with battery socket
- Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- Fan header: Allows speed adjustment, 5V
- Indicators: Power indicator x 1, CM4 status indicator x 1, User LED x 2, RS485 communication indicator x 8
- Power Input: 7-36V

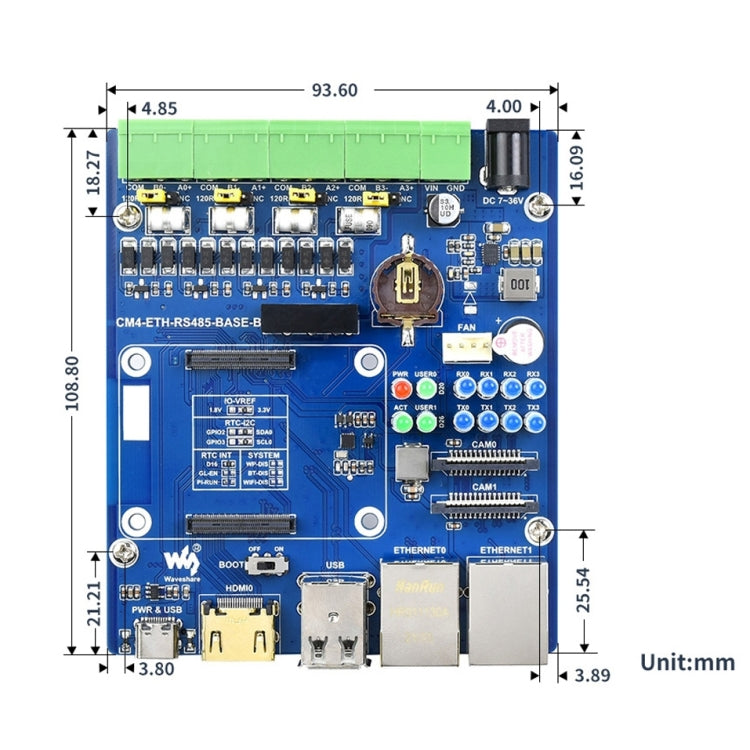

- Dimensions: 93.6 x 108.8 mm
