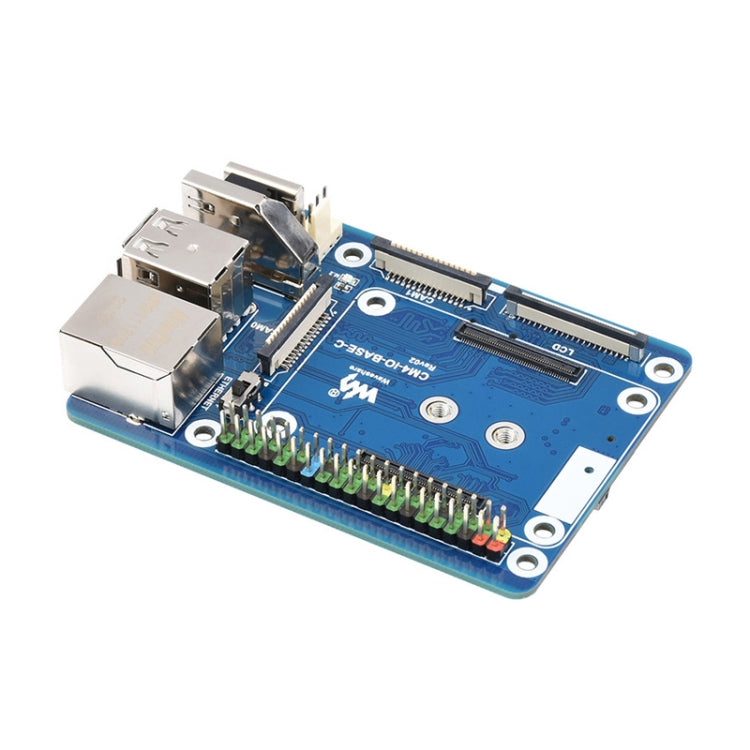

Waveshare CM4-IO-BASE-C For Raspberry Pi Compute Module 4 Mini Base Board, 23228

• Product type: Raspberry Pi Accessories
• Brand: Waveshare
• Compatibility: Raspberry Pi Compute Module 4
• Material: Not specified
• Key feature: Mini base board with multiple connectivity options
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Raspberry Pi Accessories

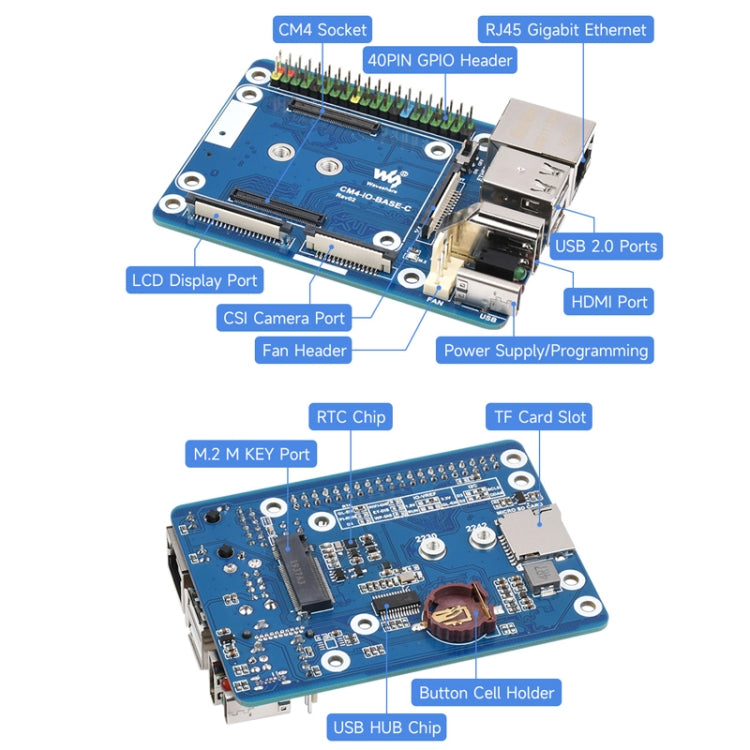

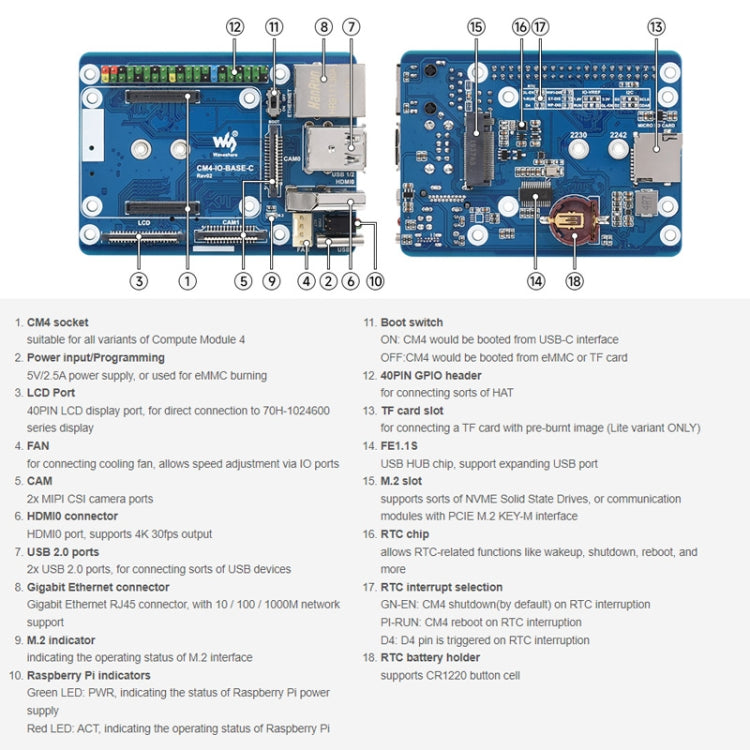

1. Suitable for all models of computing modules
2. Network: Gigabit Ethernet RJ45 connector

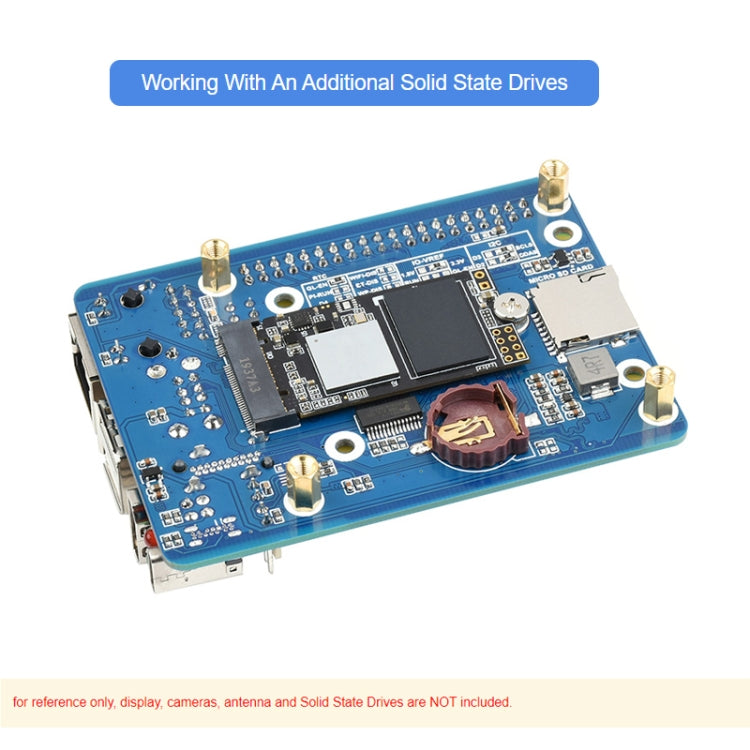

3. Connector: - M.2 M KEY, supports communication modules or NVME solid state drives - Suitable for Raspberry Pi 40PIN GPIO connector
4. USB: USB 2.0 Type A x 2
5. Display: LCD port (40pin 0.5mm FPC connector)
6. Camera: MIPI CSI-2 camera port x 2 (15-pin 1.0mm FPC connector)
7. Video: HDMI port, supports 4K 30fps output
8. RTC: Real Time Clock with battery socket to wake up the computing module
9. Storage: TF card socket for Compute Module 4 Lite (no eMMC) variant
10. Fan header: allows speed adjustment, 5V
11. Power input: 5V

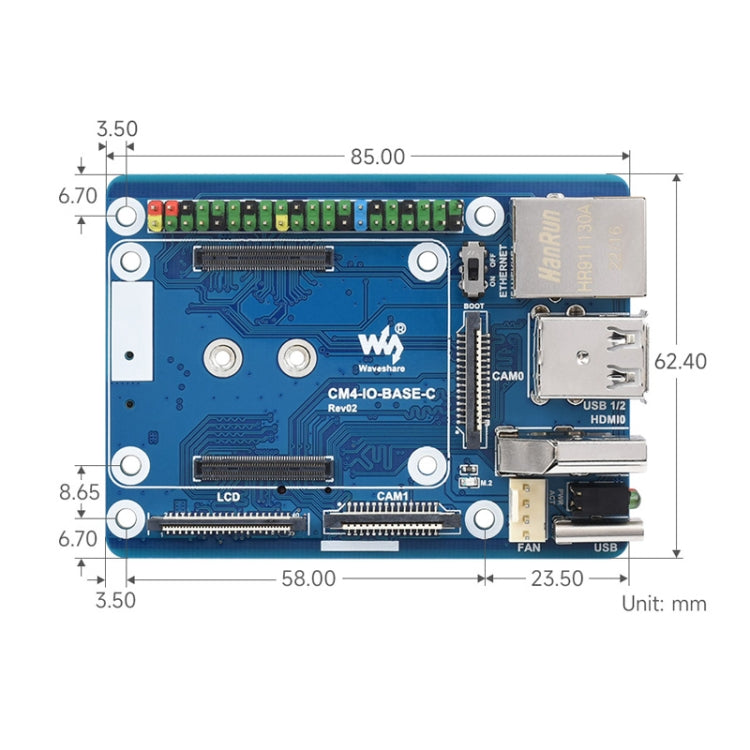

12. Size: approx. 8.5 x 5.6 cm
