Description

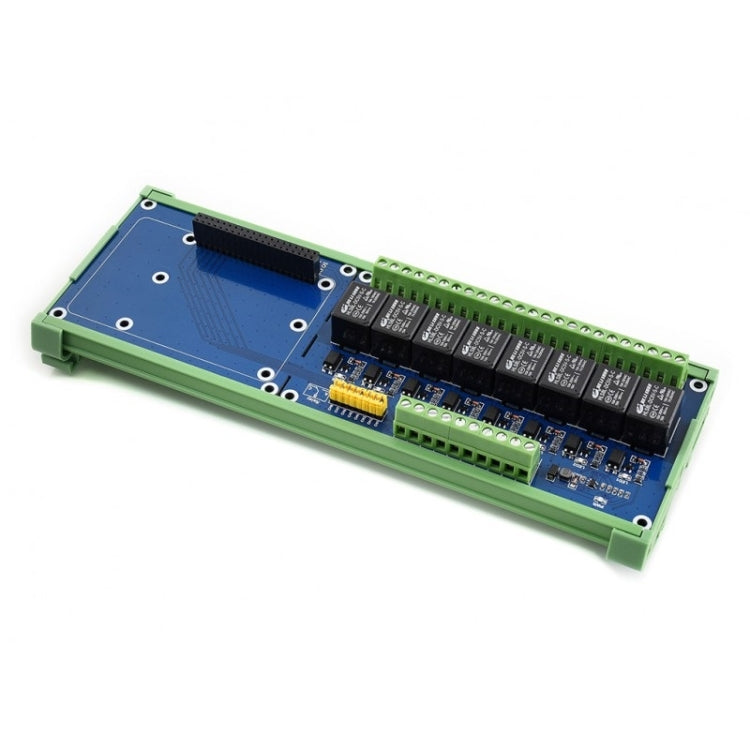

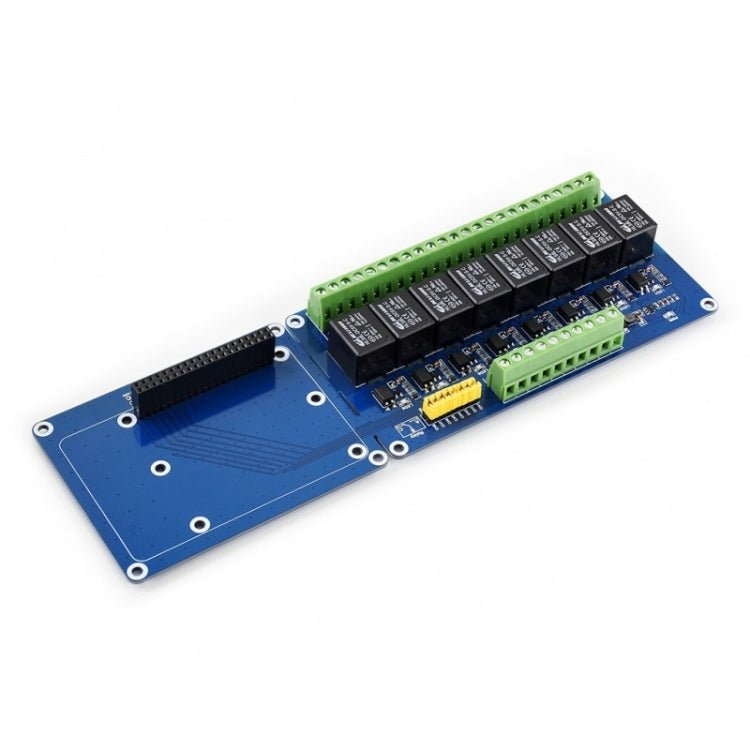

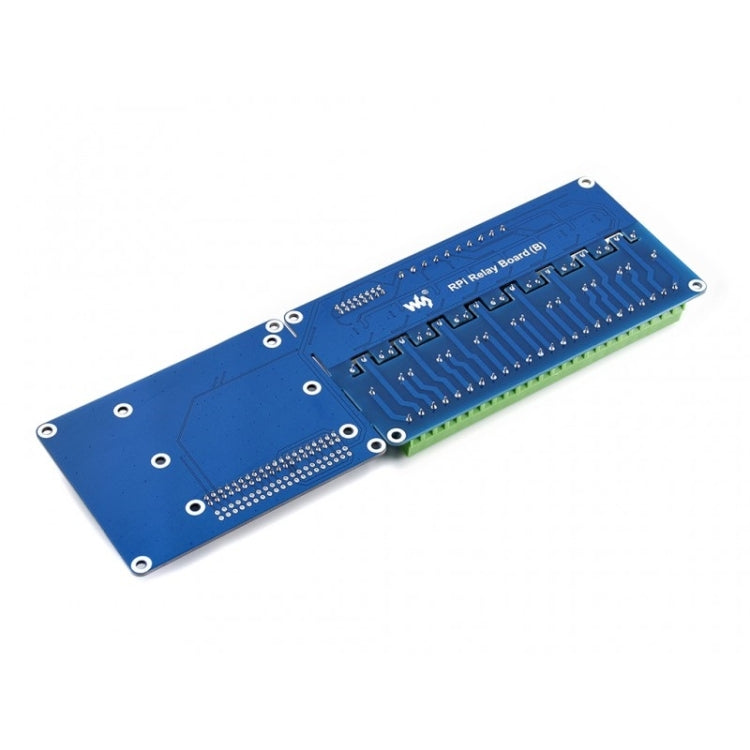

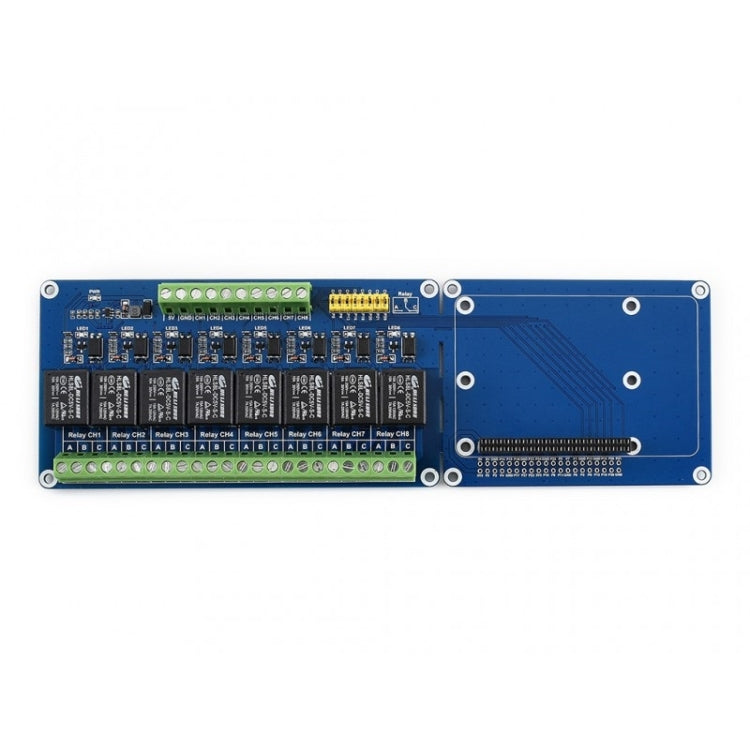

The Waveshare 8-ch Relay Expansion Board is an accessory designed for Raspberry Pi. It enables control of high voltage products such as home appliances through its 8 relay channels.
- Product Type: Modules Expansions Accessories
- Compatibility: Raspberry Pi A+/B+/2B/3B/3B+
- Material: High-quality components
- Relay Channels: 8-ch
- Load Capacity: Up to 5A 250V AC or 5A 30V DC
- Photo Coupling Isolation: Yes

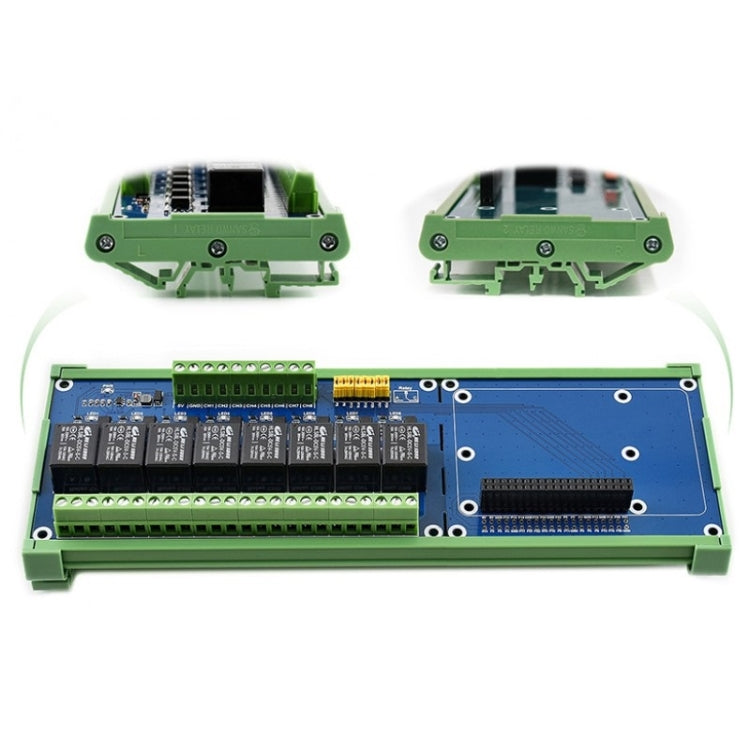

- Mounting Type: Standard rail mount
- Onboard LEDs: Yes, for indicating relay status
- Relay Control Pin Selection Jumper: Yes
- Reserved Control Interface: Yes, compatible with controllers like PLC
- Development Resources: Includes examples in wiringPi, bcm2835, python, python-bottle, and crontab
- Power Supply Voltage: 5V
- Trigger Signal: 3.3V/5V
- Contact Form: SPDT-NO, NC
- Closed Current: 6mA (per channel)
- Connector: Screw terminal block
- Dimensions: 232 × 72 mm
- Mounting Hole Size: 3.0 mm
