Description

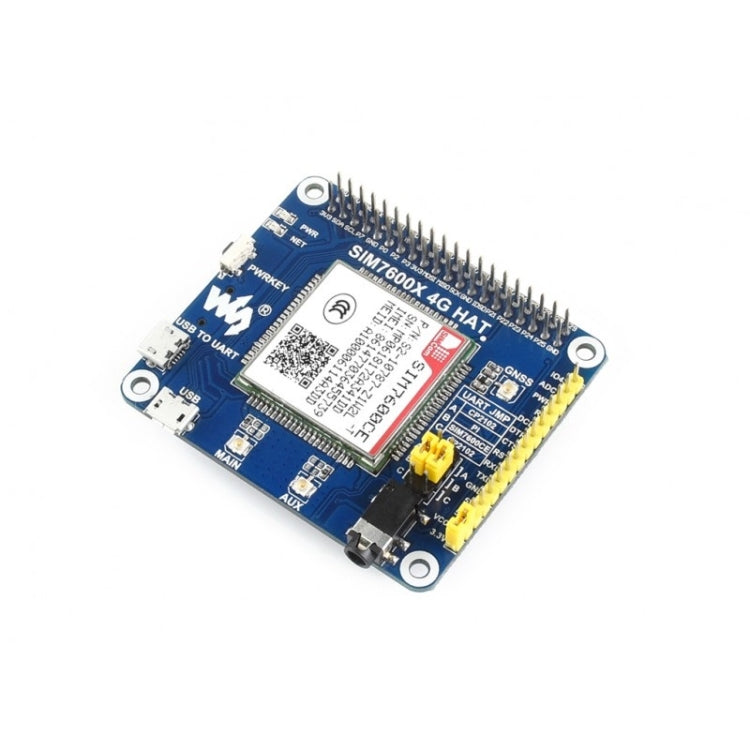

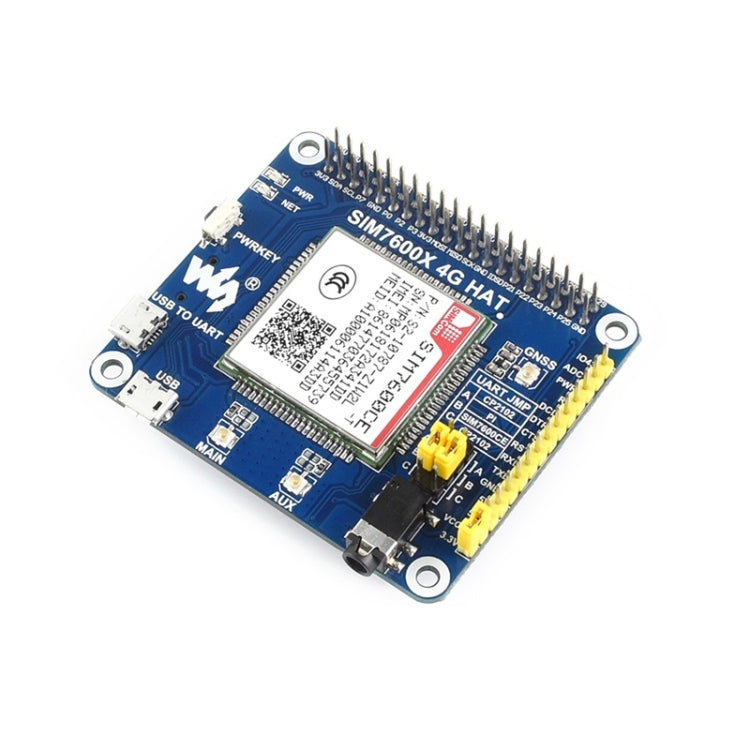

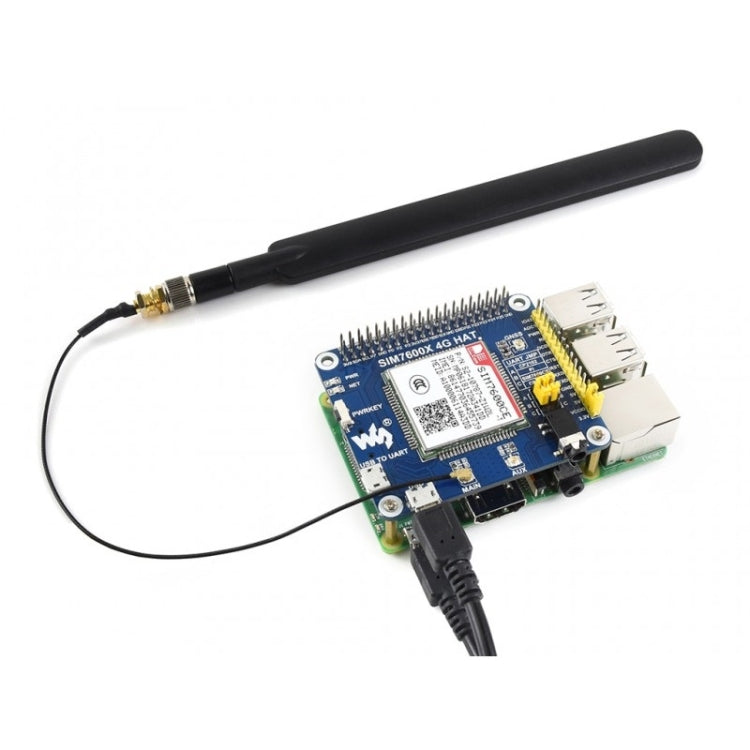

The Waveshare SIM7600A-H 4G HAT is a communication and GNSS positioning module designed for Raspberry Pi. It enables high-speed 4G connectivity, wireless communication, and global positioning.
- Type: 4G communication and GNSS positioning module
- Compatibility: Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- Applicable Regions: North America (US, CA, MX), Southeast Asia, West Asia, Europe, Africa, China
- Data Transfer: LTE CAT4 up to 150Mbps downlink
- Power Supply: 5V
- Operating Voltage: Configurable to 3.3V or 5V via jumper
- Operating Temperature: -30°C to 80°C
- Storage Temperature: -45°C to 90°C
- Dimensions: 56.21mm x 65.15mm
- Supported Communication Protocols: Dial-up, SMS, MMS, TCP, UDP, HTTP, FTP

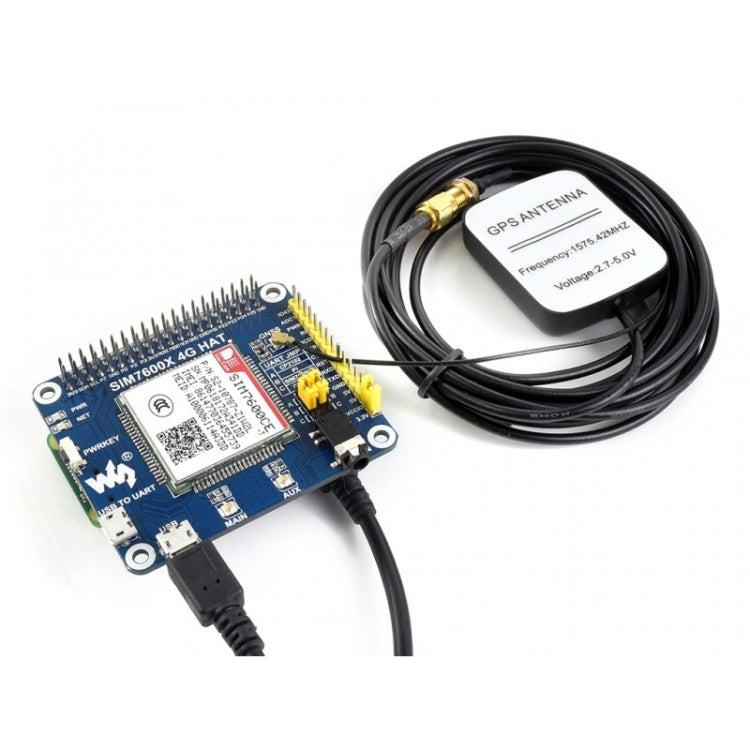

- GNSS Support: GPS, BeiDou, GLONASS, LBS base station positioning

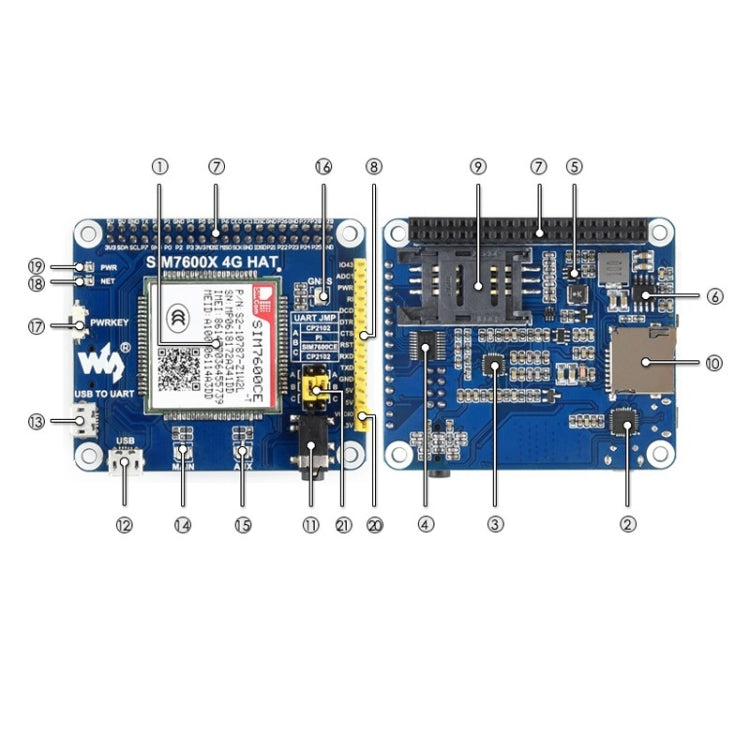

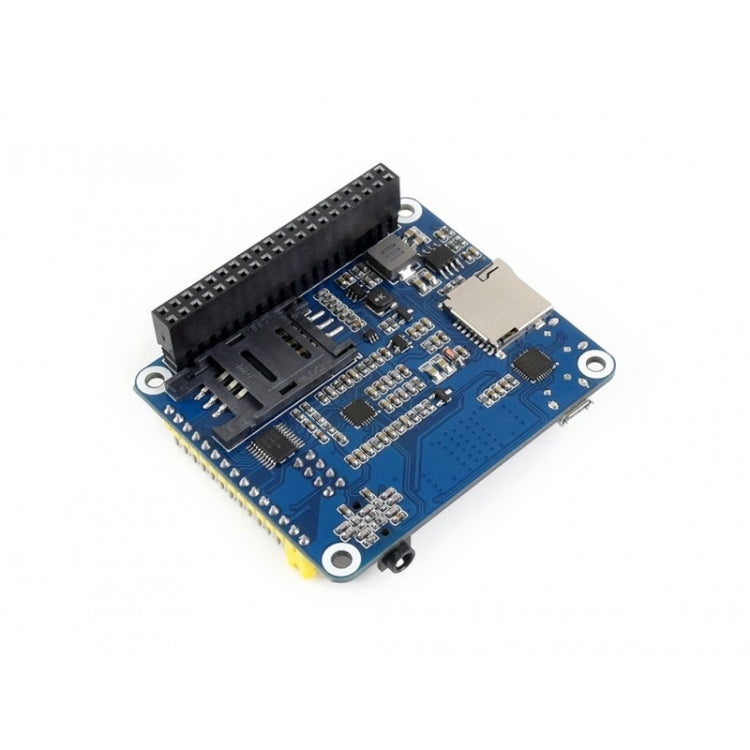

- Onboard Interfaces: USB interface, UART control pins, SIM card slot, audio jack
- Audio Features: Echo cancellation, noise reduction
- LED Indicators: 2x for monitoring working status
- Baud Rate: 300bps to 4Mbps (default: 115200bps)
- Control: Via AT commands (3GPP TS 27.007, 27.005, V.25TER command set)
- Development Resources: Includes manual and examples for Raspberry Pi/Arduino/STM32

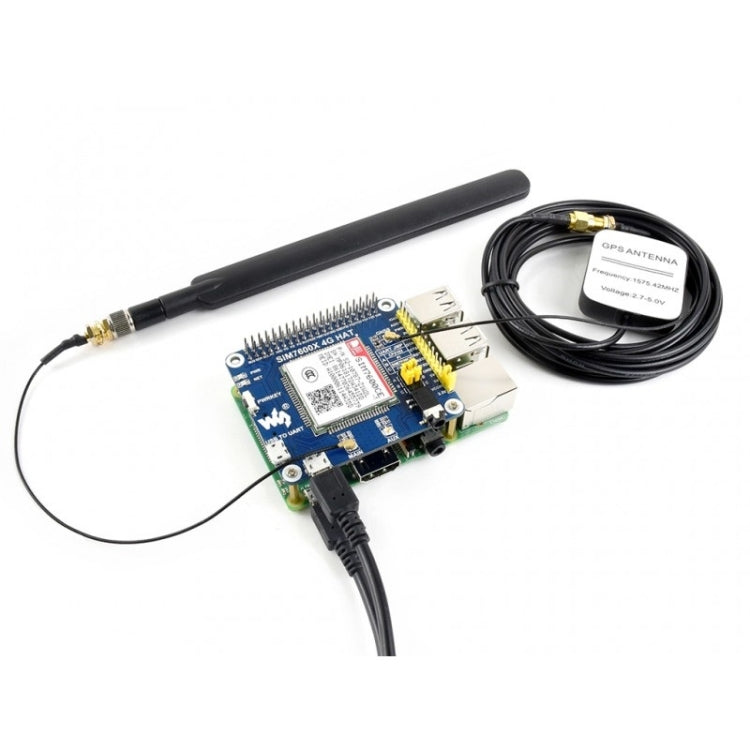

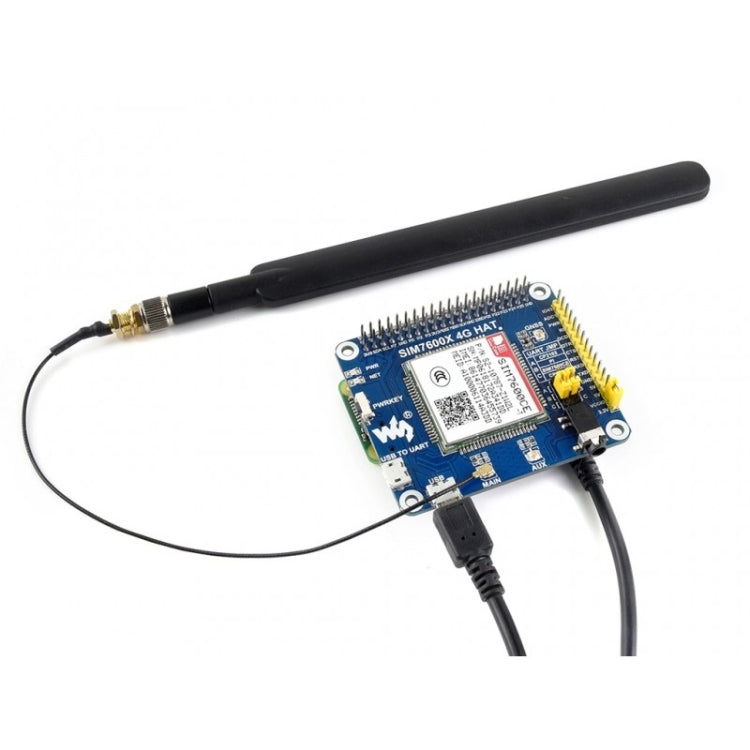

- Package Contents: SIM7600CE 4G HAT, LTE antenna, GPS external antenna, USB cables, RPi screws pack
