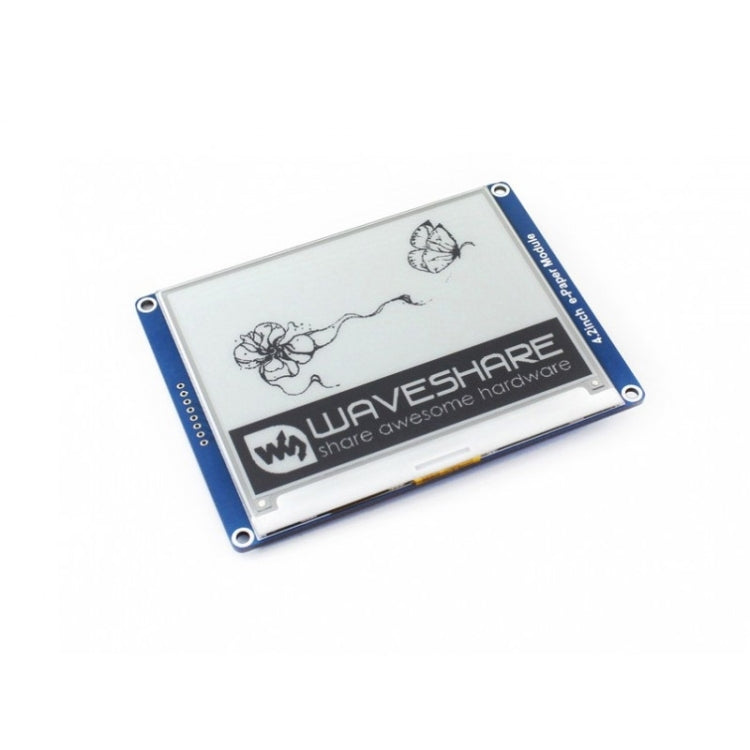

Waveshare 4.2 inch 400x300 E-Ink Display Module, SPI Interface

Name: Waveshare 4.2 inch 400x300 E-Ink Display Module, SPI Interface
Brand: Waveshare
SKU: ZY15802278
Price: 789.00 ZAR
Availability: InStock

R 789.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Overview
1. This is an E-Ink display module, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
4. Onboard voltage translator, compatible with 3.3V/5V MCUs
5. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications
1. Operating voltage: 3.3V~5V
2. Interface: 3-wire SPI, 4-wire SPI
3. Outline dimension: 103.0mm × 78.5mm
4. Display size: 84.8mm × 63.6mm
5. Dot pitch: 0.212 × 0.212
6. Resolution: 400 × 300
7. Display color: black, white
8. Grey level: 2
9. Full refresh time: 4s
10. Refresh power: 26.4mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
13. Weight: 0.052 kg

Interface
1. SYMBOL: DESCRIPTION
2. VCC: 3.3V~5V
3. GND: Ground
4. DIN: SPI MOSI pin
5. CLK: SPI SCK pin
6. CS: SPI chip selection, low active
7. DC: Data/Command selection (high for data, low for command)
8. RST: External reset, low active
9. BUSY: Busy status output, low active

Package contents
1. 4.2inch e-Paper Module x1
2. PH2.0 20cm 8Pin x1
