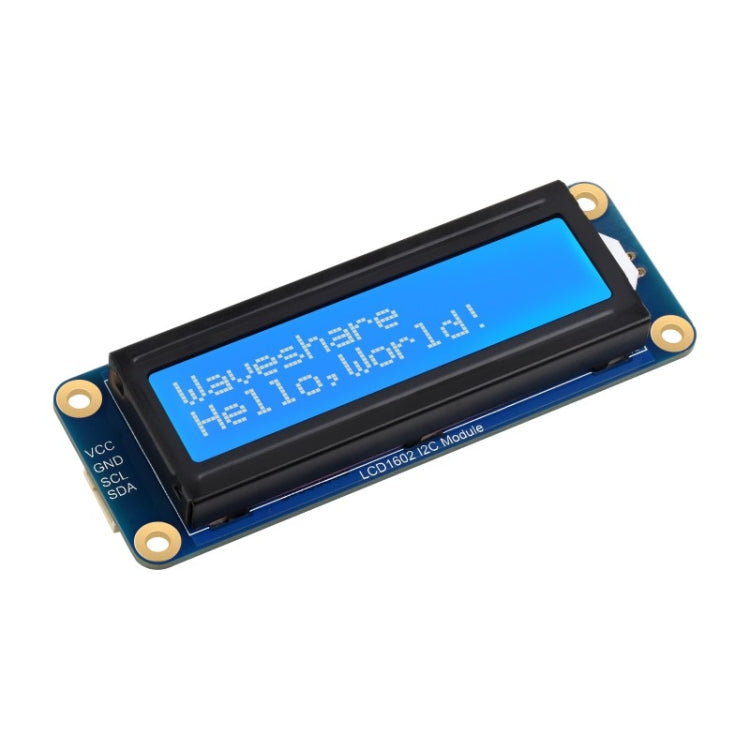

Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V

Name: Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V
Brand: Waveshare
SKU: TBD05797557
Price: 319.00 ZAR
Availability: InStock

R 319.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. VCC: 3.3V - 5V power input
2. GND: ground wire
3. SCL: I2C clock pin
4. SDA: I2C data pin
5. Communication interface: I2C
6. LCD controller: AiP31068
7. Working voltage: 3.3-5V
8. Working temperature: minus 20-70 degrees Celsius
9. Display panel: Character LCD

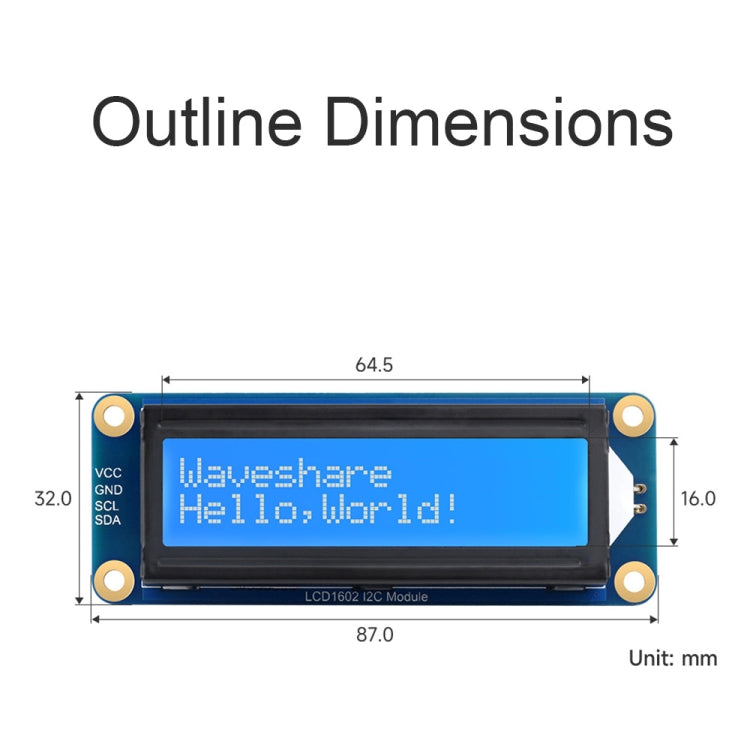

10. Display size: 64.5 x 16.0mm
11. Characters: 16 x 2
12. Product size: 87.0 x 32.0 x 13.0mm
13. Built-in character LCD panel LCD1602
14. I2C control interface, only need two signal pins, saving IO resources
15. Compatible with 3.3V/5V working voltage
16. Comes with online development resources and manuals (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)
