Waveshare 19340 For Raspberry Pi Pico 1.14inch 65K Colors LCD Display Module
Waveshare 19340 For Raspberry Pi Pico 1.14inch 65K Colors LCD Display Module
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from China (Standard) • Import tax and duties included
Ships from China (Standard) • Import tax and duties excluded
Ships from Hong Kong (Direct) • Import tax and duties excluded
Description

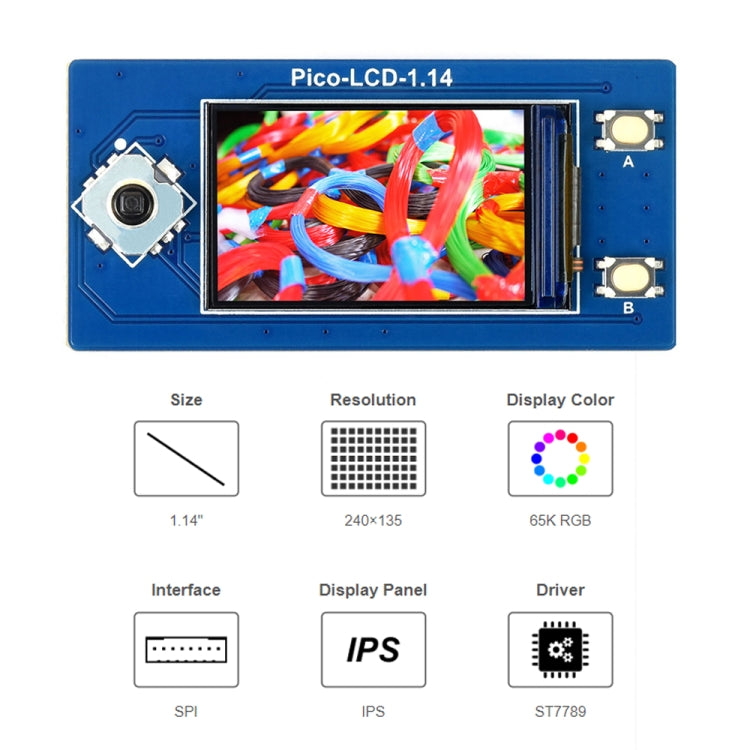

The Waveshare 19340 is a 1.14-inch LCD display module designed for use with Raspberry Pi Pico. It is suitable for digital electronics applications, providing clear color images with a resolution of 240 x 135 pixels.
- Display Type: IPS LCD
- Display Resolution: 240 x 135 pixels
- Color Depth: 65K colors
- Working Voltage: 2.6 - 5.5V
- Communication Interface: 4-wire SPI
- Display Size: 24.91 x 14.86 mm
- Pixel Size: 0.1101 x 0.1035 mm
- Control Chip: ST7789

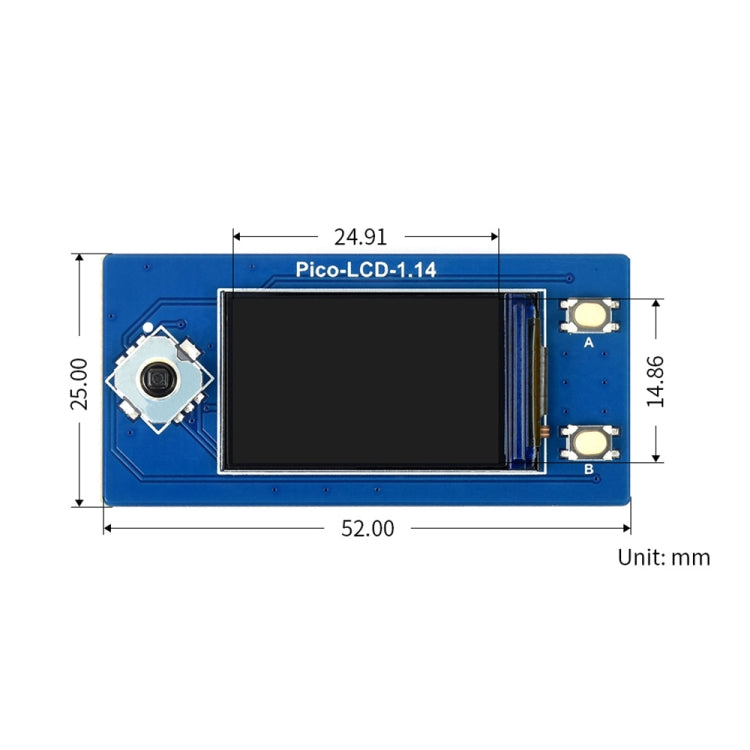

- Product Dimensions: 52 x 25 mm
- Weight: 11 g
- Includes: 1 joystick and 2 buttons for application expansion
- Application Field: Digital electronics
