Description

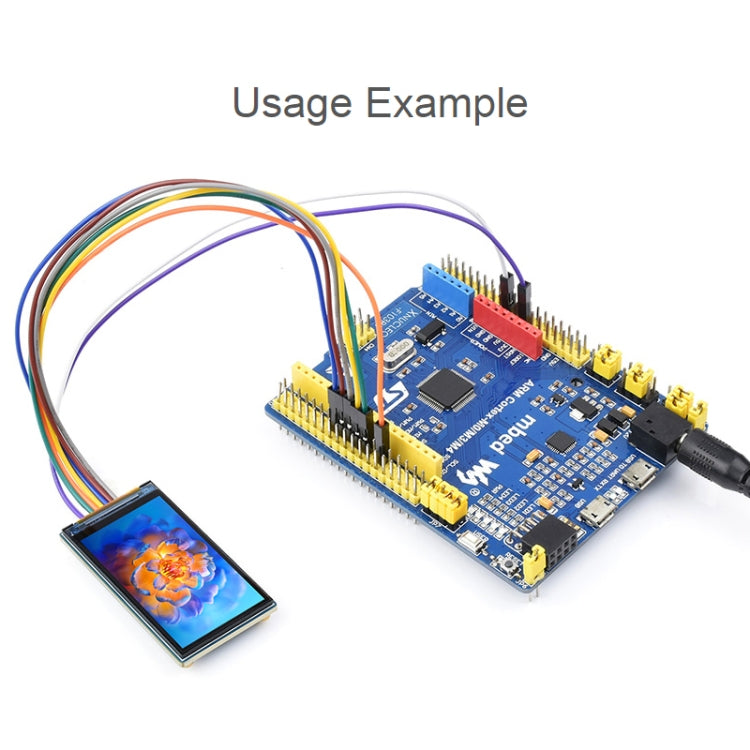

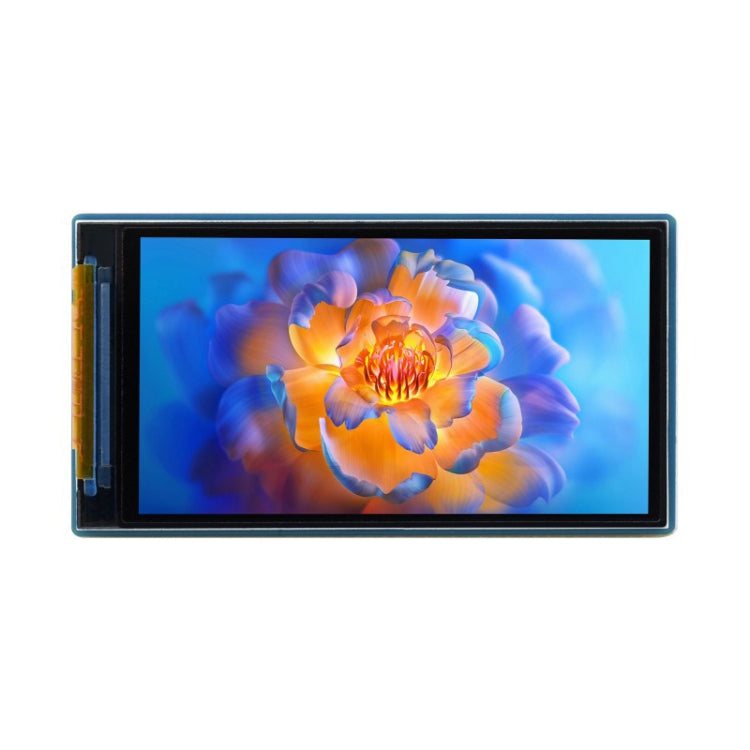

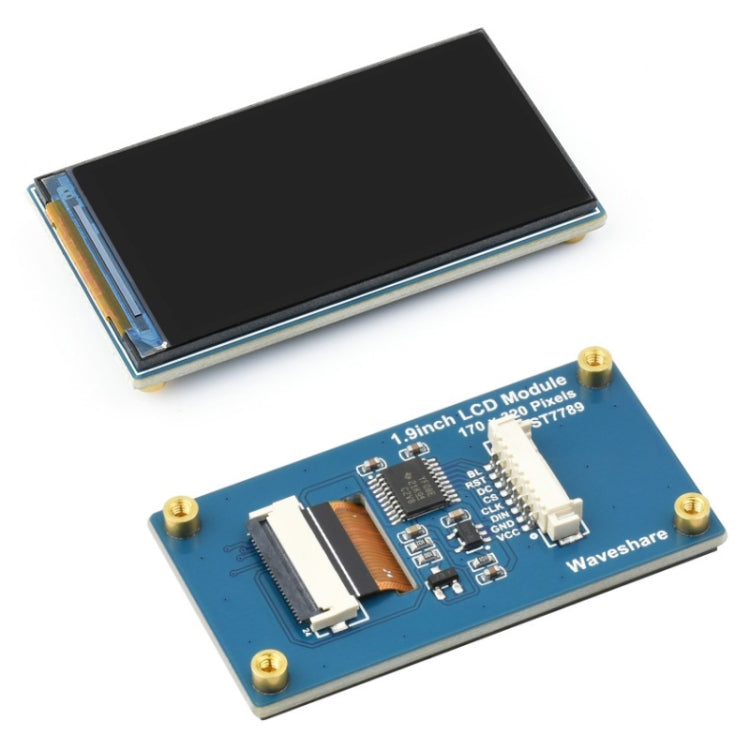

The Waveshare 1.9inch LCD Display Module is designed for use with the Raspberry Pi Pico. It provides a clear and colorful display for various everyday applications.
- Product Type: LCD & LED Display Module
- Brand: Waveshare
- Compatibility: Raspberry Pi Pico
- Material: IPS
- Color: 262K colors
- Driver: ST7789V2
- Resolution: 170 x 320 pixels
- Communication Interface: 4-wire SPI
- Operating Voltage: 3.3V / 5V

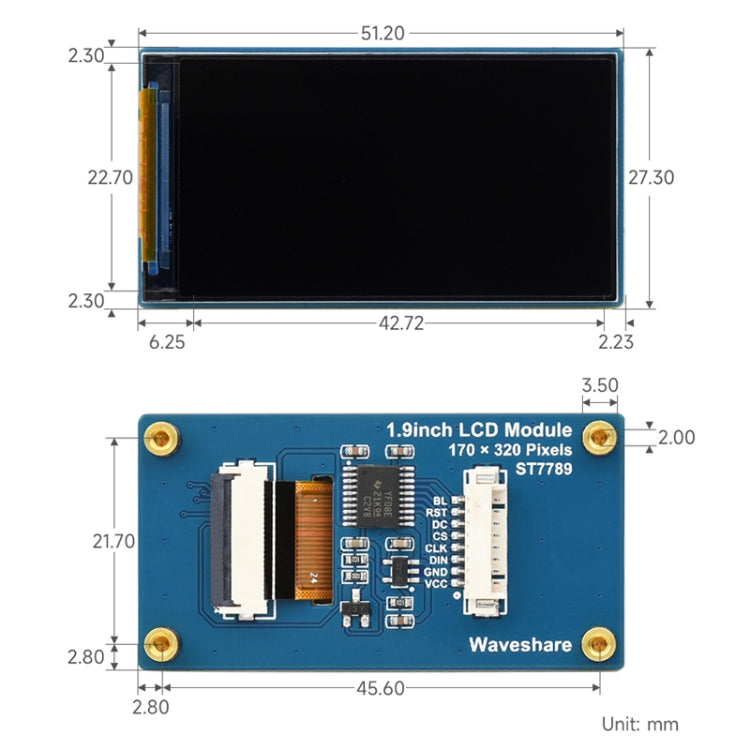

- Display Size: 22.70 × 42.72 mm
- Pixel Size: 0.1335 × 0.1335 mm
- Module Size: 27.3 × 51.2 mm

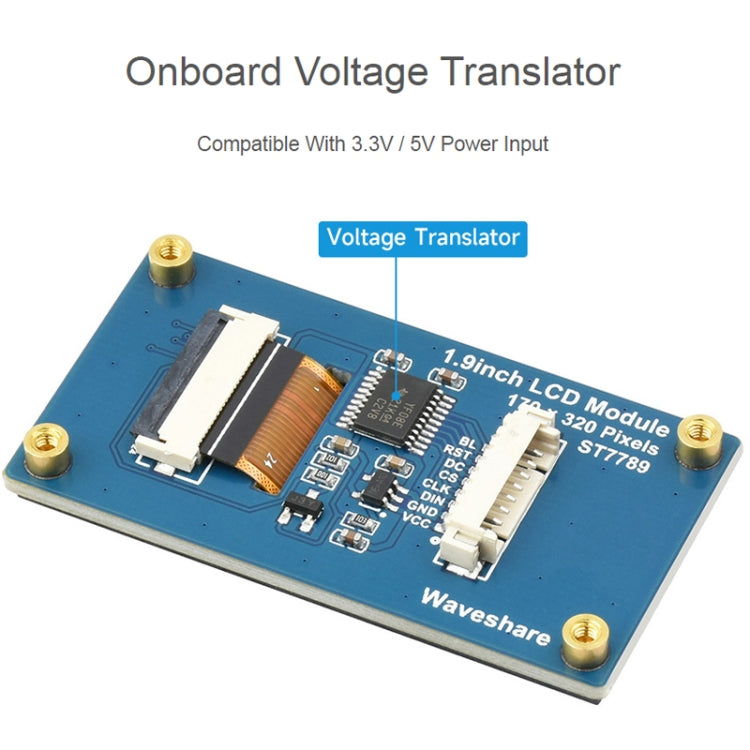

- Onboard Voltage Translator: Compatible with 3.3V / 5V power input

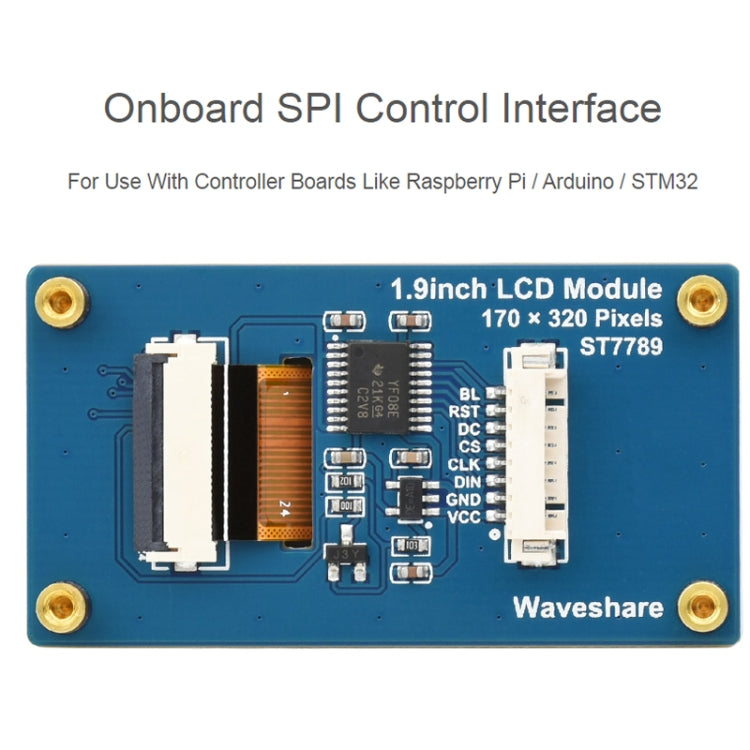

- Onboard SPI Control Interface: For use with controller boards like Raspberry Pi / Arduino / STM32
- Backlight: Yes
- Reset: Low active
- Data/Command Selection: High for data, low for command
- Chip Selection: Low active
- SPI Clock Input: Yes
- SPI Data Input: Yes
- Ground: Yes
- Power Input: 3.3V / 5V
