Description

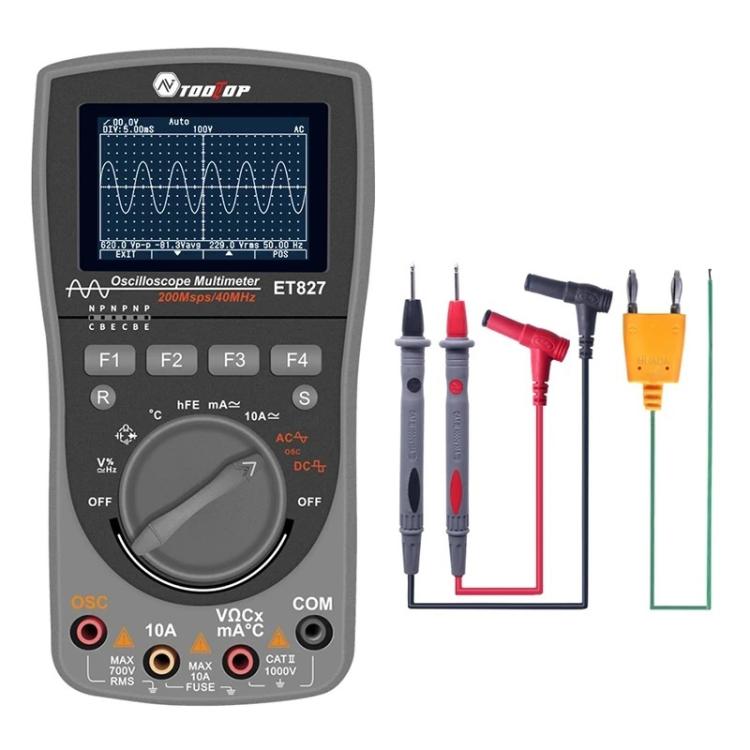

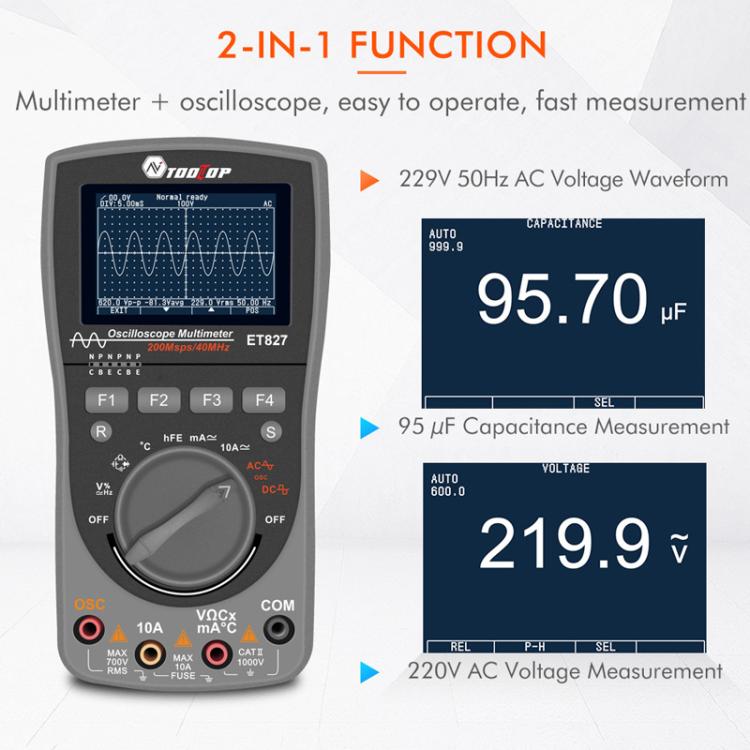

The TOOLTOP ET827 is a digital multimeter and oscilloscope combined into one device. It is suitable for everyday use in various testing applications, such as measuring voltage, current, and resistance.
- Product Type: Digital Multimeter and Oscilloscope
- Compatibility: Oscilloscope
- Display: 240 x 160 pixel LCD
- Backlight: Black screen with white backlight
- Impedance: 10 megohm
- Battery: Requires 3 AA batteries (not included)
- Auto Power Off: No operation within 15 minutes

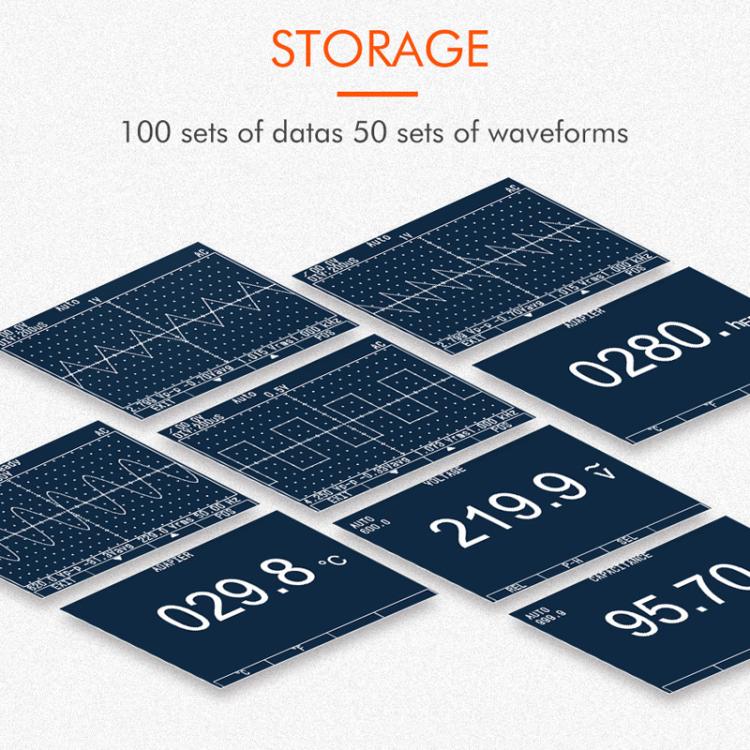

- Storage: 100 sets of data, 50 waveforms
- Operating Environment: 0 - 40 degrees Celsius, less than 75% RH
- Storage Environment: -10 - 60 degrees Celsius, less than 90% RH

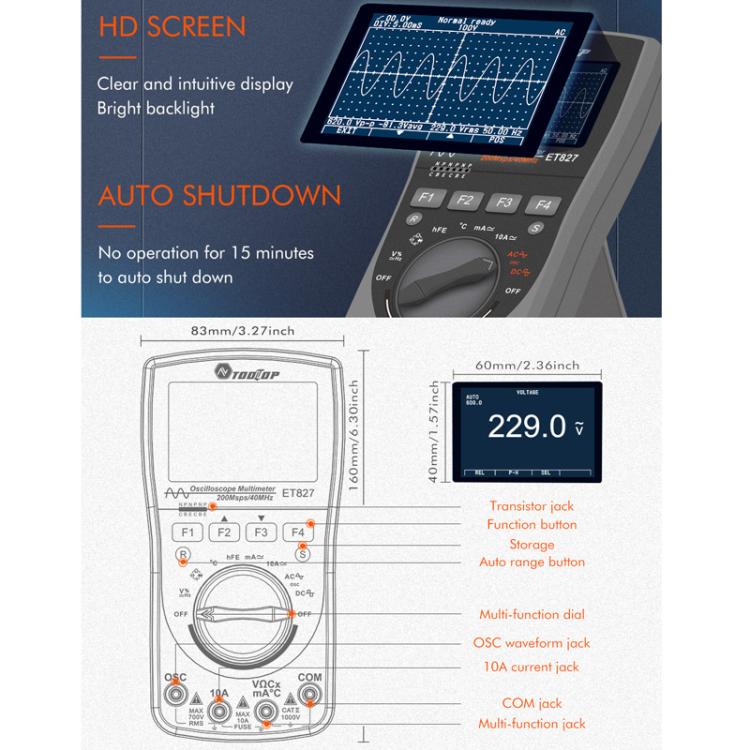

- Display Area: Approximately 6 x 4 cm
- Dimensions: Approximately 8.3 x 16 x 3.2 cm
- Weight: Approximately 210 g

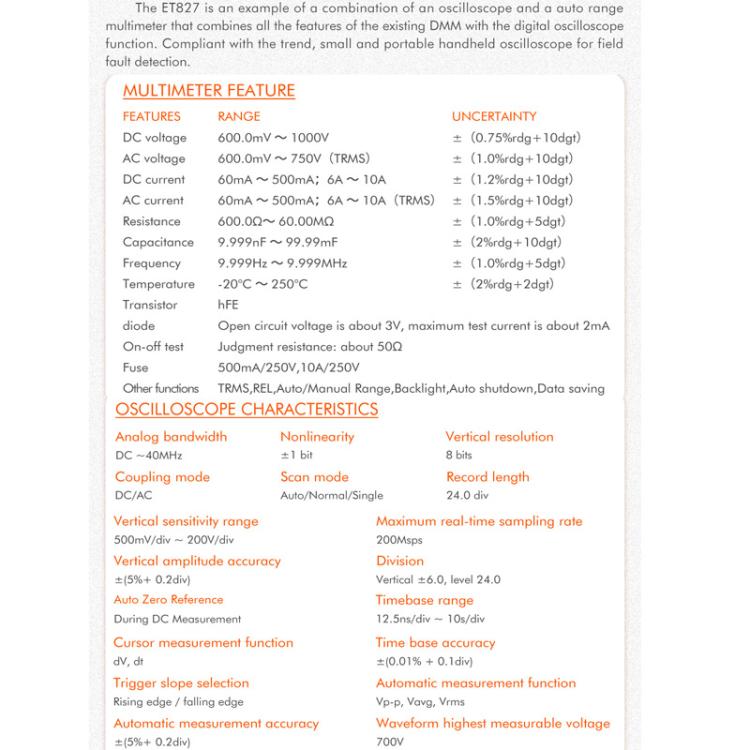

- Analog Bandwidth: 40 MHz
- Nonlinearity: +/- 1 bit
- Vertical Resolution: 8 bits
- Coupling Mode: AC/DC

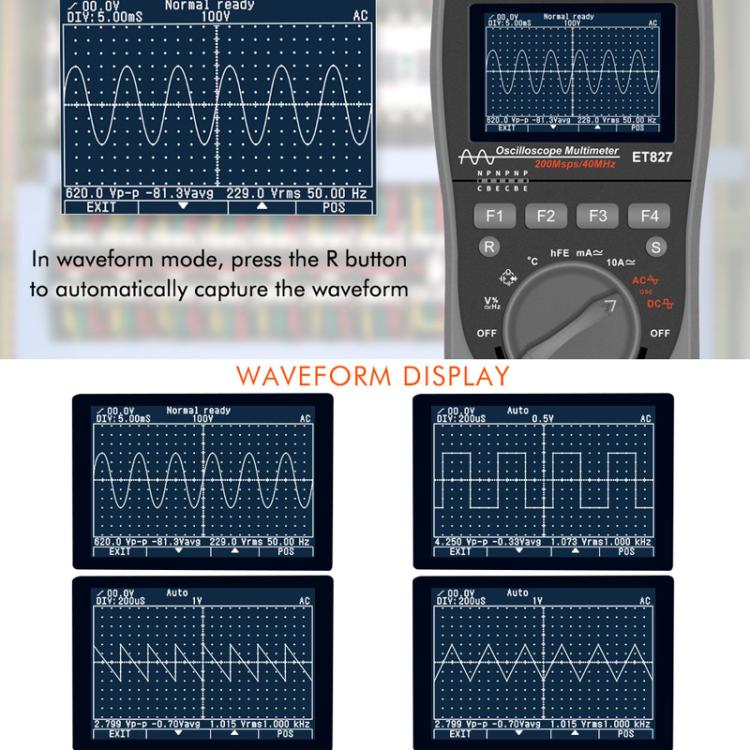

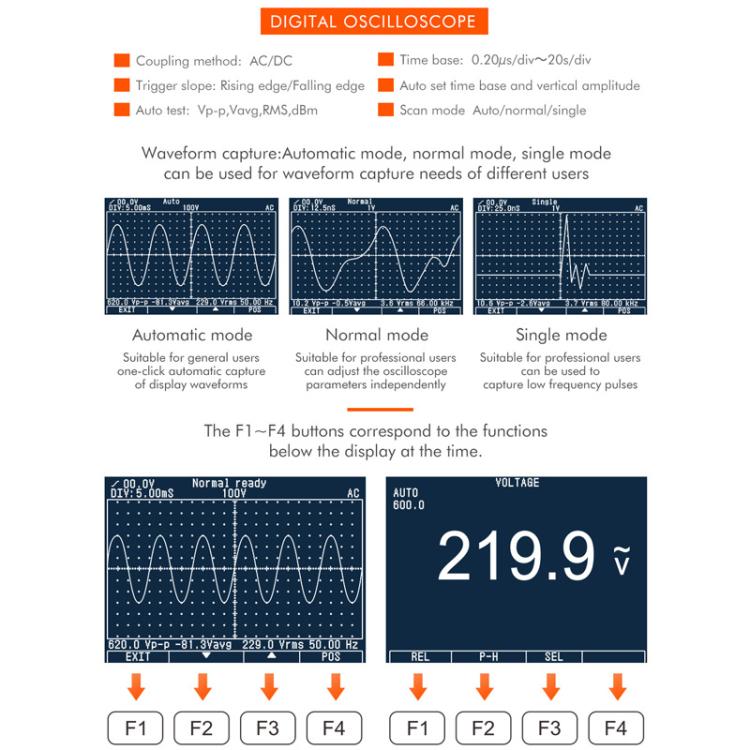

- Sweep Mode: Auto / Normal / Single
- Record Length: 24.0 div
- Vertical Sensitivity Range: 500 mV/div - 200 V/div

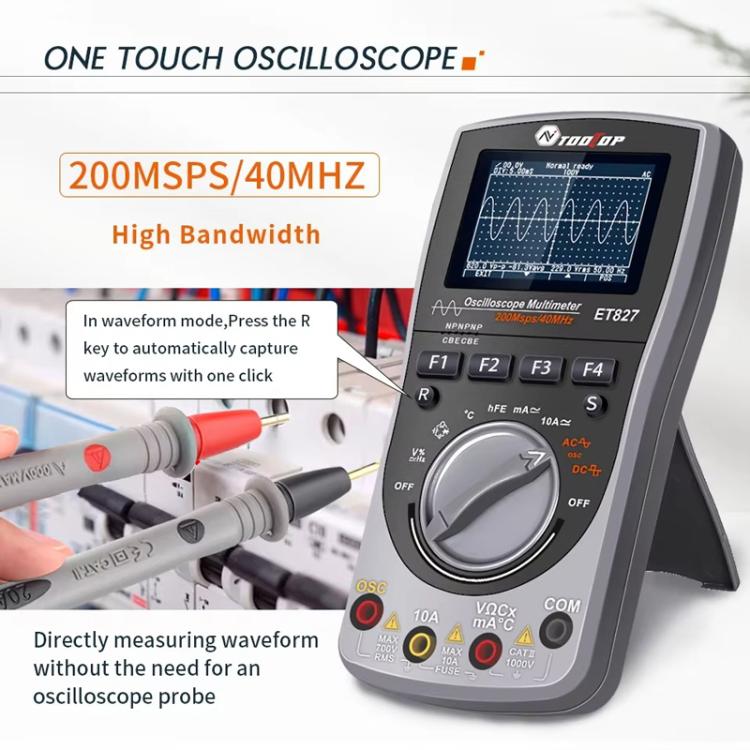

- Maximum Real-Time Sampling Rate: 200 Msps
- Vertical Amplitude Accuracy: +/-(5% + 0.2 div)
- Scale: Vertical +/- 6.0, Horizontal 24.0
- Automatic Zero Reference: DC measurement
- Time Base Range: 12.5 ns/div - 10 s/div
- Cursor Measurement Function: dV, dt
- Time Base Accuracy: +/-(0.01% + 0.1 div)
- Trigger Slope Selection: Rising edge/Falling edge
- Automatic Measurement Function: Peak-to-peak value, average value, effective value
- Automatic Measurement Accuracy: +/-(5% + 0.2 div)
- Highest Measurable Voltage of Waveform: 700 V
- DC Voltage Range: 600 mV - 1000 V +/- (0.75% rdg + 10 dgt)
- AC Voltage Range: 600 mV - 750 V (TRMS) +/- (1.0% rdg + 10 dgt)
- DC Current Range: 60 mA - 500 mA, 6 A - 10 A +/- (1.2% rdg + 10 dgt)
- AC Current Range: 60 mA - 500 mA, 6 A - 10 A (TRMS) +/- (1.5% rdg + 10 dgt)
- Resistance Range: 600.0 ohms - 60.00 megohms +/- (1.0% reading + 5 digits)
- Capacitance Range: 9.999 nF - 99.99 mF +/- (2% reading + 10 digits)
- Frequency Range: 9.999 Hz - 9.999 MHz +/- (1.0% reading + 5 digits)
- Temperature Range: -20 degrees Celsius - 250 degrees Celsius +/- (2% reading + 10 digits)
- Transistor: hFE
- Diode: Open circuit voltage is 3 V, maximum test current is 2 mA
- Switch Test: Judge resistance is about 50 ohms

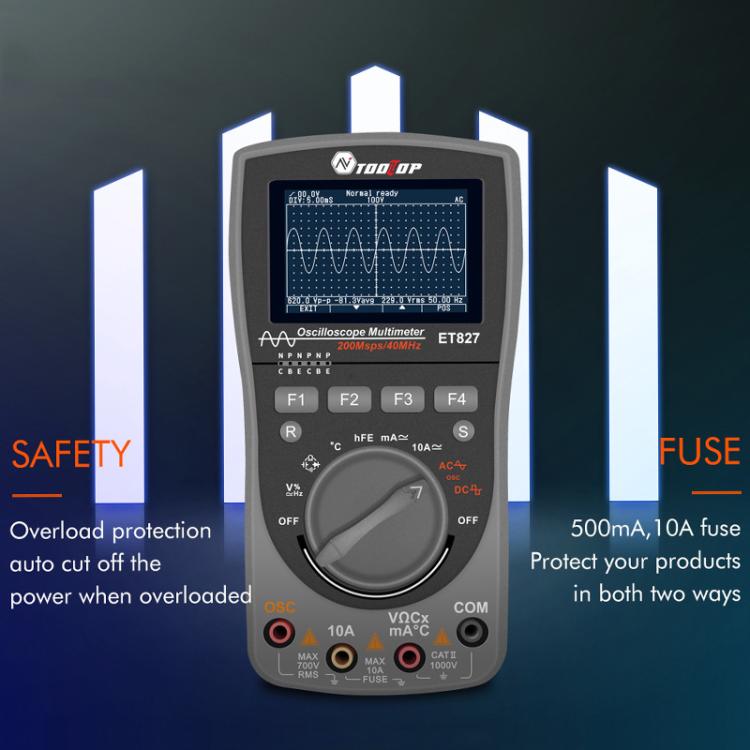

- Fuse: 500 mA/250 V, 10 A/250 V

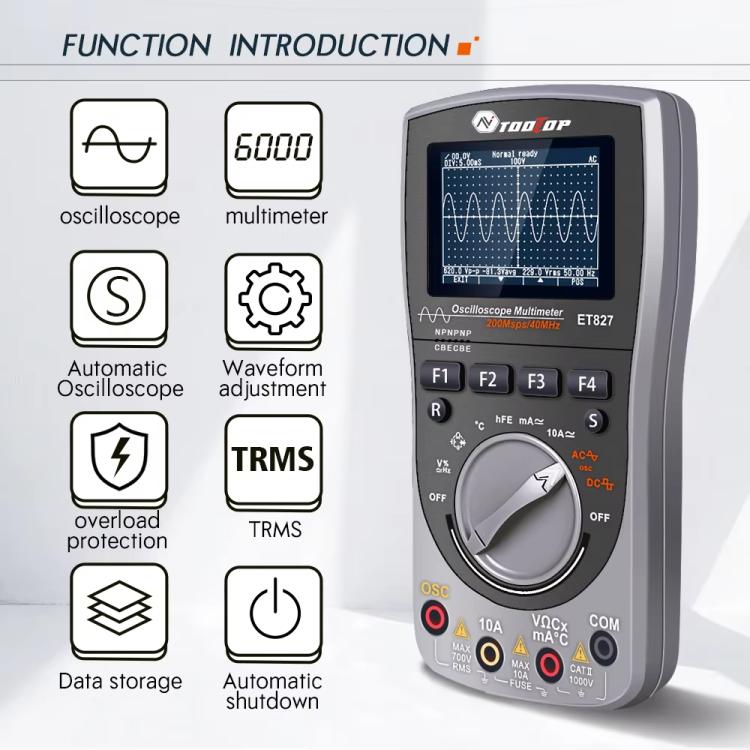

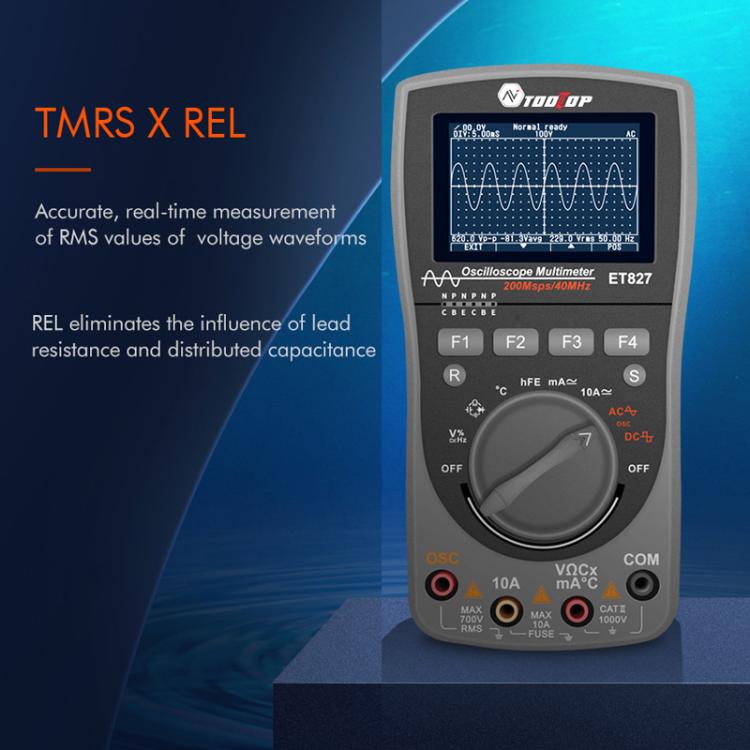

- Other Functions: True RMS measurement, relative measurement, automatic/manual range, backlight, automatic shutdown, data storage
