STLINK-V3SET, Modular Debugger / Programmer For STM32 / STM8
STLINK-V3SET, Modular Debugger / Programmer For STM32 / STM8
Sale
Sold out
Pre-order
Regular price
R 1,859.00
Regular price
Sale price
R 1,859.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: MCU Tools
• Compatibility: STM32 / STM8
• Material: Modular construction
• Key feature: Stand-alone probe with modular extensions
• Color/Variant: N/A
• Intended use: Debugging and programming
• Category: Electronics Module

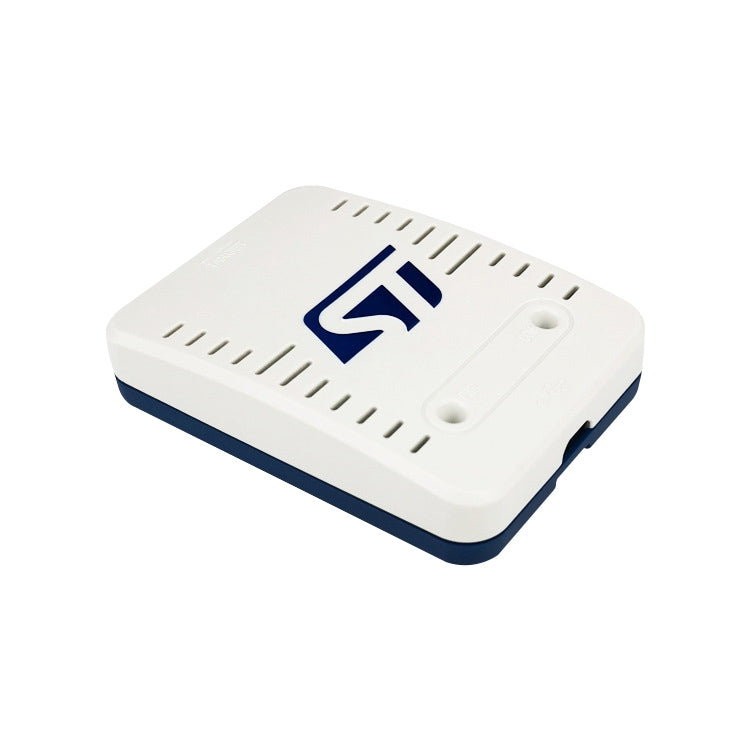

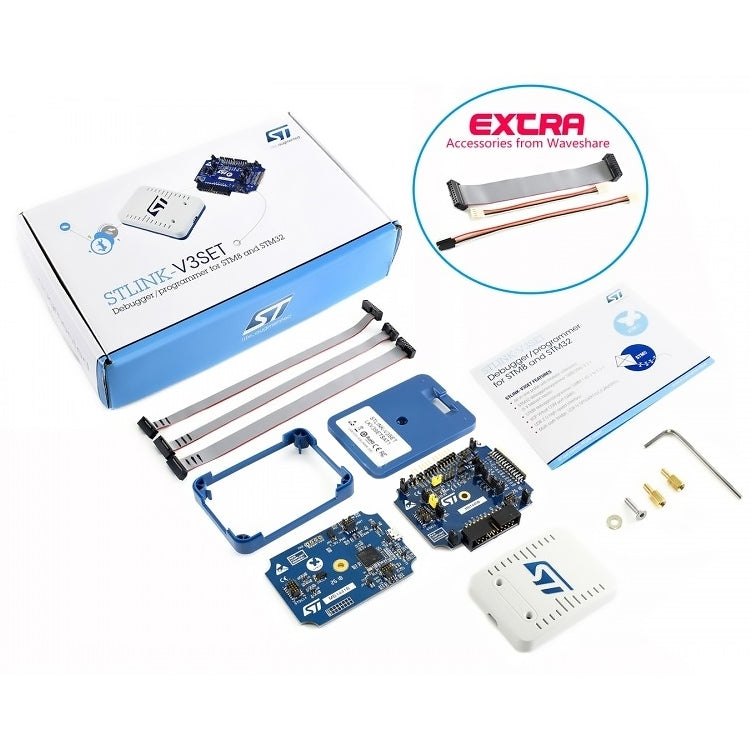

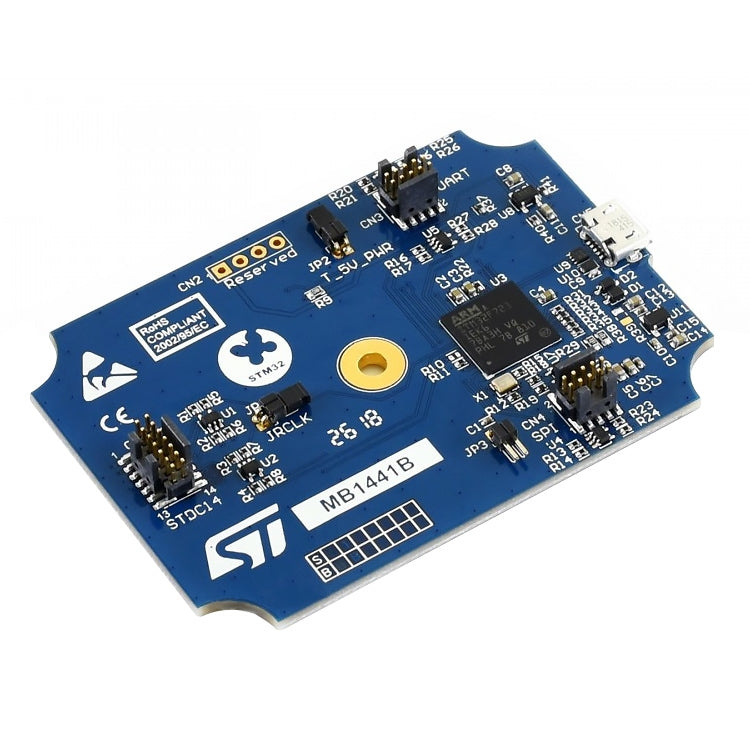

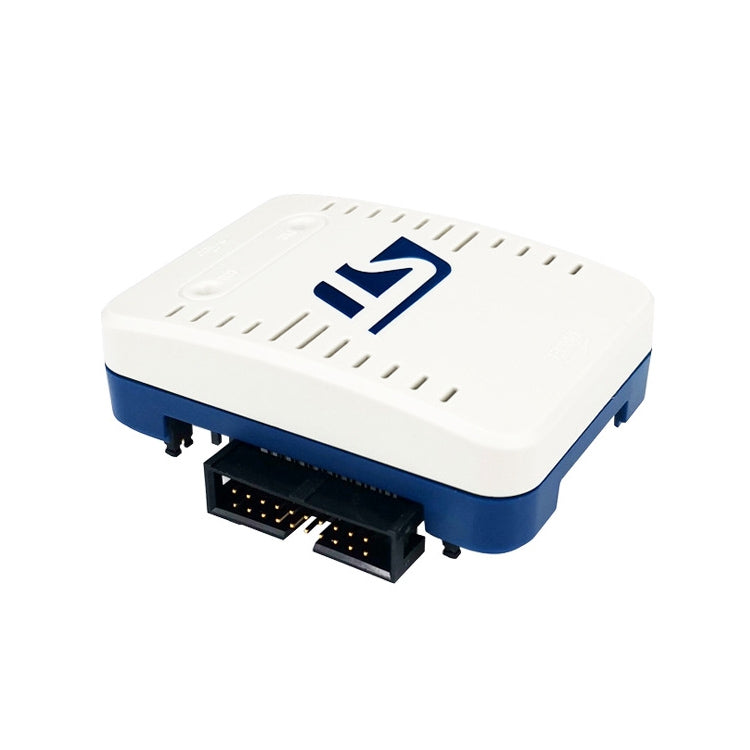

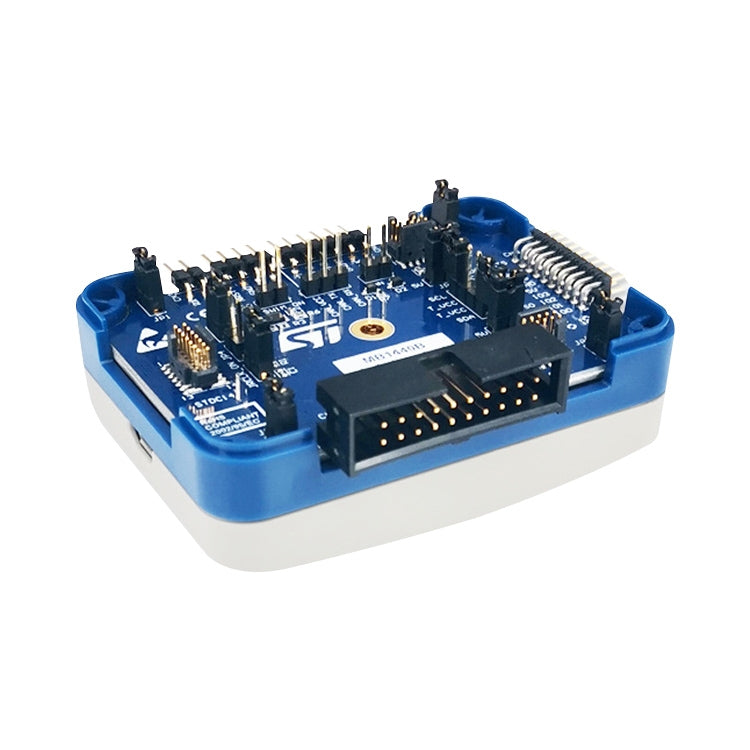

STLINK-V3SET, modular in-circuit debugger and programmer for STM32/STM8. The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board. The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through bootloader. The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board. Key Features include stand-alone probe with modular extensions, self-powered through a Micro-B USB connector, USB 2.0 high-speed compatible interface, direct firmware update support, and various voltage support features for SWD, SWIM, and Virtual COM port interfaces. Supported Software includes STM32CubeProgrammer, KEIL RVMDK, IAR EWARM, and GCC-based IDEs. Supported Devices include all STM8 MCUs with SWIM interface and all STM32 MCUs with JTAG/SWD interface. Package Contents include STLINK-V3SET, USB type A plug to micro B plug cable, 20-pin JTAG/SWD flat ribbon, SWIM dual 4-pin connectors cable, and SWIM 4-pin connector to separated pins cable.
• Compatibility: STM32 / STM8
• Material: Modular construction
• Key feature: Stand-alone probe with modular extensions
• Color/Variant: N/A
• Intended use: Debugging and programming
• Category: Electronics Module
STLINK-V3SET, modular in-circuit debugger and programmer for STM32/STM8. The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board. The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through bootloader. The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board. Key Features include stand-alone probe with modular extensions, self-powered through a Micro-B USB connector, USB 2.0 high-speed compatible interface, direct firmware update support, and various voltage support features for SWD, SWIM, and Virtual COM port interfaces. Supported Software includes STM32CubeProgrammer, KEIL RVMDK, IAR EWARM, and GCC-based IDEs. Supported Devices include all STM8 MCUs with SWIM interface and all STM32 MCUs with JTAG/SWD interface. Package Contents include STLINK-V3SET, USB type A plug to micro B plug cable, 20-pin JTAG/SWD flat ribbon, SWIM dual 4-pin connectors cable, and SWIM 4-pin connector to separated pins cable.
