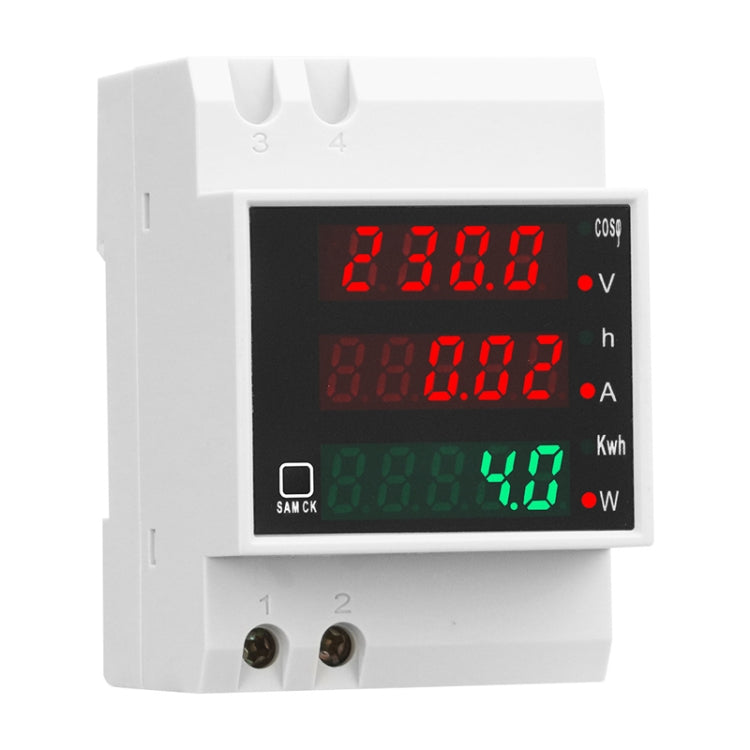

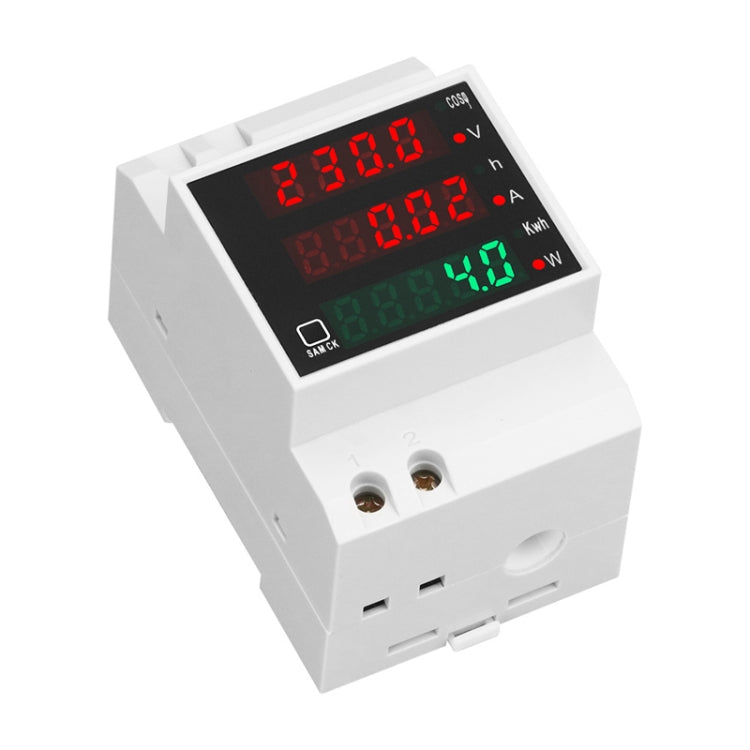

SINOTIMER SDM004 Din Rail AC Voltage Current Time Power Electricity Multi-Function Detection Meter

Name: SINOTIMER SDM004 Din Rail AC Voltage Current Time Power Electricity Multi-Function Detection Meter
Brand: SINOTIMER
SKU: TBD06046274
Price: 489.00 ZAR
Availability: InStock

R 489.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Measurement accuracy: 1+/-2 percent of the word

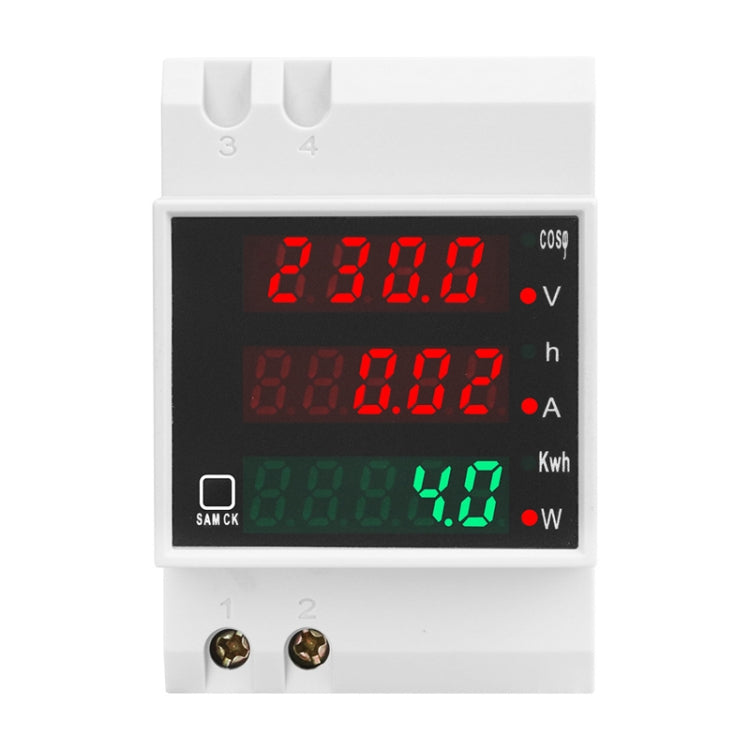

2. Display: voltage display 4 red 0.31-inch LED digital tube, current and time cumulative display using 5-digit, red 0.31-inch LED digital tube active power, electrical energy (degrees) display using 5-bit, green 0.31-inch LED digital tube
3. Measuring range:
- Voltage: AC80-300V
- Current: AC0-100A, measuring current less than 100A current display resolution of 0.01A, measuring current greater than 100A current display resolution of 0.1A, range automatic conversion
- Active power: 0-30000W
- Electricity power: 0.000-99999kwh
- Time accumulation: 0.00-999.59h
- Power factor: 1.000-0.000
4. Measuring speed: 2 times/s
5. Installation width: equal to the instrument occupies 3P air switch position

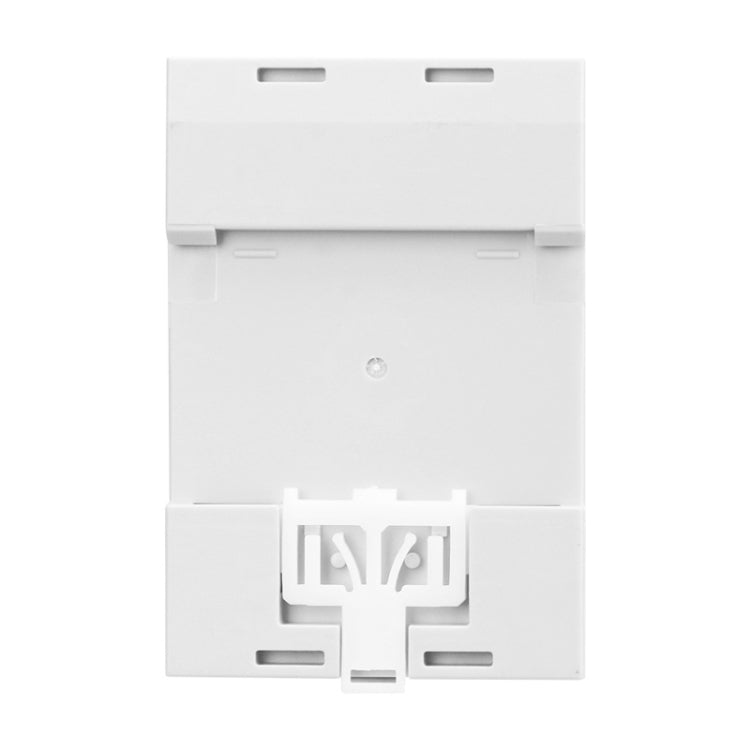

6. Installation mode: rail type (shipment without rail)

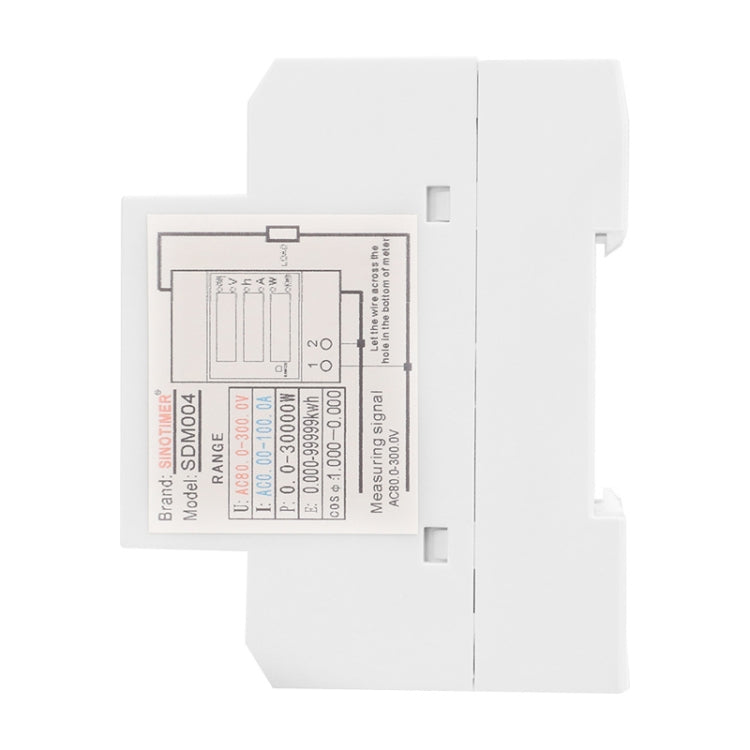

7. Built-in transformer: the measurement circuit of the wire through the right side of the meter hole
8. Function: display the measured AC voltage, AC current, power factor, active power, electrical energy and timing time of electrical energy on the meter at the same time
9. Size: 54 x 80 x 64mm
