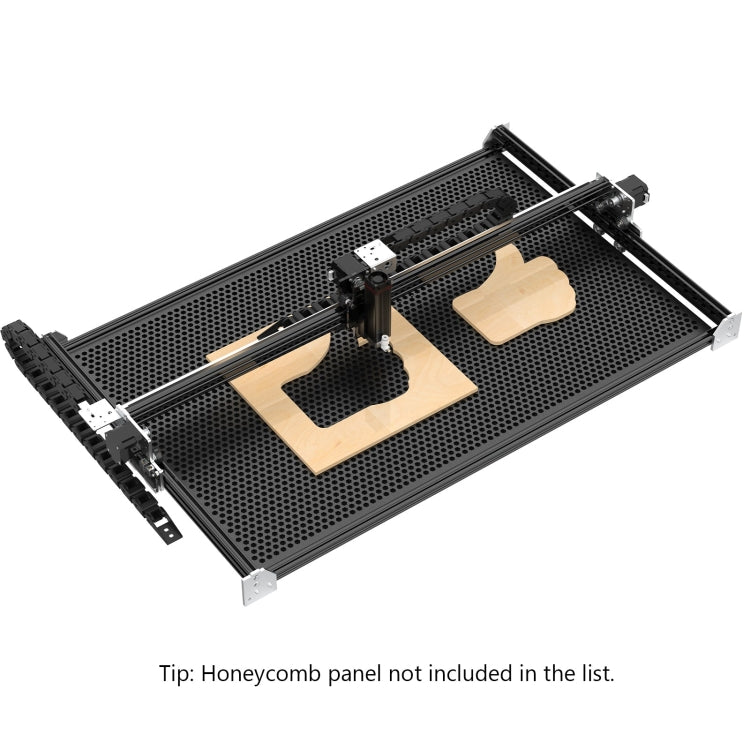

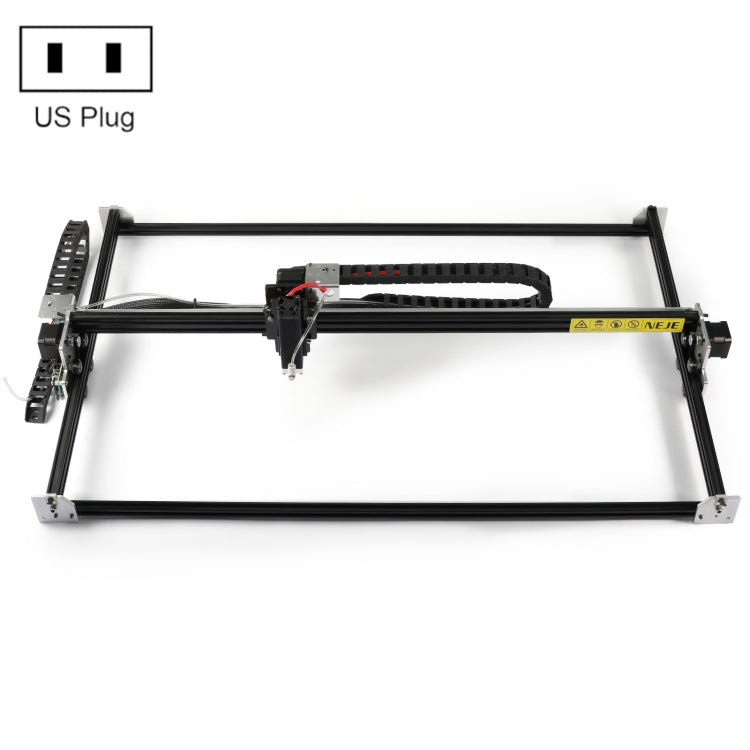

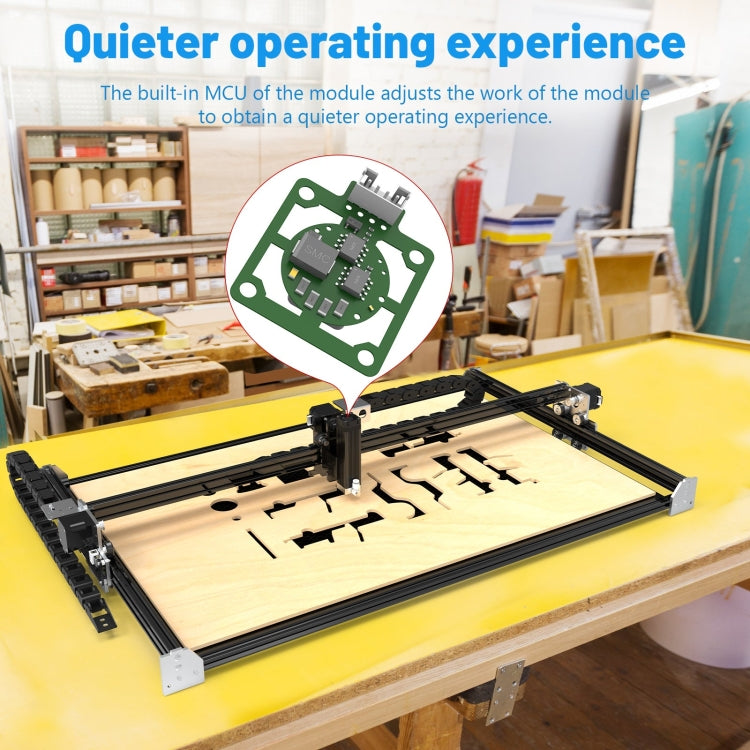

NEJE MASTER 3 MAX Laser Engraver with E30130 Laser Module(US Plug)

NEJE MASTER 3 MAX Laser Engraver with E30130 Laser Module is a laser engraving machine designed for precision engraving and cutting. It is suitable for various materials and can be used in both professional and hobbyist applications.

• Frame Size: 590 x 980 x 160 mm

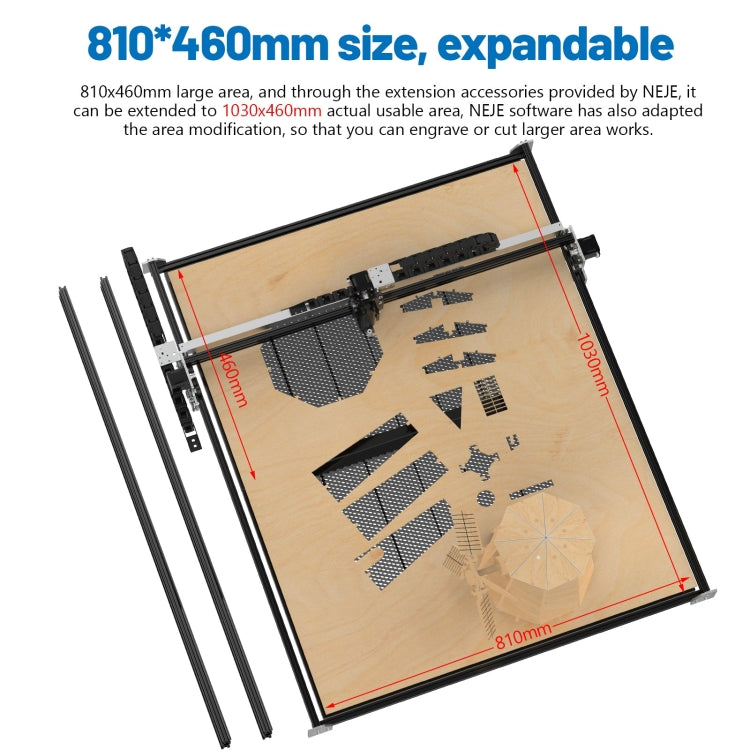

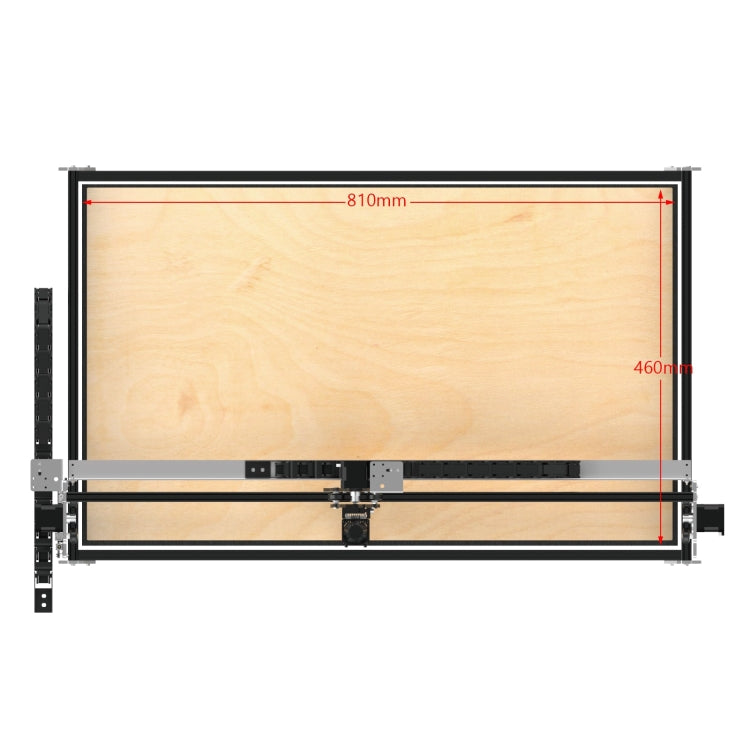

• Working Size: 460 x 810 mm
• Dot Pitch: 0.075 mm
• Pixel Resolution: 6133 x 10800 px
• Frame Material: All-aluminum alloy and PC material hybrid frame
• Structure Technology: Y-axis fit adjustable design, X-axis stress fit assembly
• Motor Size: 42 x 42 x 40 mm
• Motor Drive Current: 0.9 A
• Max Move Speed: X: 1000 mm/s (with A40640 module 204g), Y: 750 mm/s
• MCU: 32-bit MCU
• Input Voltage: 12V

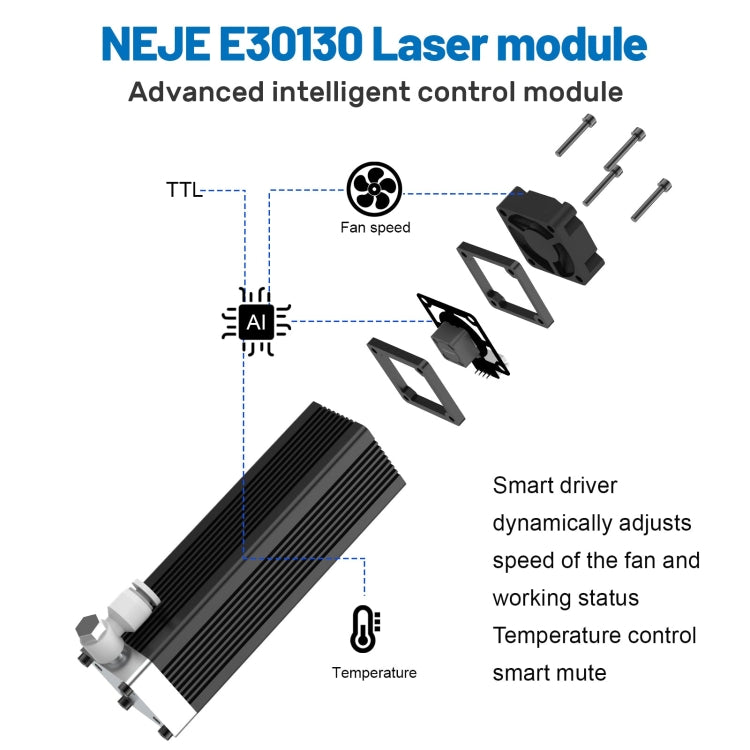

• Compatible Modules: All NEJE 12V 4-pin Laser Modules

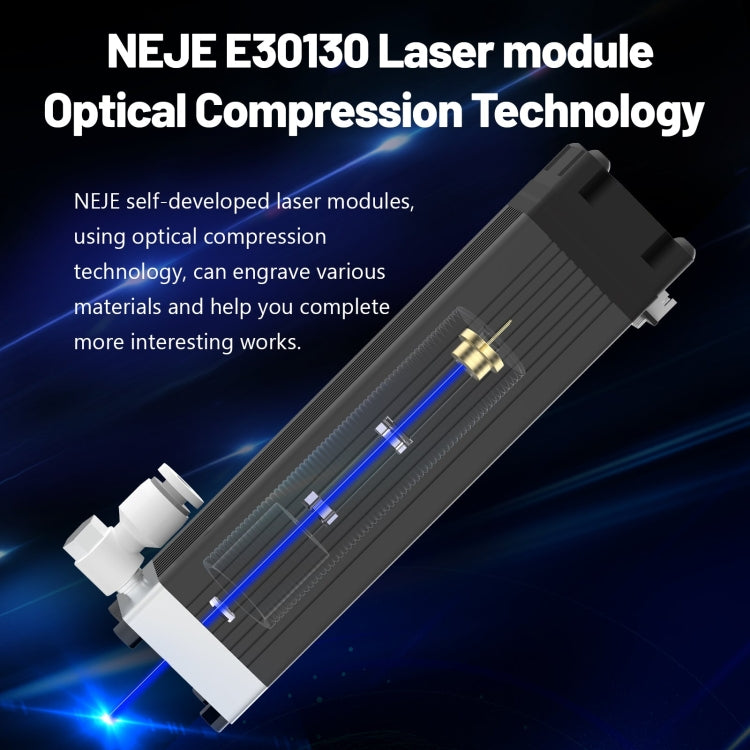

• Optical Power: 5W
• Wavelength: 450 nm
• Laser Class: Class 4
• Number of Diodes: 1
• Focus Spot Size (20 mm): 0.13 x 0.13 mm
• PWM Input: VPP (3.3-12V), Recommended 1 kHz
• Fan Speed: 15000 RPM (Double ball bearing)
• Interface: PH2.0 4Pin
• Drive Design: Built-in
• Heat Dissipation: Internal thread high-efficiency design

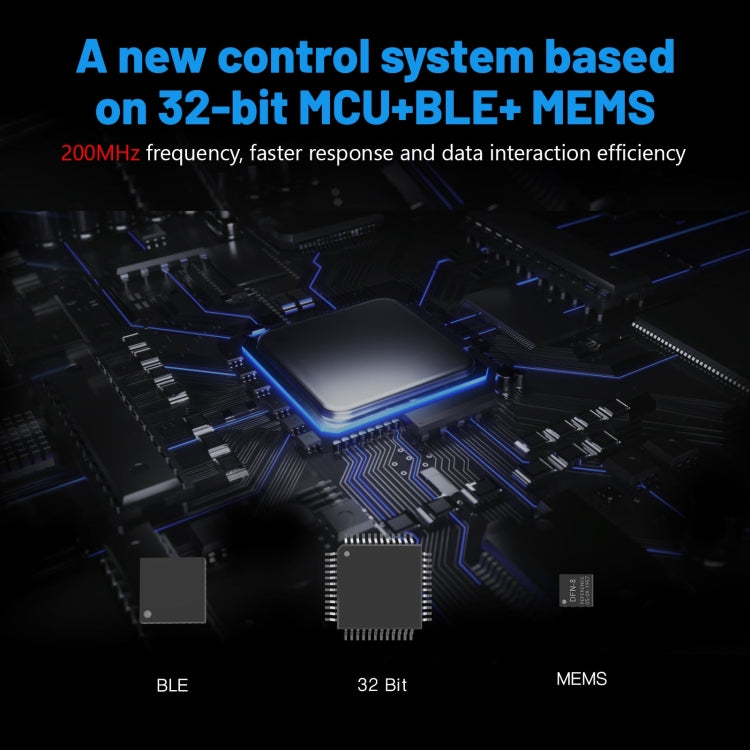

• Processor: 32-bit 200 MHz processor with BLE and MEMS mobile control system

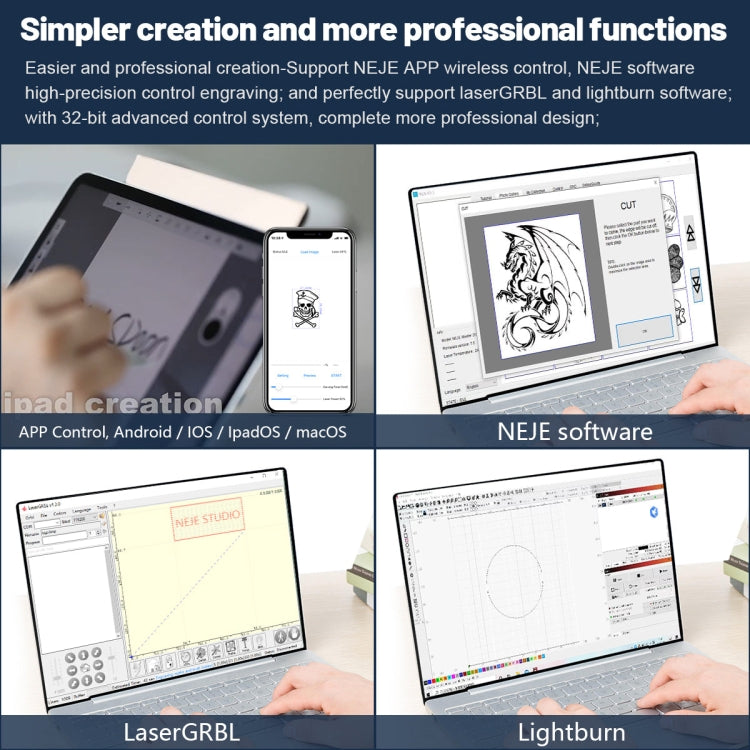

• Software Compatibility: NEJE Win software, NEJE Android APP, LseerGRBL, Lightburn
• Offline Operation: Supports offline use after file transfer
• Warranty: 2 years free warranty on the module
