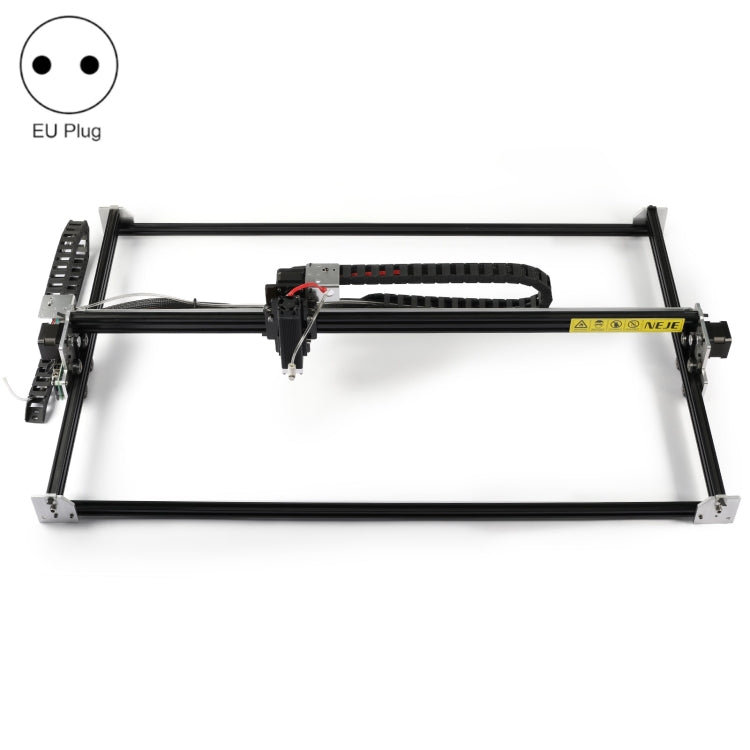

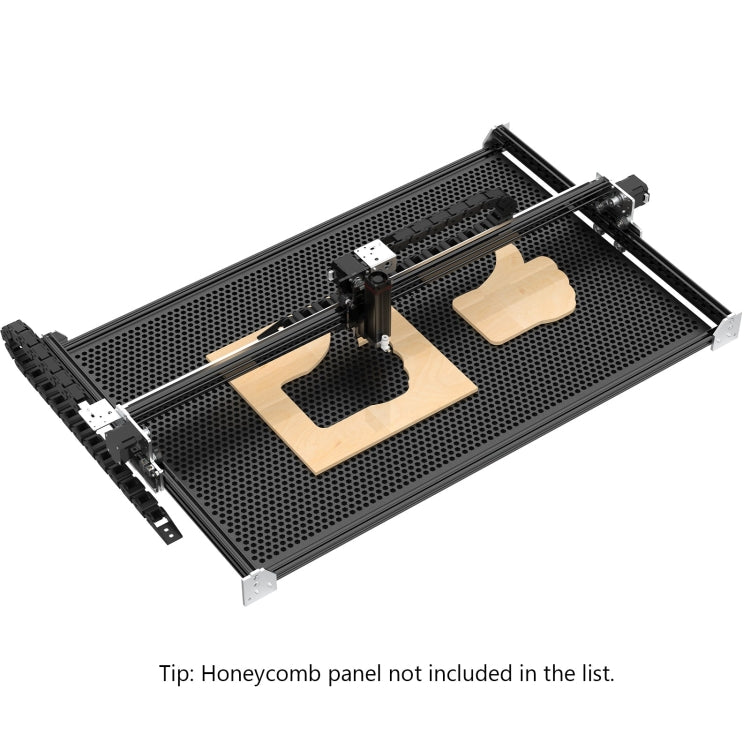

NEJE MASTER 3 MAX Laser Engraver with E30130 Laser Module(EU Plug)

NEJE MASTER 3 MAX Laser Engraver is designed for engraving and cutting materials with precision. It is suitable for various applications, including DIY projects and professional engraving tasks.

• Frame Size: 590 x 980 x 160 mm

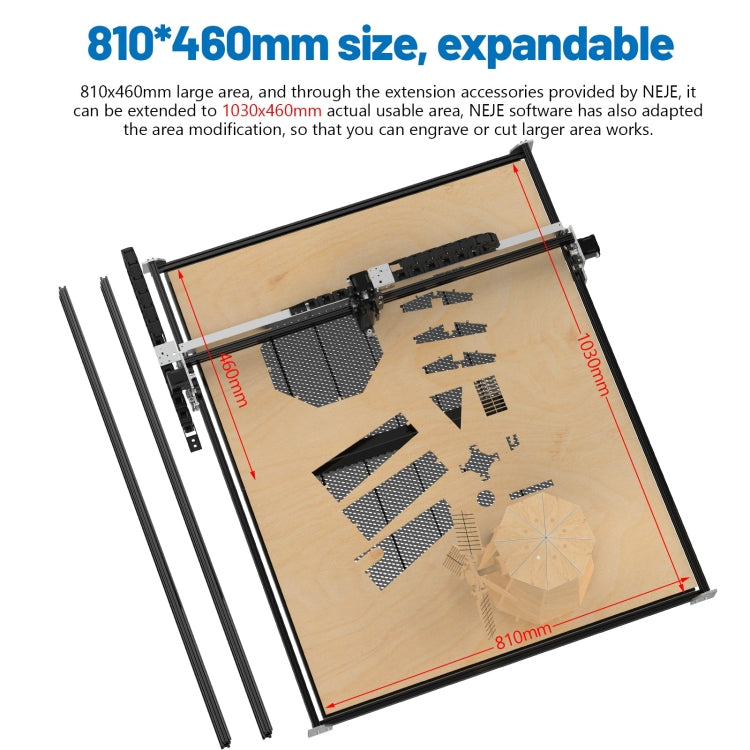

• Working Size: 460 x 810 mm
• Dot Pitch: 0.075 mm
• Pixel Resolution: 6133 x 10800 px
• Frame Material: All-aluminum alloy and PC material hybrid frame
• Structure Technology: Y-axis fit adjustable design, X-axis stress fit assembly
• Motor Size: 42 x 42 x 40 mm
• Motor Drive Current: 0.9 A
• Max Move Speed: X: 1000 mm/s (with A40640 module 204g), Y: 750 mm/s
• MCU: 32-bit MCU
• Input Voltage: 12V
• Compatible Modules: All NEJE 12V 4-pin Laser Modules
• Optical Power: 5W
• Wavelength: 450 nm
• Laser Class: Class 4
• Focus Spot Size (20 mm): 0.13 x 0.13 mm
• PWM Input: VPP (3.3-12V), Recommended 1 kHz

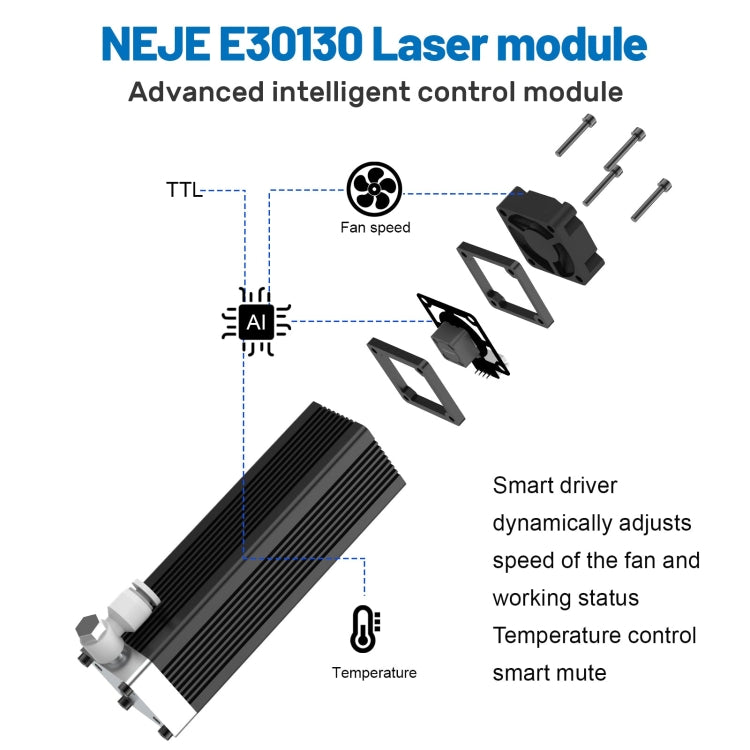

• Cooling System: Internal thread high-efficiency heat dissipation design

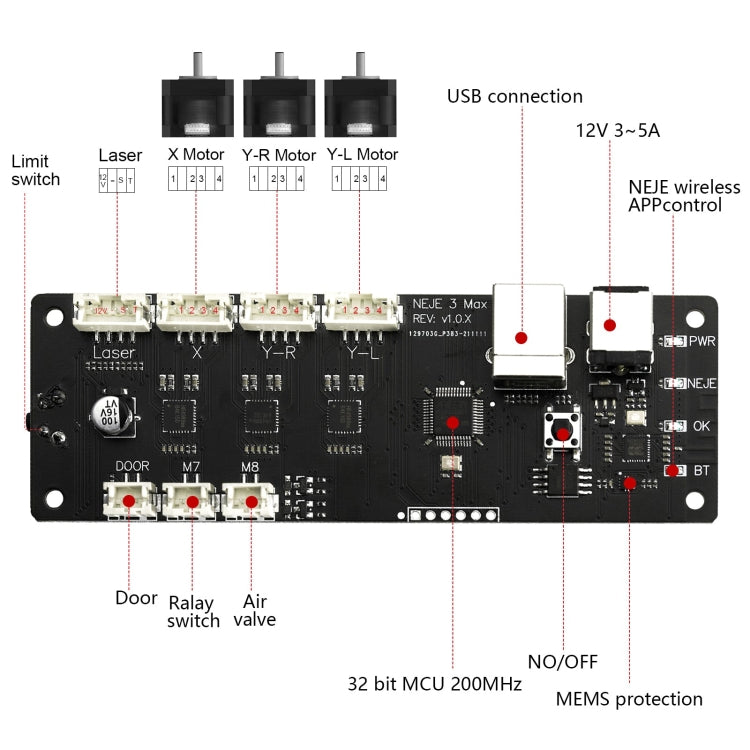

• Control System: 32-bit 200 MHz processor, BLE, MEMS mobile control system

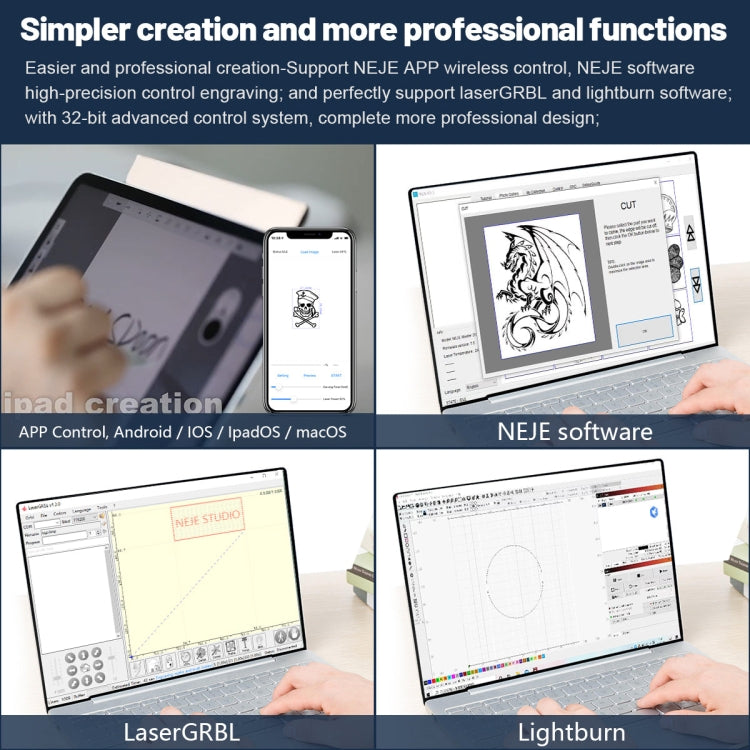

• Software Compatibility: NEJE Win software, NEJE Android APP, LseerGRBL, Lightburn
• Offline Operation: Supports offline use after file transfer
• Warranty: 2 years free warranty on the module
