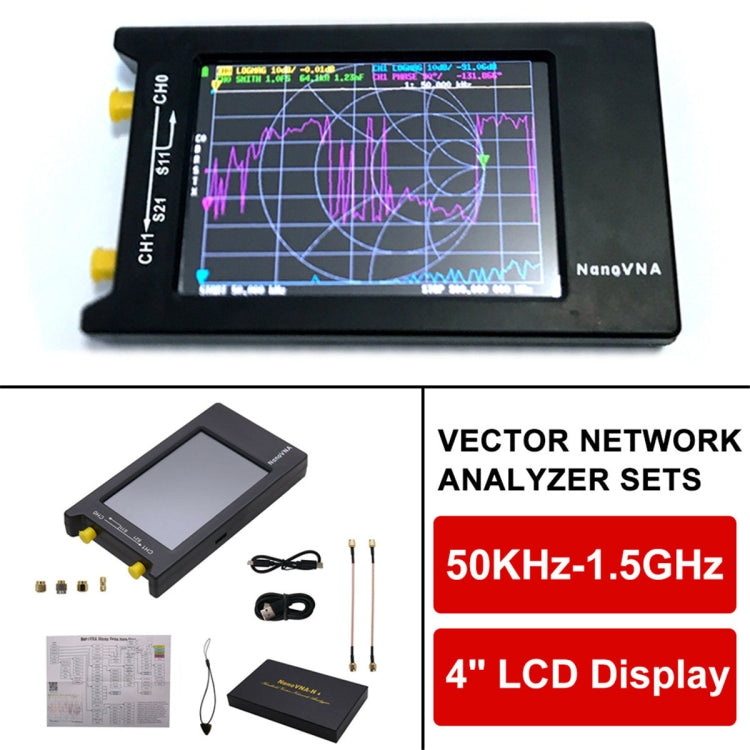

NanoVNA-H4 4 Inch Full View LCD Screen 50Khz-1.5Ghz VNA HF VHF UHF UV Vector Network Analyzer

Name: NanoVNA-H4 4 Inch Full View LCD Screen 50Khz-1.5Ghz VNA HF VHF UHF UV Vector Network Analyzer
Brand: PMC Jewellery
SKU: TBD05999544
Price: 2109.00 ZAR
Availability: InStock

R 2,109.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. A 4-inch LCD screen is used. Due to the larger screen, there is more PCB space for installing components and batteries
2. Use an independent charge pump to power the mixer and add tantalum capacitors, which can further reduce power supply noise
3. In order to make it easier for geeks to create more possibilities, UART1 and PC14, PC15 interfaces are drawn on the PCB, which is convenient for DIY expansion
4. ABS shell, can effectively protect SMA connectors and buttons
5. DC dimming is added, it can be seen more clearly when used outdoors, and it is more comfortable to use indoors.
6. Optimized the bridge to make full use of the Si5351s harmonics. Now the 5th harmonic can be used to measure to 1.5GHz;
7. When the fundamental wave is used, the output level of CH0 is increased to 0dBm, and the reflection measurement is more accurate;
8. Solve the previous abnormality of NanoVNA-H near 6MHz
9. The redesigned power management circuit further reduces power noise, reduces USB power interference, reduces charging current, and protects the battery
10. Optimized PCB layout, accommodating 1950mAh battery, more than 8 hours of use

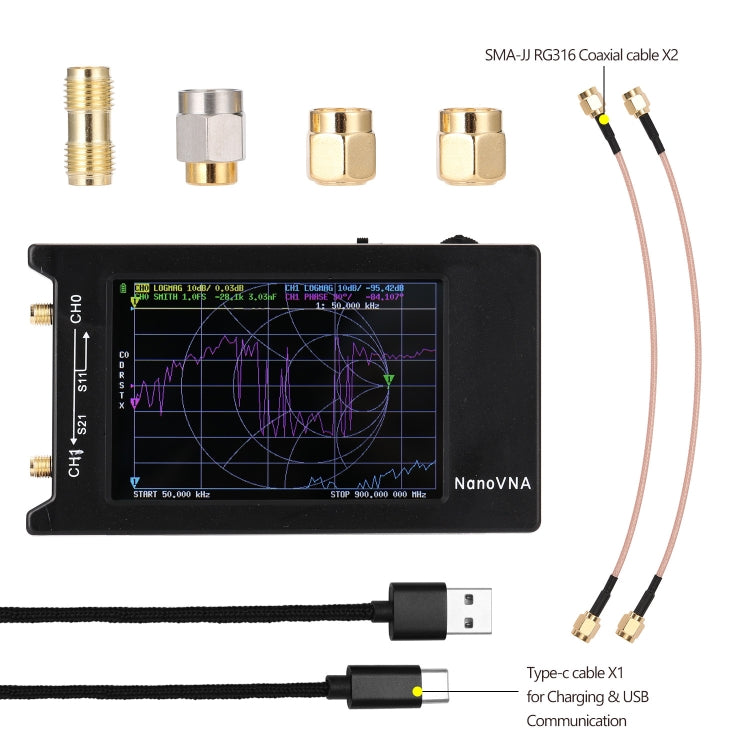

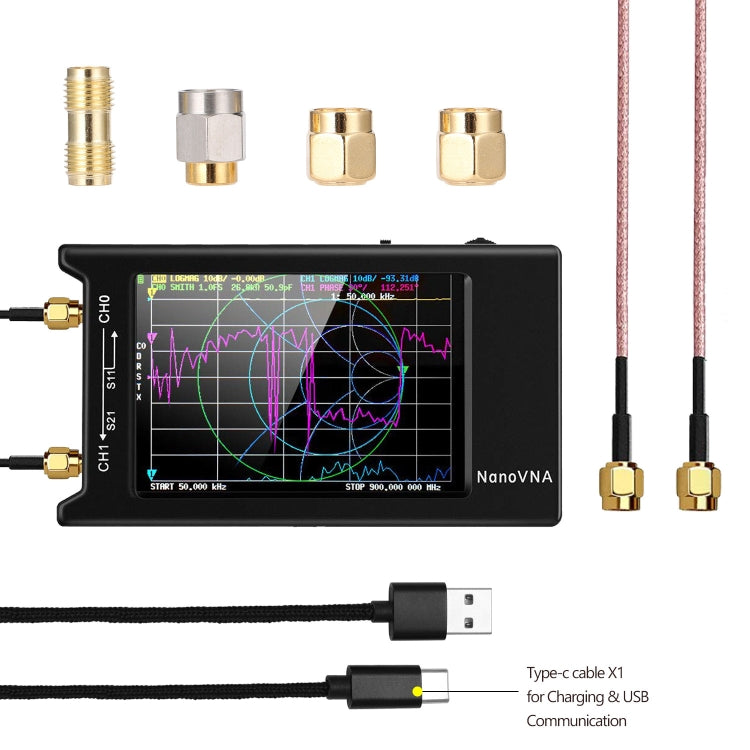

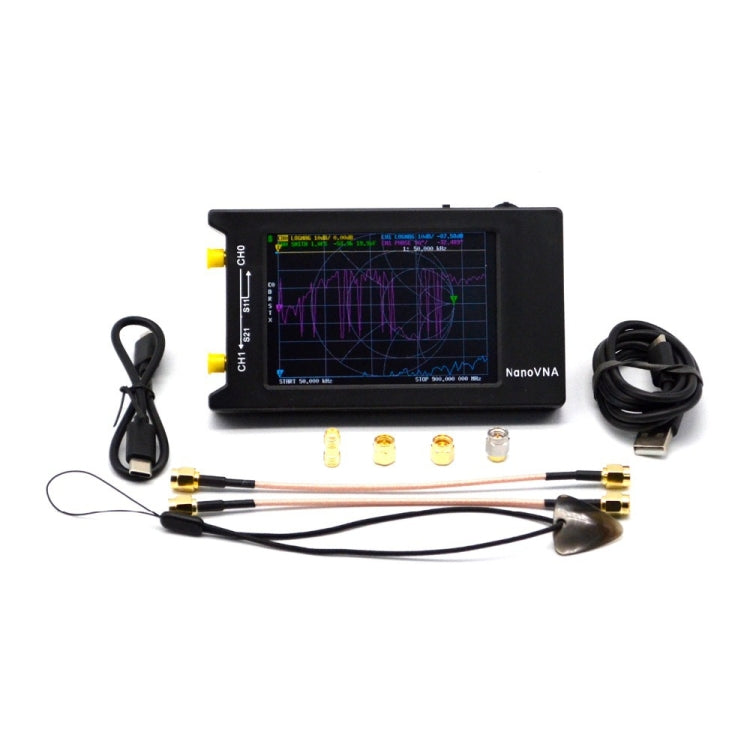

packing list:
1. NanoVNA host x 1 (including 4-inch touch screen, 2000mAh battery)
2. 15cm SMA male to male RG316 RF cable x 2
3. SMA female to female connector x1
4. SMA simple calibration kit SHORT x1
5. SMA simple calibration kit OPEN x1
6. SMA simple calibration kit LOAD x1
7. USB Type-C data cable x1
8. Type-c to Type-c x1 supports connection with most Android phones
9. One pick
