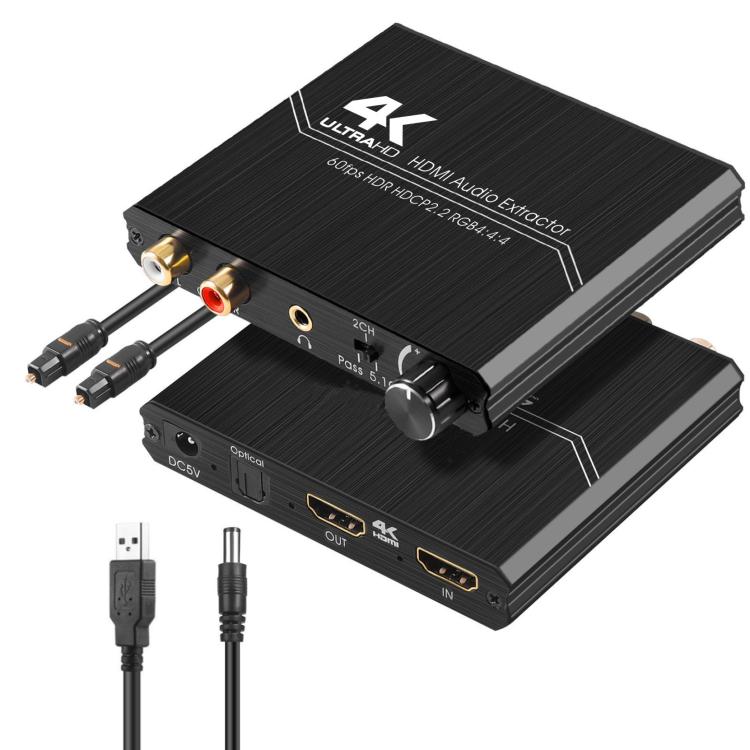

HDMI 2.0 Audio Extractor Support R/L Output And Volume Control 4K/60Hz Audio Splitter EU Plug
HDMI 2.0 Audio Extractor Support R/L Output And Volume Control 4K/60Hz Audio Splitter EU Plug
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R231.96/mo 3 months
- R117.29/mo 6 months
- R61.9/mo 12 months
- From R231.96/month over 3 months, or as low as R61.9/month over 12. Total repayable over 12 months: R742.8. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
HDMI 2.0 Audio Extractor is a splitter designed to separate audio signals from HDMI sources. It is suitable for connecting audio source devices to display devices while providing volume control and R/L output.
- Product Type: Splitter
- Compatibility: HDMI devices
- Material: Not specified
- Color/Variant: Not specified
- HDCP Version: HDCP 2.2
- Input/Output Resolution: 1080p/60fps, 4K/30fps, 4K/60fps
- Deep Color Mode: 4K/60fps-YUV444-8 bit, 4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
- HDMI Maximum Bandwidth: 600MHz
- HDMI Maximum Baud Rate: 18Gbps
- Input and Output TMDS Signal: 0.5-1.5Vp-p (TTL)
- Input and Output DDC Signal: 5Vp-p (TTL)
- DAC Sampling Frequency: 32-192 KHz
- DAC Bit Rate: 16-24 bits
- RCA Analog Output (1kHz 0dB): 1V RMS
- 3.5mm Audio Port Maximum Output Level: 6.5Vp-p
- 3.5mm Audio Port Maximum Output Power: 32 ohms 30mW
- Signal-to-Noise Ratio 0dB (CC1R/ARM): ≥ 90dB
- Distortion: ≤ 0.1%
- Frequency Response: 20Hz-20kHz
- HDMI Input/Output Cable Distance: ≤ 3m AWG26 HDMI standard cable
- Maximum Operating Current: 400mA
- Power Adapter Specifications: AC 100V-240V 50/60Hz, DC 5V/1A
- Operating Temperature Range: -10 to 55 degrees Celsius
- Storage Temperature Range: -20 to 60 degrees Celsius
- Operating Humidity Range: 10-90% RH (no condensation)
- Storage Humidity Range: 5-95% RH (no condensation)
- Size: Approximately 10 x 9.5 x 2 cm
- Net Weight: Approximately 117 g

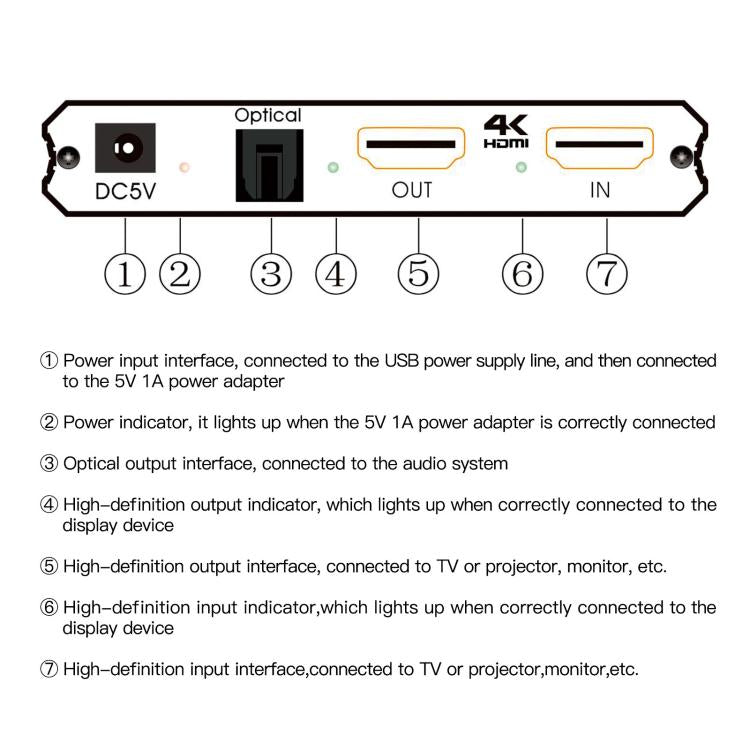

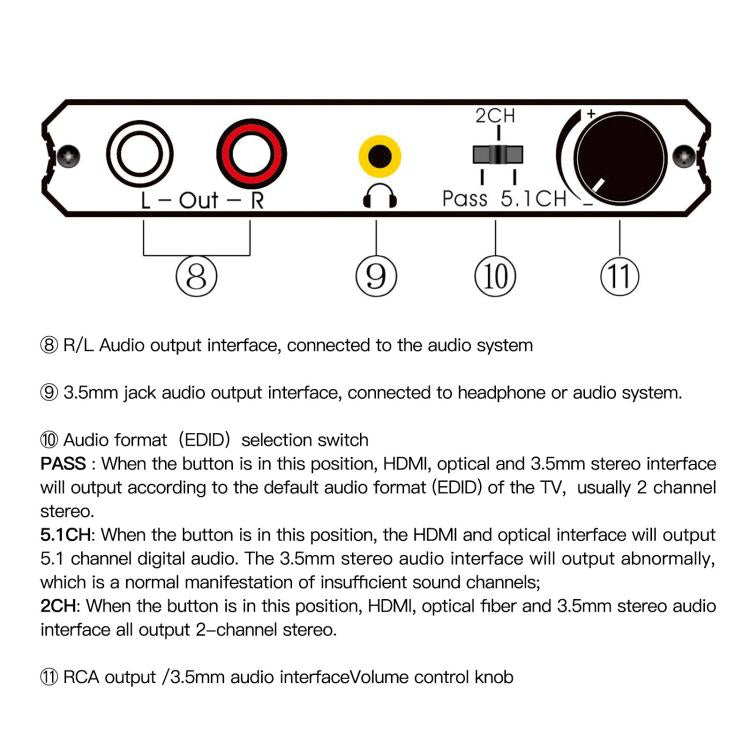

- Functions: Supports 1 HDMI input port, 1 HDMI output port, 1 optical digital audio output port, 1 stereo audio output port, 1 R/L audio output port
- Input Resolution: Up to 4K/60fps
- Volume Adjustment: Yes
- 3D, HDR, and YUV4:4:4 Support: Yes
- Audio Format Support: AC3, DTS, LPCM, and others

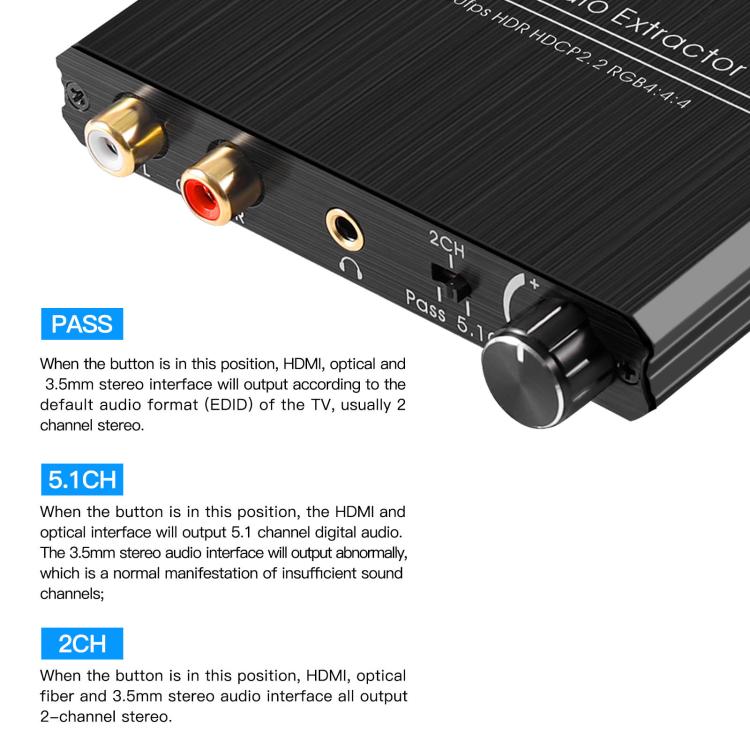

- Audio Output EDID Selection Mode: 2CH/5.1CH/PASS

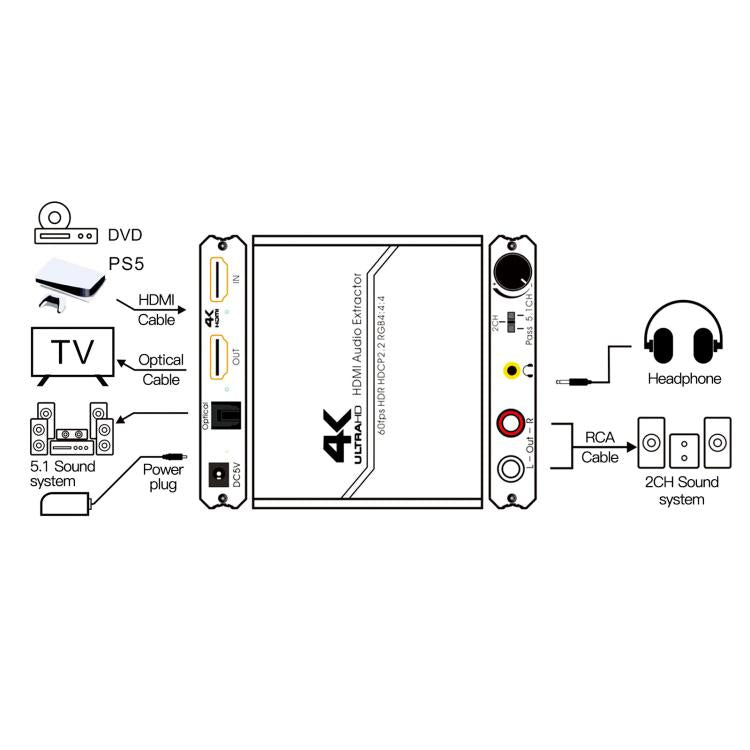

- Functions: Connects audio source devices to display devices, synchronizes optical fiber and R/L signals, connects stereo channels to sound systems, and provides volume control
