Description

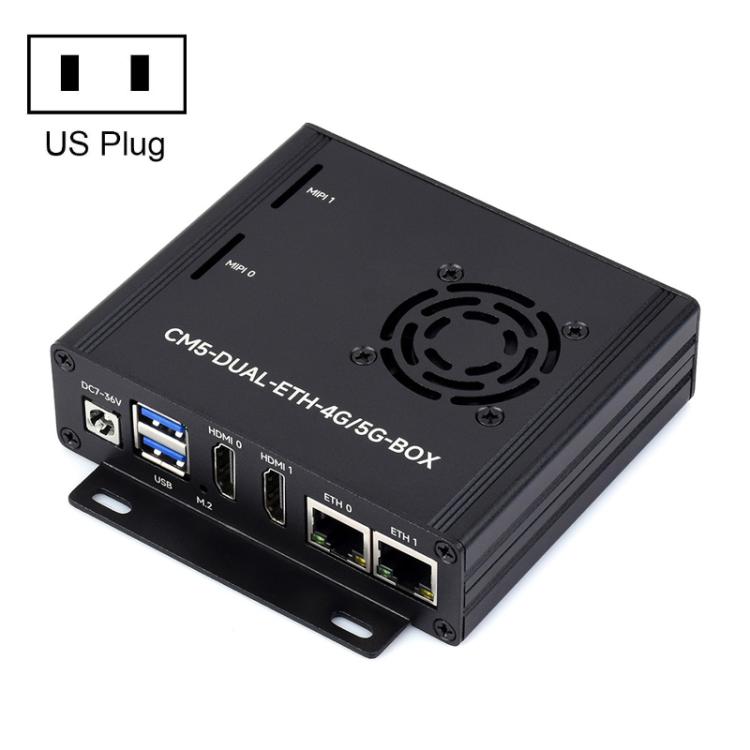

The WAVESHARE Dual Network Port Expansion Board is designed for the Raspberry Pi CM5. It enables enhanced networking capabilities with dual Ethernet ports and support for 4G/5G communication modules.
- Product Type: Raspberry Pi Accessories
- Compatibility: Raspberry Pi CM5
- Material: Metal
- Color/Variant: Not specified
- Size:
- Base Plate: Approximately 9.96 x 8.7 cm
- Housing: Approximately 10.48 x 9 x 2.97 cm
- Networking:
- 1000M Ethernet RJ45 interface
- 2500M Ethernet RJ45 interface
- Connectors:
- Raspberry Pi 40PIN GPIO interface
- USB 3.2 Gen1 x 2
- MIPI: 4-lane MIPI interface x 2 (22PIN 0.5mm FFC connector)
- HDMI connector x 2, supports dual 4K outputs

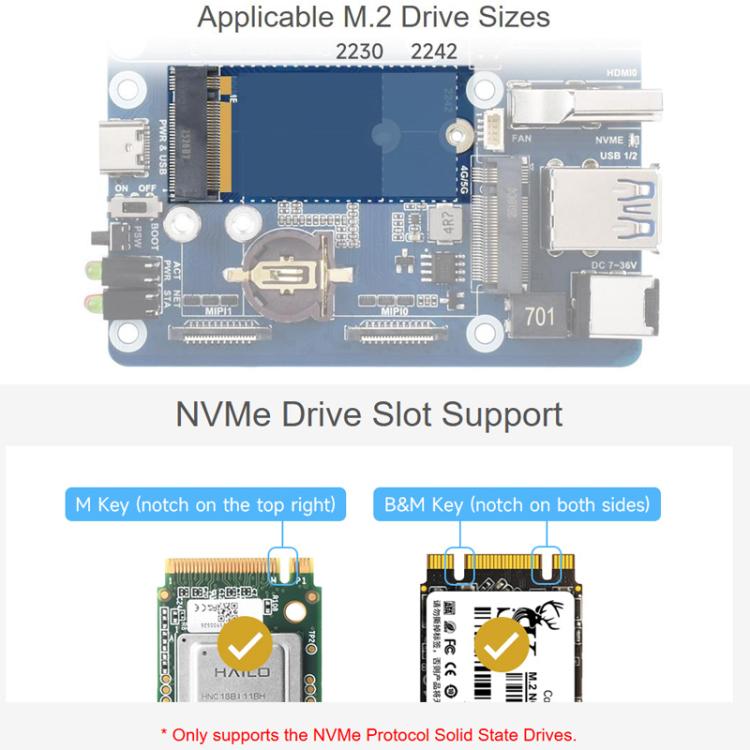

- M.2 M KEY (PCle Gen2/3 x 1)

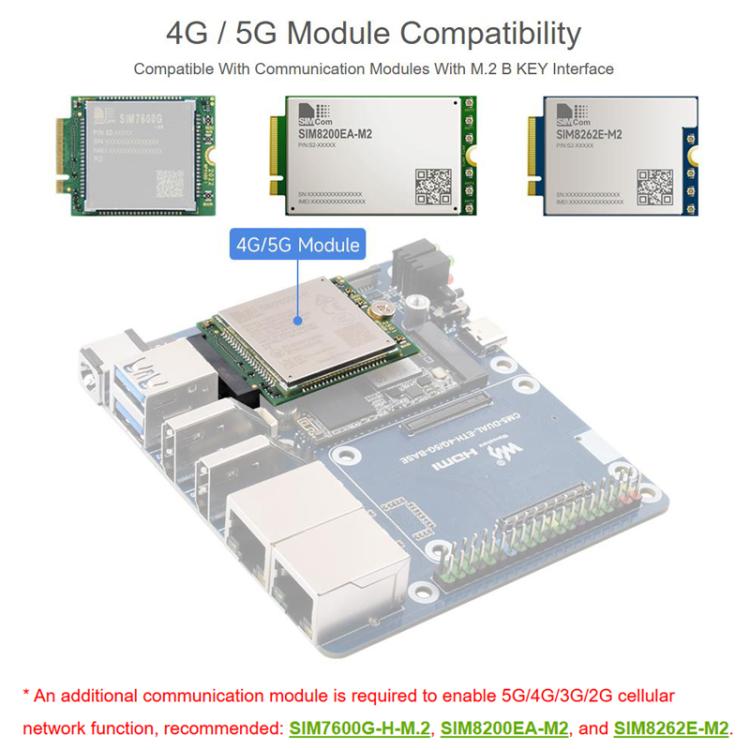

- M.2 B KEY, supports access to 4G/5G communication module
- Storage: Onboard Micro SD card slot (for CM5 version without eMMC)
- Fan Interface: 5V, 4PIN JST-SH PWM fan connector
- Power Input:
- 7V - 36V wide voltage (round hole terminal)
- 5V 5A (Type-C)
- Features:
- Supports Compute Module 5 Lite / eMMC series core boards

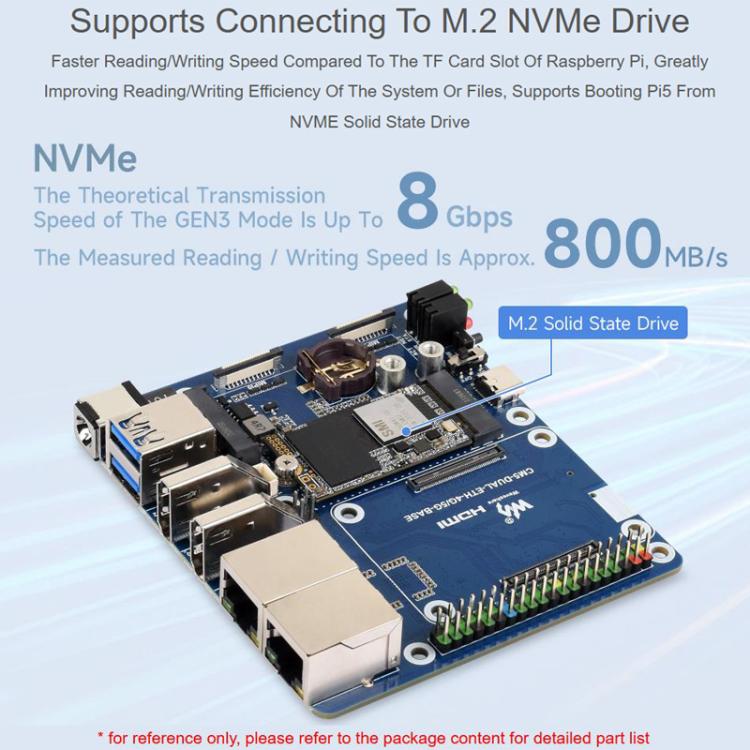

- Supports M.2 NVMe hard disk for improved read and write speed
- Equipped with multiple interfaces for convenience
- Careful hole design for easy port access with clear silkscreen markings
- Shell with reserved vents for better heat dissipation

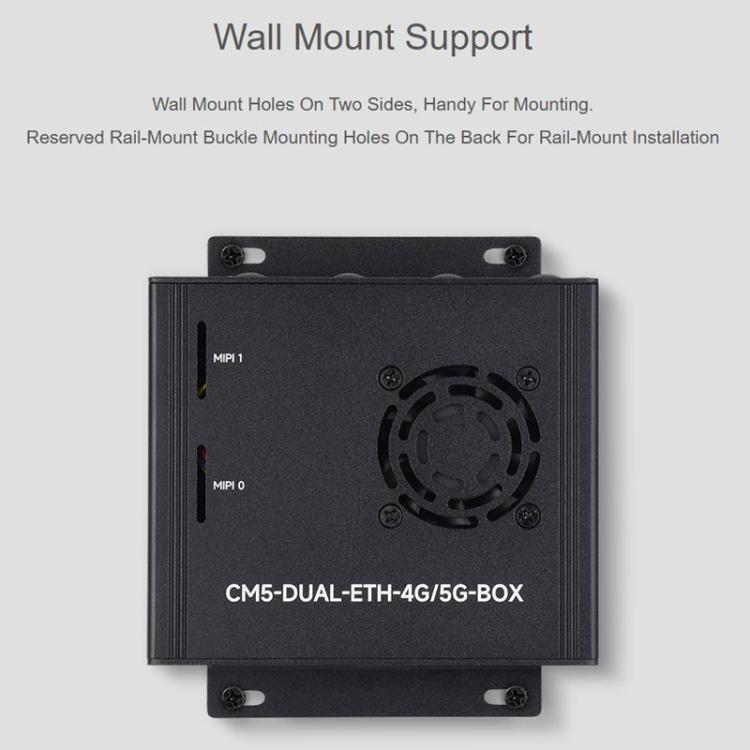

- Wall-mounted holes for convenient installation

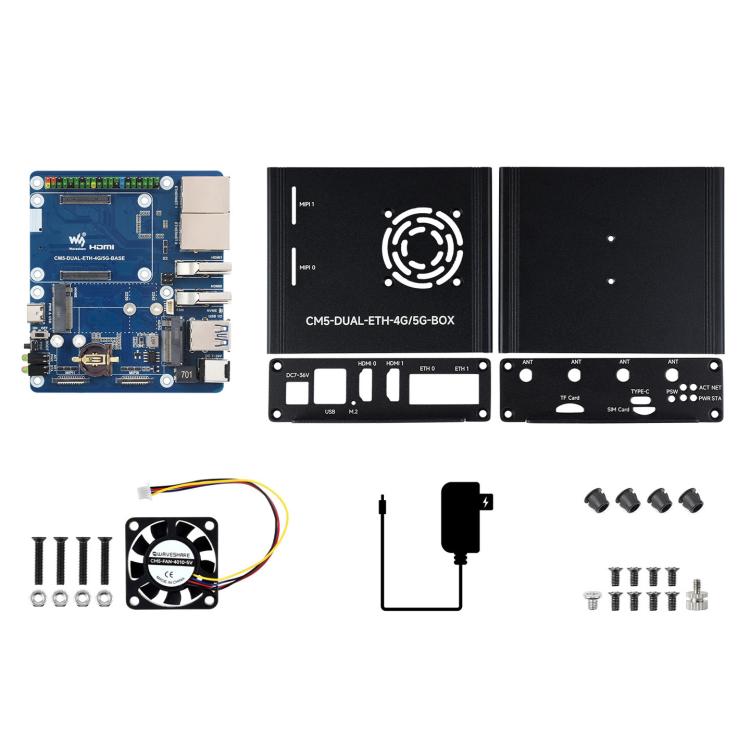

- Packing List:
- Expansion board x 1
- Metal case x 1
- Fan x 1
- Power cord x 1
- Plug x 4
- Screws x 10
