Description

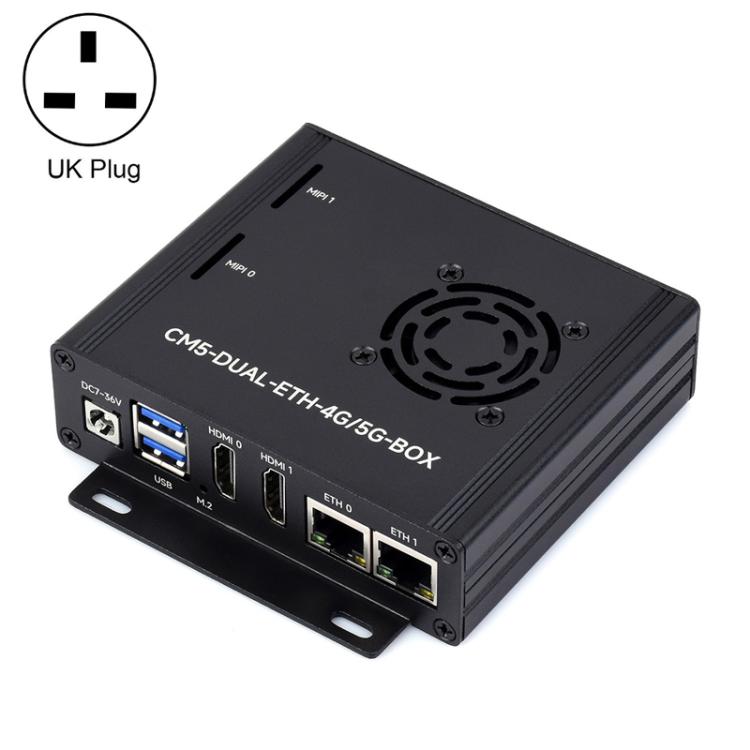

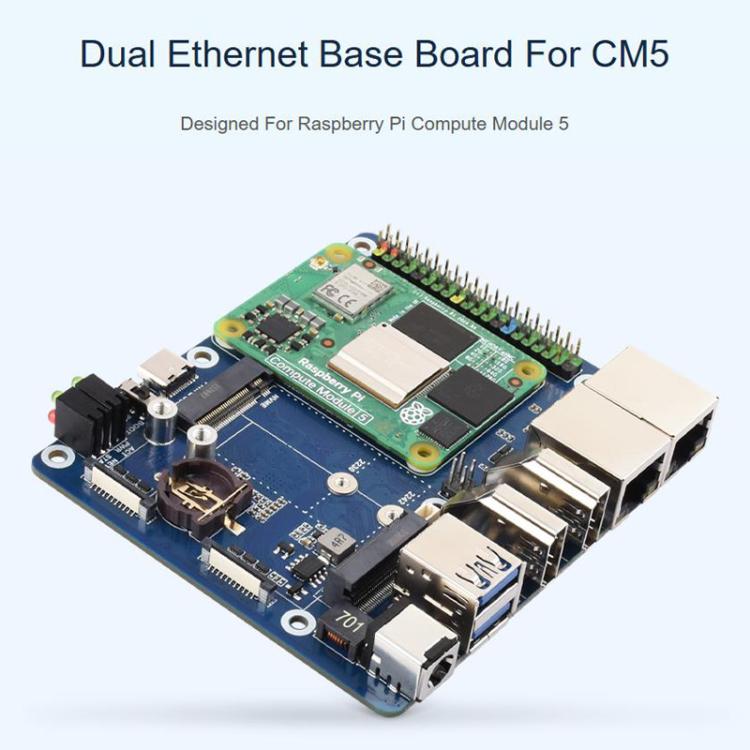

The WAVESHARE Dual Network Port Expansion Board is designed for Raspberry Pi CM5. It enables enhanced networking capabilities with dual network ports and support for 4G/5G communication modules.
- Product Type: Raspberry Pi Accessories
- Compatibility: Raspberry Pi CM5
- Material: Metal and plastic
- Color/Variant: UK Plug
- Networking: 1000M Ethernet RJ45 interface, 2500M Ethernet RJ45 interface
- Connector: Raspberry Pi 40PIN GPIO interface
- USB: USB 3.2 Gen1 x 2
- MIPI: 4-lane MIPI interface x 2 (22PIN 0.5mm FFC connector)
- Video: HDMI connector x 2, supports dual 4K outputs

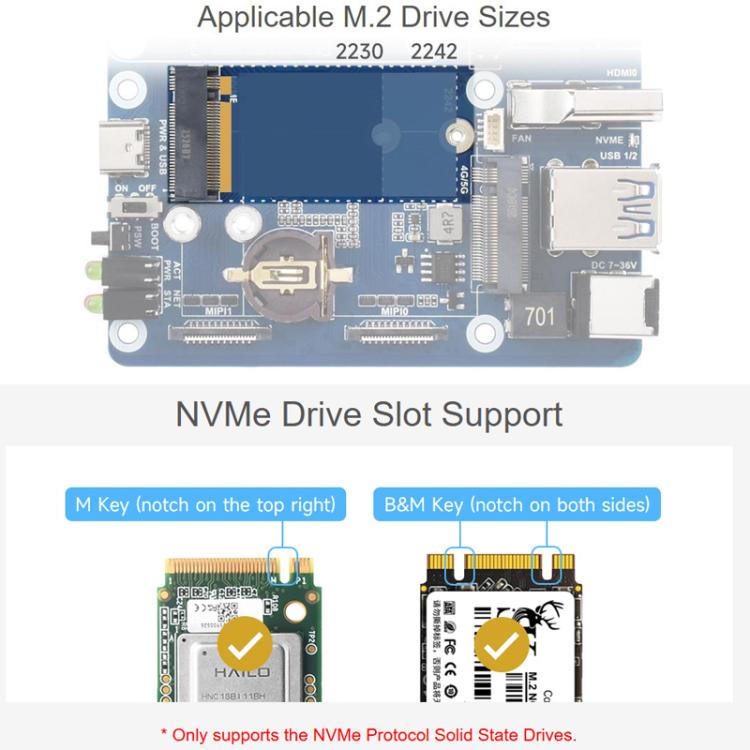

- M.2: M.2 M KEY (PCle Gen2/3 x 1)

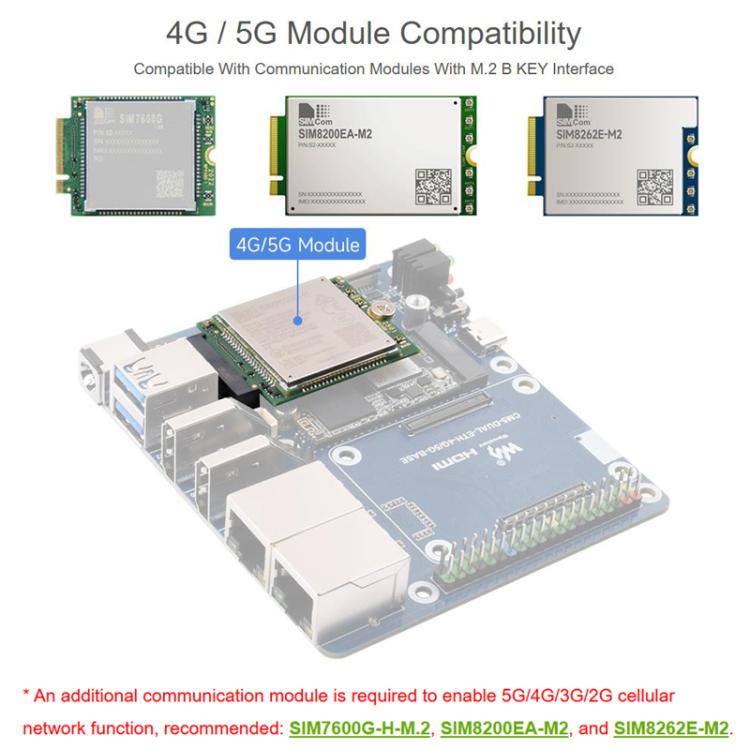

- M.2 (4G /5G): M.2 B KEY, supports access to 4G/5G communication module
- Storage: Onboard Micro SD card slot (for CM5 version without eMMC)

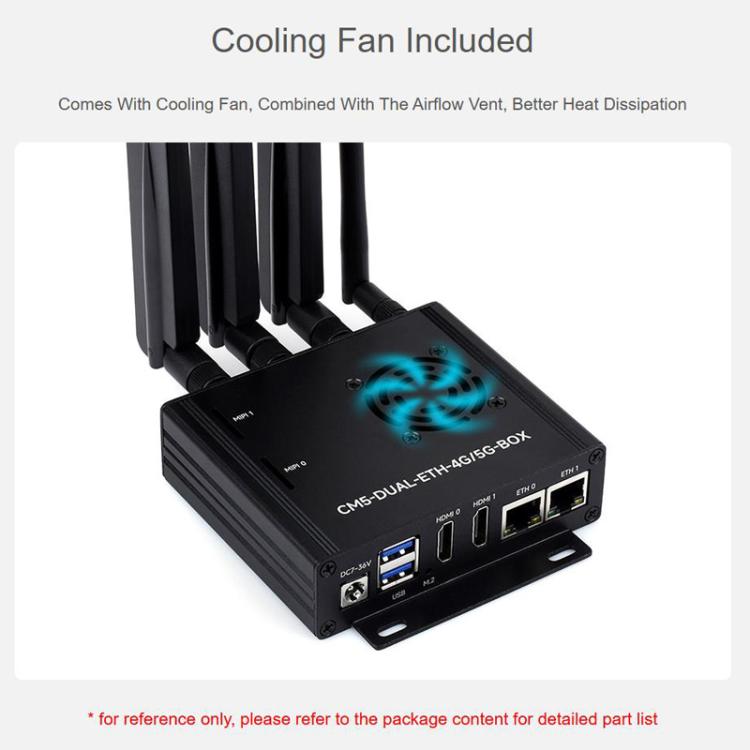

- Fan Interface: 5V, 4PIN JST-SH PWM fan connector
- Power Input: 7V - 36V wide voltage (round hole terminal), 5V 5A (Type-C)
- Size: Base plate: approximately 9.96 x 8.7 cm; Housing: approximately 10.48 x 9 x 2.97 cm
- Packing List: Expansion board x 1, Metal case x 1, Fan x 1, Power cord x 1, Plug x 4, Screws x 10
