Dual DC Current 12V/24V Solar Controller LCD PWM Photovoltaic Power Generation Controller(10A)
Dual DC Current 12V/24V Solar Controller LCD PWM Photovoltaic Power Generation Controller(10A)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R141.81/mo 3 months
- R71.71/mo 6 months
- R37.84/mo 12 months
- From R141.81/month over 3 months, or as low as R37.84/month over 12. Total repayable over 12 months: R454.08. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
Processing time: 1-3 days
Delivery: 6-13 working days
Available To Order
Couldn't load pickup availability
Ships from China (Standard)
Description

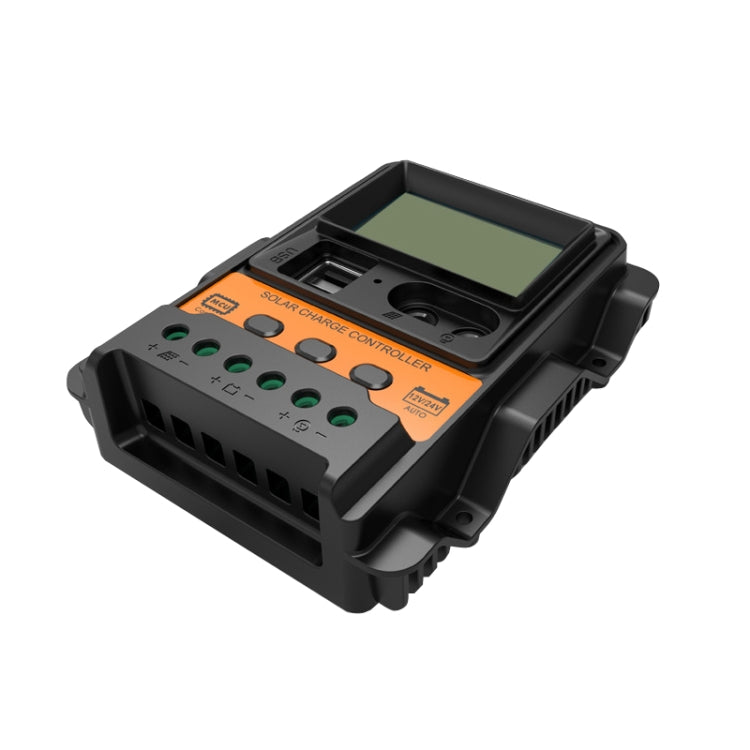

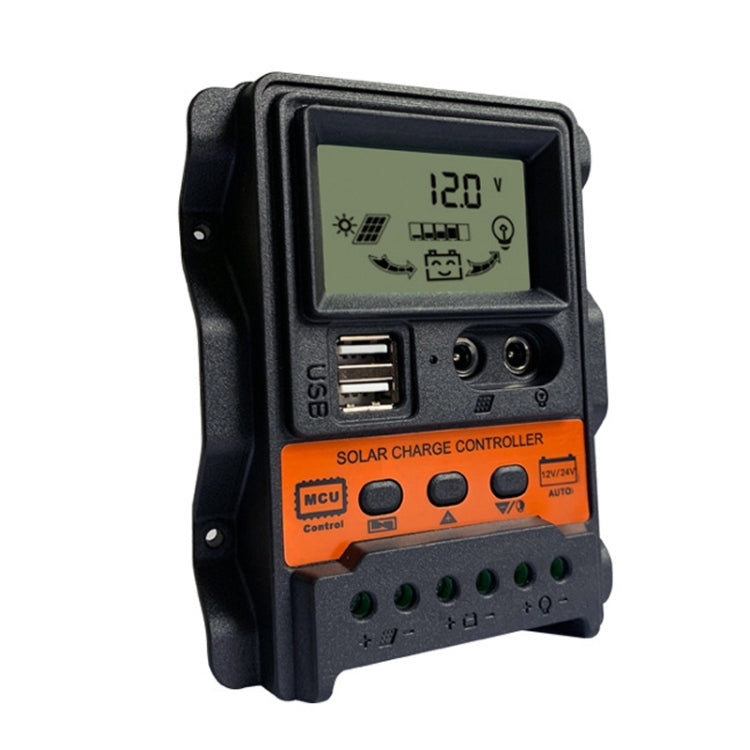

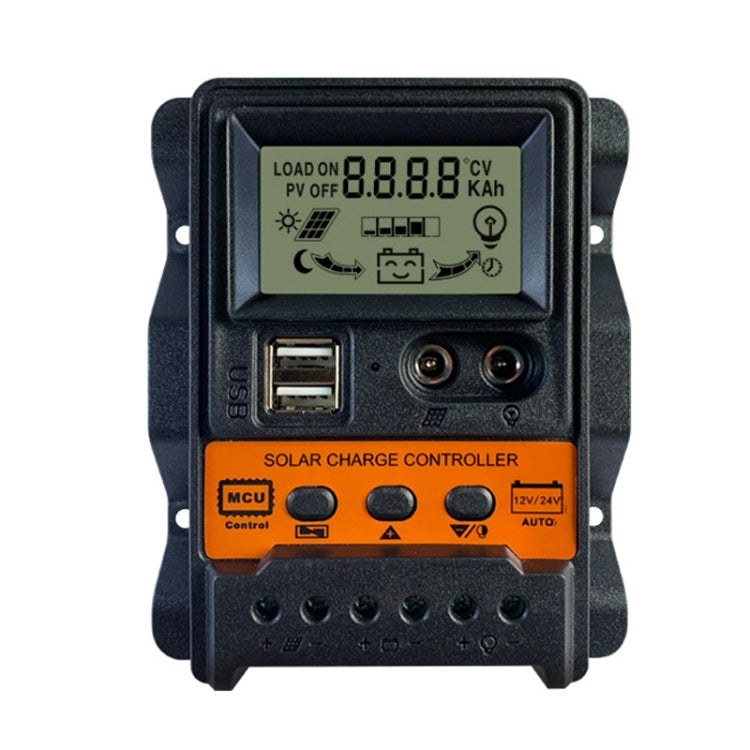

Dual DC Current 12V/24V Solar Controller is designed for photovoltaic power generation systems. It automatically adapts to 12V or 24V systems, making it suitable for various solar applications.
- Product Type: Solar Controller
- Compatibility: 12V/24V systems
- Material: Industrial-grade
- System Voltage: 12V/24V automatic adaptation
- Rated Charging Current: 10A
- Rated Discharge Current: 10A
- Photovoltaic Voltage: 23V for 12V battery; 46V for 24V battery
- Boost Charging Voltage: 14.4V
- Float Voltage: 13.7V (default, adjustable)
- Discharge Cut-off Voltage: 10.7V (default value, adjustable)
- Discharge Recovery Voltage: 12.6V (default value, adjustable)
- Charging Recovery Voltage: 13V
- Light-Controlled Light-On Threshold: 8V (with delay)
- Light-Controlled Turn-Off Threshold: 8V (with delay)
- USB Output: 2 USB outputs, 5V/2.5A
- Standby Current: less than 10mA
- Working Temperature: -35 to 60 degrees Celsius
- Size: 125x112x34mm
- Weight: 179g
- Features: Industrial-grade main control chip

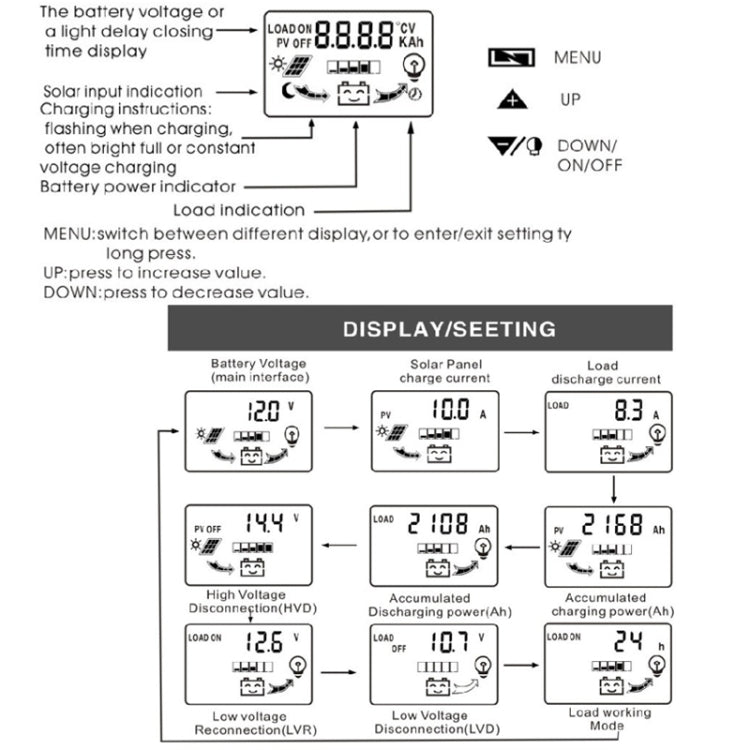

- Large-screen LCD display with charging and discharging current display
- Cumulative power generation and discharge power query
- Temperature display
- Light control + delay control
- Adjustable charging and discharging parameters
- Power-off memory function
- Dual USB output, current up to 2.5A, supports Apple mobile phone charging
- Complete 3-stage charging management
- Built-in over-current, short-circuit protection, open-circuit protection, and reverse connection protection
- Anti-backflow circuit with ultra-low heat generation

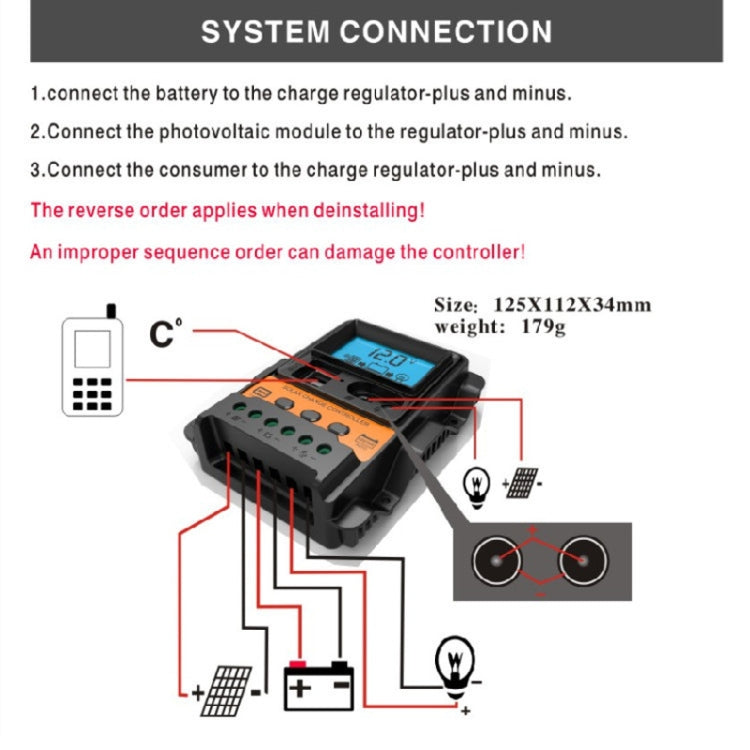

- Installation advice: Connect positive and negative poles of the battery and load as per diagram
- Safe use advice: Suitable for various lead-acid batteries (open, sealed, gel, etc.)
- Charging source: Photovoltaic panels only
- Installation: Ensure proper ventilation and flat surface
Questions about features, compatibility, or warranty? Chat with our local support team!
