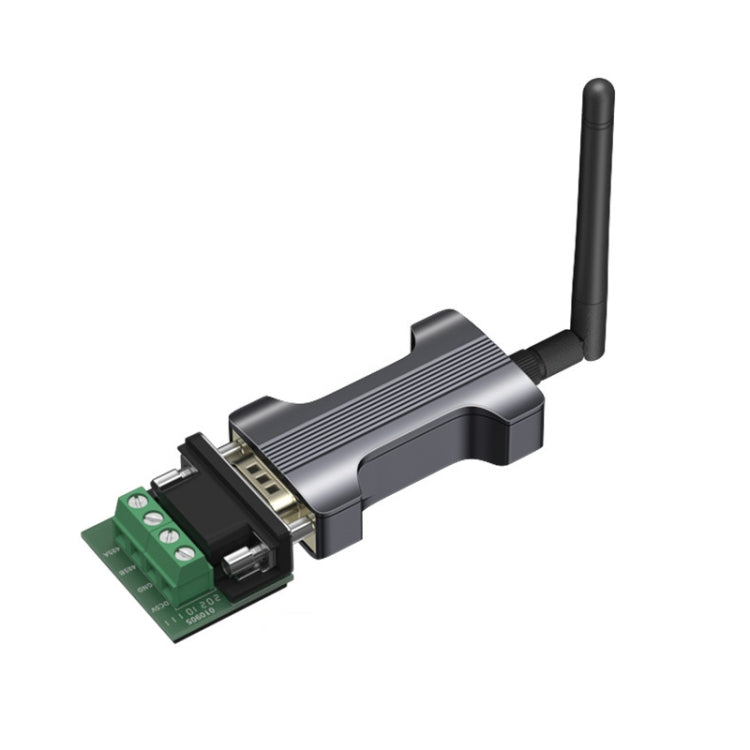

DTECH IOT5060A RS485 To LORA Serial Port Wireless Transmission Module

The DTECH IOT5060A RS485 To LORA Serial Port Wireless Transmission Module is a wireless communication device designed for point-to-point and multipoint data transmission. It is suitable for applications requiring long-distance communication, such as remote sensor monitoring and data collection.

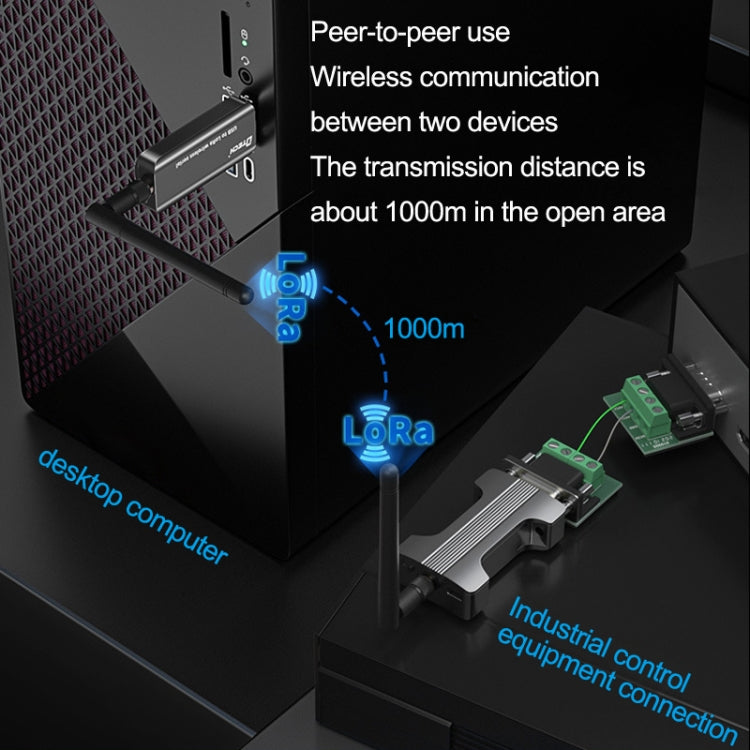

• Communication modes: point-to-point, point-to-multipoint, multipoint-to-multipoint
• Working voltage: DC 5V (powered by micro USB)
• Working current: 50mA at 5V
• Performance design: anti-electromagnetic interference
• Frequency range: 410MHz-441MHz
• Wireless channels: 115
• Receiving sensitivity: -140dBm
• Transmitting power: 20dBm

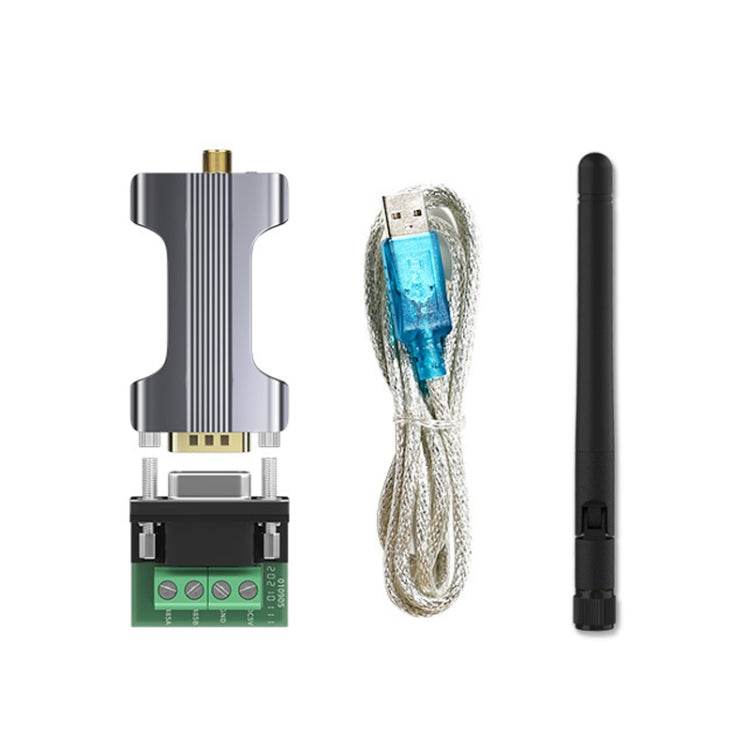

• Antenna connection: external SMA male antenna
• Operating frequency: 433MHz
• Baud rate: 1200-115200bps (default 9600bps)
• Supported data bits: 7, 8, 9
• Stop bits: 1, 1.5, 2
• Check digit: Even, None, Odd

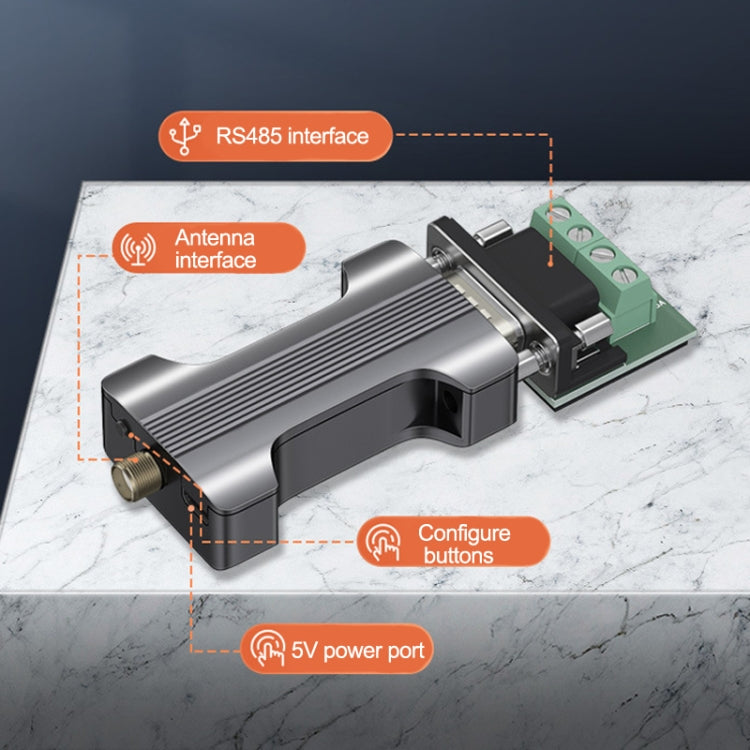

• Interface: RS485
• Indicator lights: data sending (yellow), data receiving (green)
• Supported operating systems: Windows XP, Windows 7, Windows 8, Windows 10, Linux, Mac OS
• Configuration tool: DtechWifiConfig (configuration mode activated by pressing configuration button for 5 seconds)
• Transmission distance: approximately 0-1000 meters

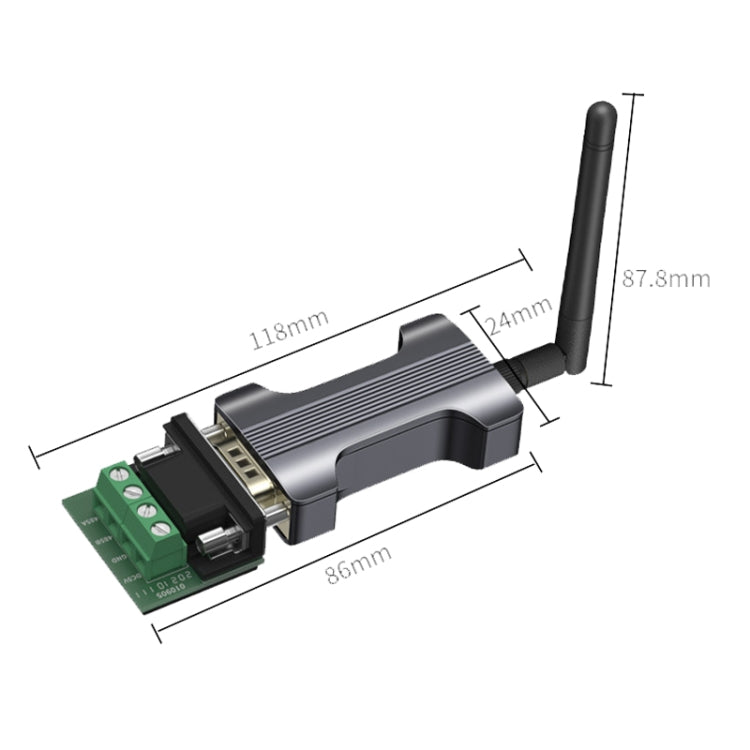

• Dimensions: 11.8 x 2.4 x 8.78 cm
• Weight: approximately 55g

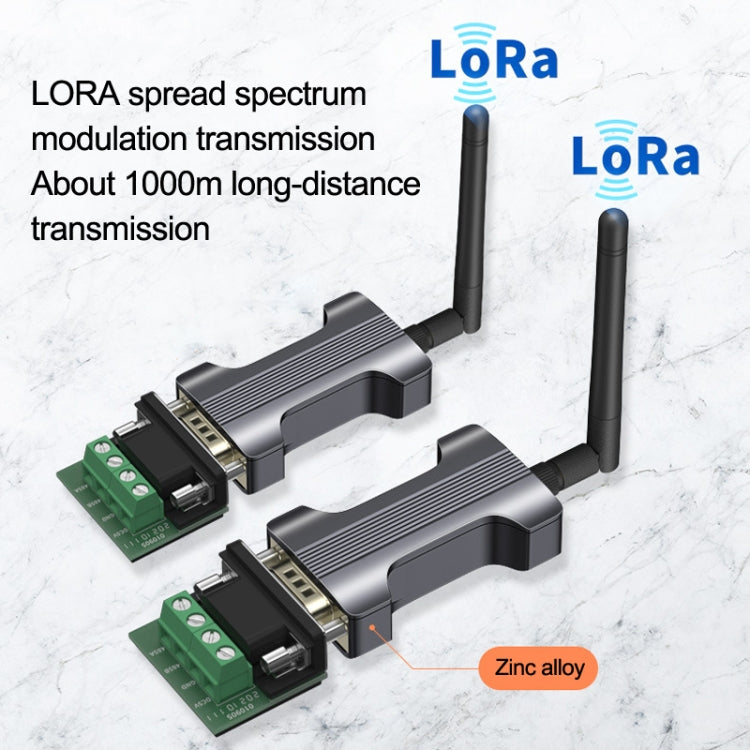

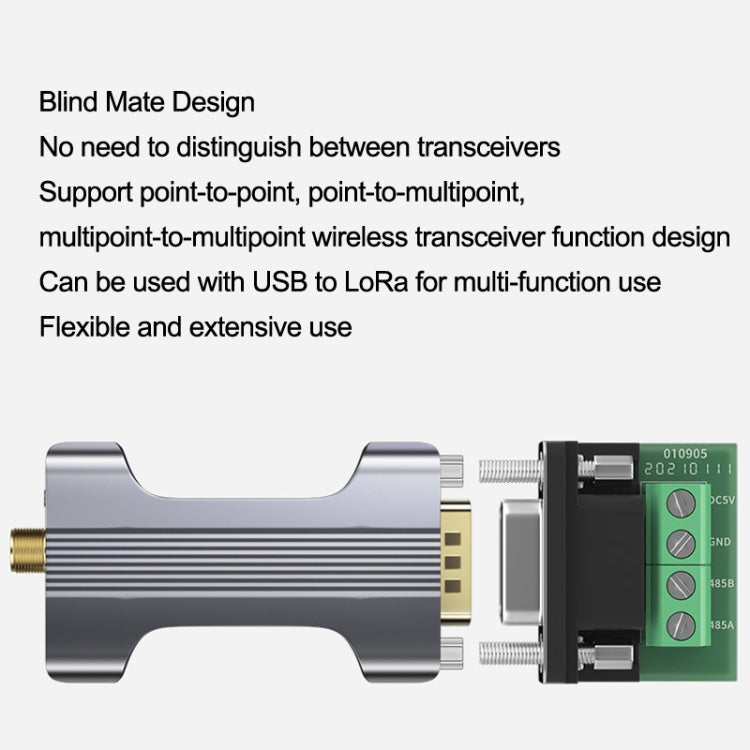

• Features: blind insertion design, USB to LoRa compatibility, LORA spread spectrum modulation
