Description

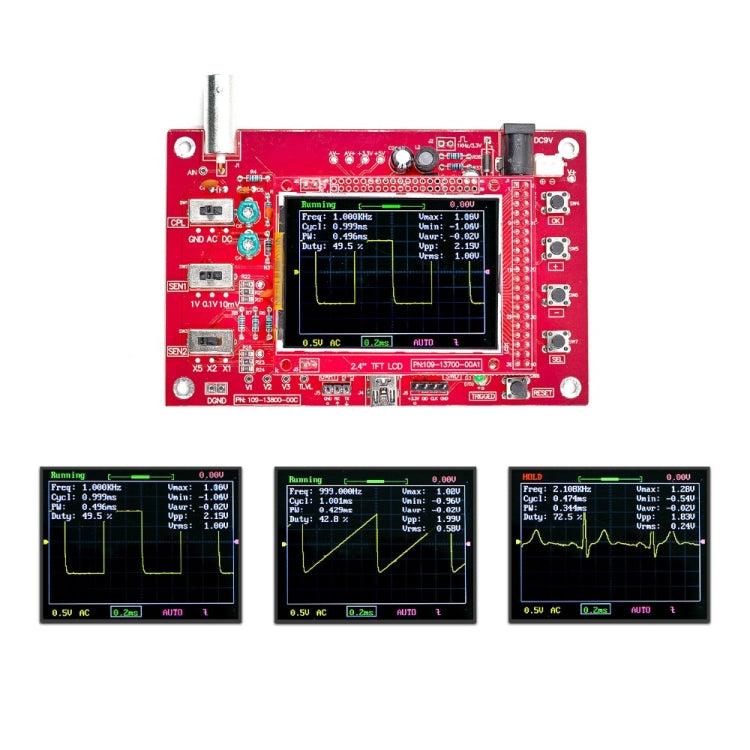

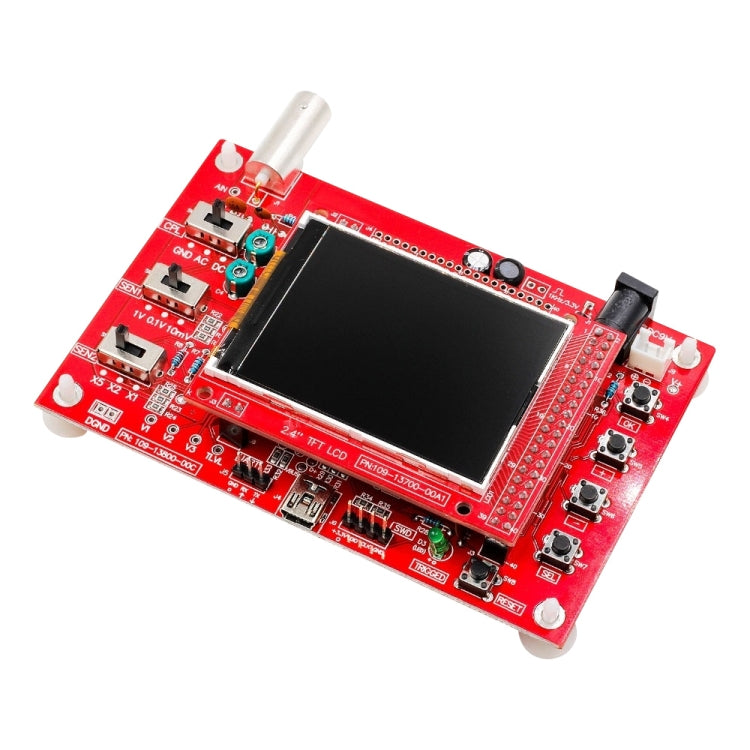

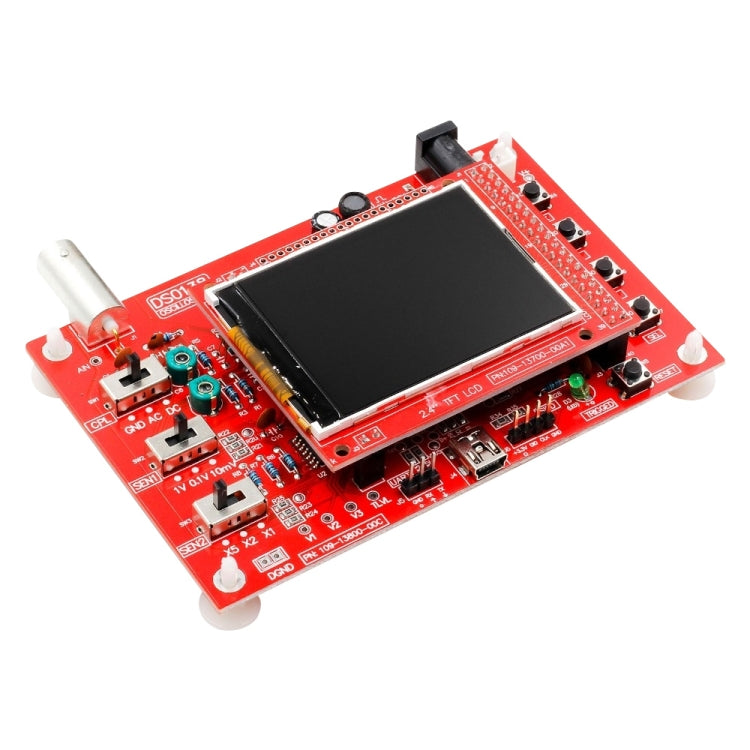

DSO138 Oscilloscope is a full assembled kit designed for testing and development purposes. It can be used in various applications such as measuring waveforms and detecting soldering errors.
- Product Type: LCD & LED Display Module
- Compatibility: DSO138 Oscilloscope
- Material: Durable
- Key Feature: Full assembled kit
- Intended Use: Everyday use
- Category: Arduino & SCM Supplies
- Processor: ARM Cortex-M3 (STM32F103C8)
- Display: 2.4-inch color TFT screen
- Maximum Real-time Sampling Rate: 1Msps
- Accuracy: 12Bit
- Sampling Buffer Depth: 1024 bytes
- Analog Bandwidth: 0-200KHz
- Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
- Input Impedance: 1Mohm
- Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
- Coupling Modes: DC / AC / GND
- Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
- Supply Voltage: DC 9V

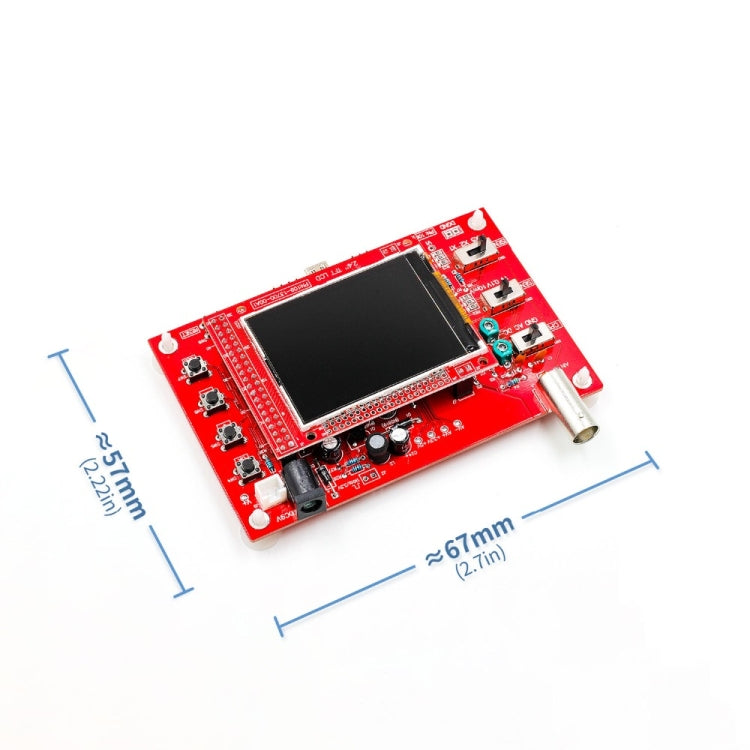

- PCB Size: 117 * 76mm / 4.6 * 3in
- Screen Size: 52 * 40mm / 2 * 1.57in
- Package List: 1 * DSO138 soldered Oscilloscope Kit, 1 * Probe, 3 * User Manual (English)
- Waveform storage function: retains waveform after power off
- Short-circuit and open-circuit detection: identifies soldering errors

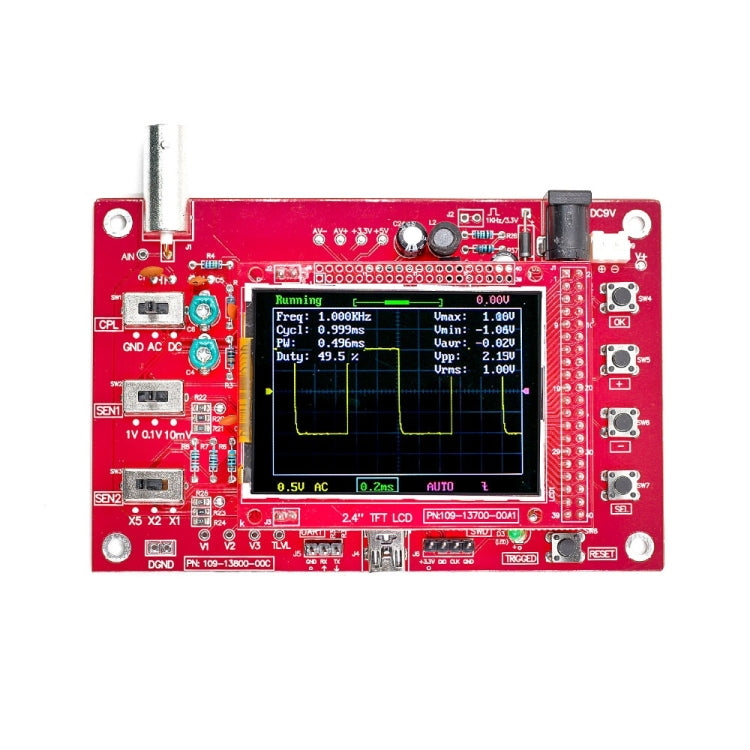

- Waveform parameter digital display: frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values
- Modes: automatic, regular, one-shot, rising or falling edge trigger
- HOLD function: freeze waveform display
- Test signal source: 1Hz / 3.3V square wave
- TFT controller recognition function
