Description

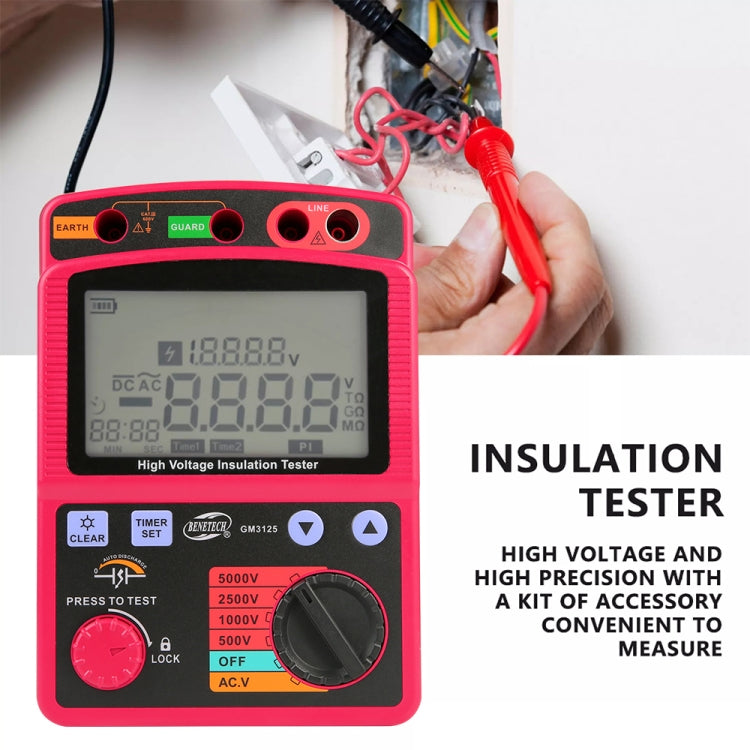

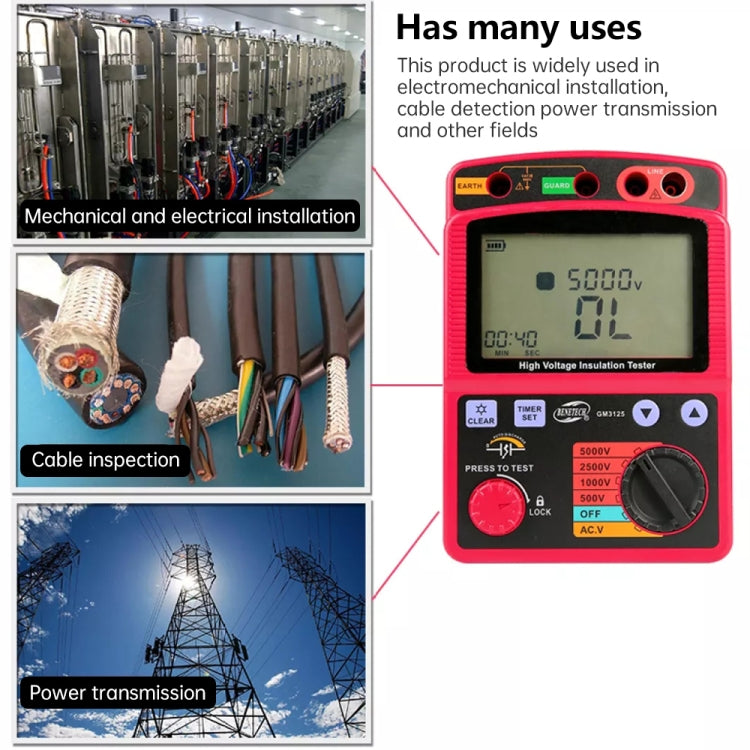

High Voltage Insulation Tester designed to measure insulation resistance in electrical systems. It is suitable for testing insulation in various applications, including electrical maintenance and troubleshooting.
- Auto discharge function for safe operation
- LCD backlight function
- Digital display with maximum 999 counts
- Live circuit warning symbols with audio alerts
- Automatic shutdown after 10 minutes of inactivity
- Set test time function for automatic measurements
- Low battery indicator
- PI test for Polarization Index measurement
- Automatic resistance ratio measurement at two points in time
- External DC power supply (DC12V, 1A power adapter) compatible
- Over range indication: OL mark for insulation resistance, LO mark for voltage
- Auto-ranging feature with upper range shift to 1000 counts
- Sample rate: 0.5-10 times per second
- Operable altitude: ≤ 2000m (indoor use)
- Operating temperature: 0-40°C, humidity ≤ 85%
- Storage temperature: -20-60°C, humidity ≤ 90%
- Overload protection: Insulation resistance AC 1200V / 10s, Voltage AC 720V / 10s
- Voltage resistance: AC 8320 (50/60Hz) for 5 seconds
- Insulation resistance: ≥ 1000M ohms / DC 1000V

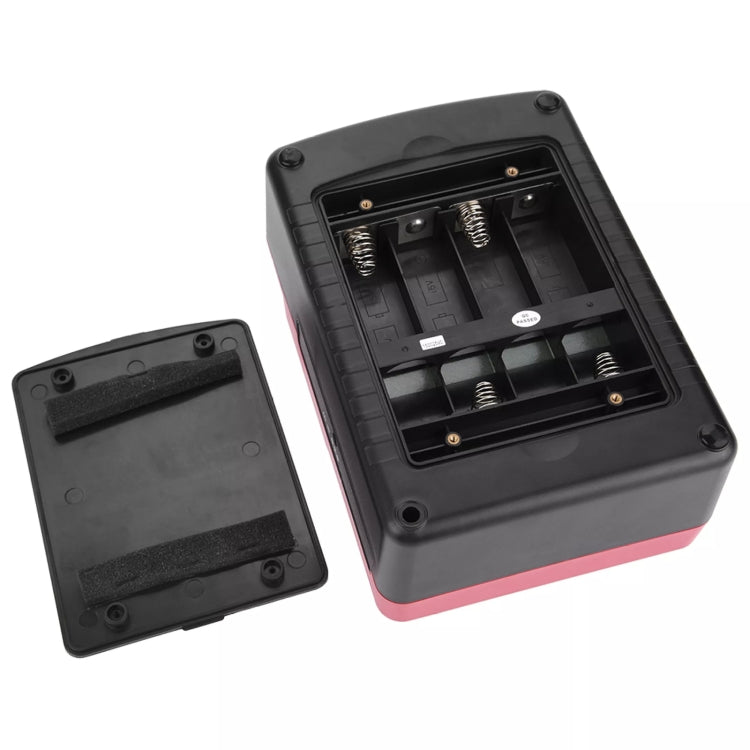

- Power supply: DC 12V (8 x 1.5V LR14 batteries included)
- Dimensions: 153mm x 96mm x 220mm
- Weight: 1032g (without batteries and test wires)
