Description
12V 10A RF Wireless Remote Control Switch is a smart switch designed for 12V systems. It allows users to control various electrical loads remotely, making it suitable for everyday applications.
- Working voltage: DC 12V
- Working frequency: 315MHz / 433MHz
- Contact capacity: ≤ 10A / 250VAC, 10A / 30VDC
- Receiving sensitivity: > -105dB
- Casing: Yes
- Remote control distance: 10-30 meters (theoretical distance without interference)
- Control channels: 1 channel (normally open/normally closed contact)
- Output relay switching value: Controls loads with different voltages below 250V; power supply must be 12V

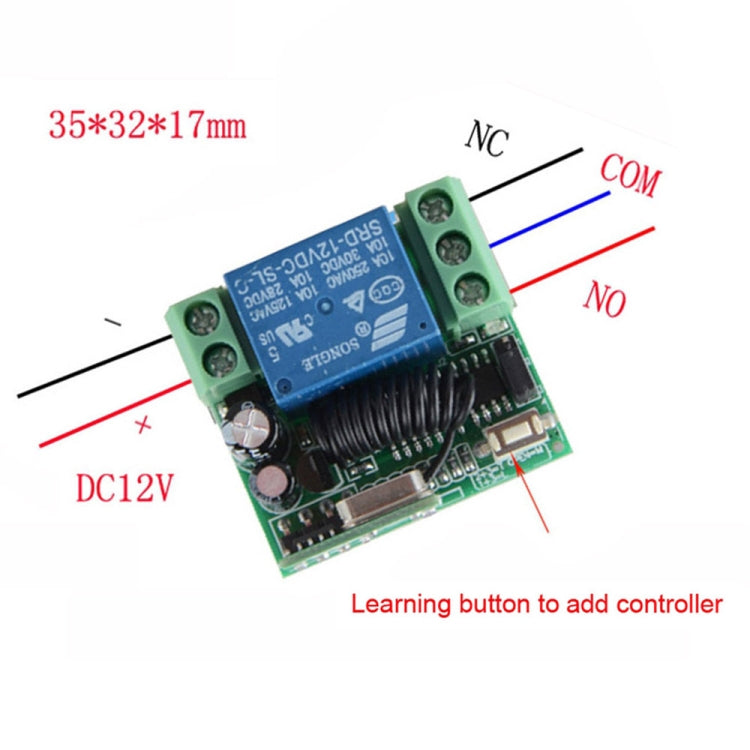

- Dimensions: Circuit board size 35mm x 32mm x 19mm
- Adjustable working modes: Self-locking, interlocking, and inching modes adjustable via pin short circuit

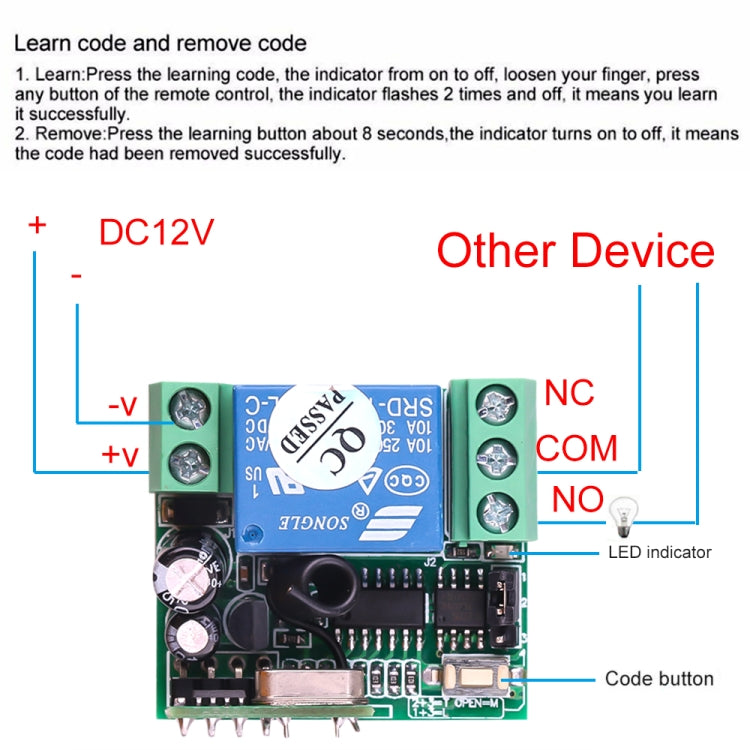

- Learning code pairing: Can pair with same frequency remote controls
