Description

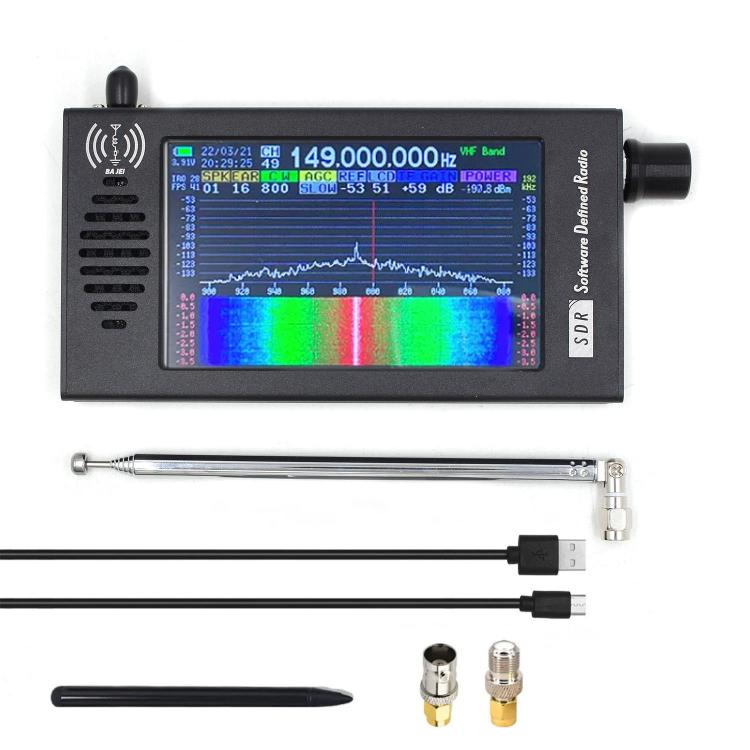

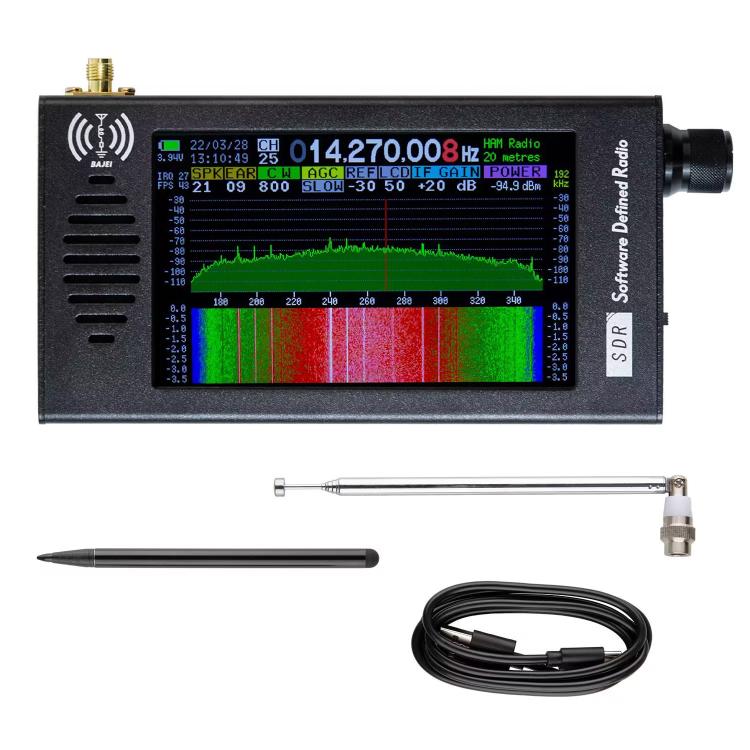

The 100kHz-149MHz FM SDR/DSP2 Radio Receiver is a radio player designed for everyday use. It allows users to receive a wide range of frequencies and modes, making it suitable for various listening preferences.
- Product Type: Radio Player
- Compatibility: 100kHz-149MHz FM SDR/DSP2 receiver
- Material: LCD
- Display Technology: 4.3-inch IPS, 800x480 resolution, DC dimming, high-brightness LCD
- Control Method: Resistive touchscreen + rotary encoder
- Frequency Range: 100kHz – 149MHz
- Operating Modes: CW, AM, SSB (LSB/USB), WFM, FM broadcast stereo (headphones required)
- Frequency Step: 1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
- Spectrum Bandwidth: 192kHz, 128kHz, 64kHz, FFT real-time spectrum display
- Antenna Interface: BNC male connector, 50ohm impedance, input power -20dBm (MAX)
- Reference Crystal Oscillator: TCXO 26MHz
- Audio Interface: Supports standard 3.5mm headphones or CTIA (American standard) interface headphones
- Speaker Power: 3W, 4ohm multimedia speaker
- Charging Port: USB Type-C, 5.0V/2A
- Current Consumption: Approximately 250mA @ 5V
- Battery Capacity: 5000mAh/3.7V, 18.5Wh
- Usage Time: Approximately 10-12 hours, depending on volume and brightness settings
- Channel Storage: 99 preset channels, including station name, frequency, and demodulation method
- RF Preamplifier Gain: Fixed 20dB
- Circuit Type: Zero Intermediate Frequency (ZIF)
- Sideband Suppression: 50dB
- Dimensions: 140 x 74 x 22mm
- Weight: Approximately 315g (main unit only)
